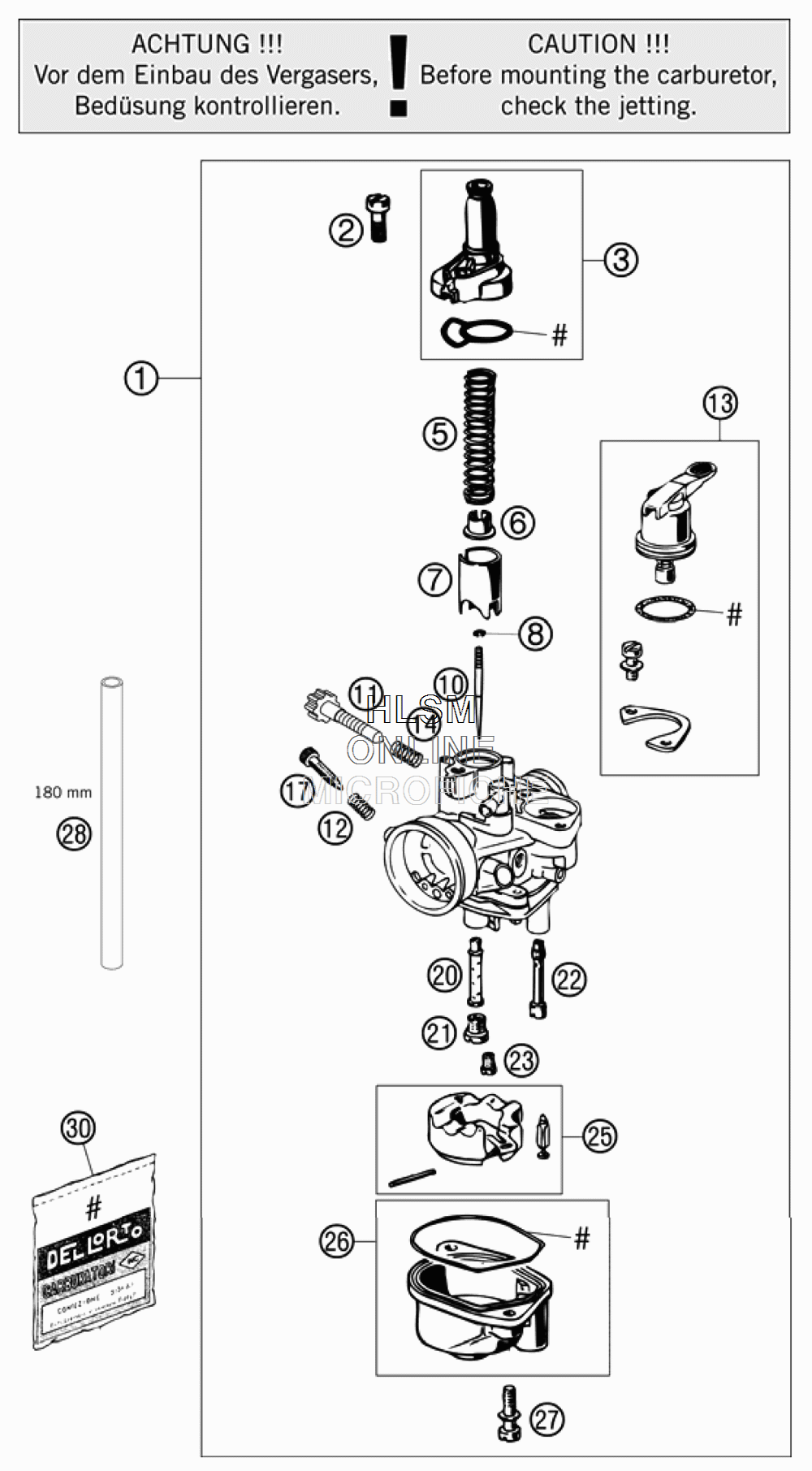

CARBURETOR для Ktm 50 SX MINI - 2012 года выпуска
-
№АртикулНазвание
-
145131001300 CARBURETOR DELLO. PHVA 12XS CHECK THE JETTINGCARBURETOR DELLO. PHVA 12XS CHECK THE JETTING
-
20084050163 CYL.HEAD SCREW DIN0084-M 5X16ACYL.HEAD SCREW DIN0084-M 5X16A
-
345131527000 CARBURETOR COVER DELLOR. 12-14CARBURETOR COVER DELLOR. 12-14
-
545131530000 SPRINGSPRING
-
645131531000 SPRING CAPSPRING CAP
-
745131535000 THROTTLE VALVE 40THROTTLE VALVE 40
-
845131545000 CLAMP SPRINGCLAMP SPRING
-
1045131534010 JET NEEDLE A10JET NEEDLE A10
-
1145131517000 IDLE ADJUST SCREWIDLE ADJUST SCREW
-
1245131516000 SPRINGSPRING
-
1345131548000 STARTING LEVER CPL. DELL.12-14STARTING LEVER CPL. DELL.12-14
-
1445131518000 SPRINGSPRING
-
1745131617000 ADJUST SCREWADJUST SCREW
-
2045131536000 ATOMIZER 211FAATOMIZER 211FA
-
2145131023065 MAIN JET 65 DELLORTOMAIN JET 65 DELLORTO
-
2145131023070 MAIN JET 70 DELLORTOMAIN JET 70 DELLORTO
-
2145131023075 MAIN JET 75 DELLORTOMAIN JET 75 DELLORTO
-
2157031523080 MAIN JET 80MAIN JET 80
-
2159030054000 JET 60 DELLORTO M6X0,75JET 60 DELLORTO M6X0,75
-
2245131551060 STARTING JET 60STARTING JET 60
-
2345131507035 IDLING JET 35IDLING JET 35
-
2345131507038 IDLING JET 38IDLING JET 38
-
2345131507045 IDLING JET 45IDLING JET 45
-
2545131509000 FLOAT CPL.FLOAT CPL.
-
2645131511000 FLOAT BOWL DELLORTO 12-14FLOAT BOWL DELLORTO 12-14
-
270084040203 CYL.SCREW DIN0084-M 4X20 ACYL.SCREW DIN0084-M 4X20 A
-
2858307016001 FUEL HOSE VITON 6X1,5 PER/MFUEL HOSE VITON 6X1,5 PER/M
-
3045131599000 GASKET SET DELLORTO 12-14 PHVAGASKET SET DELLORTO 12-14 PHVA
