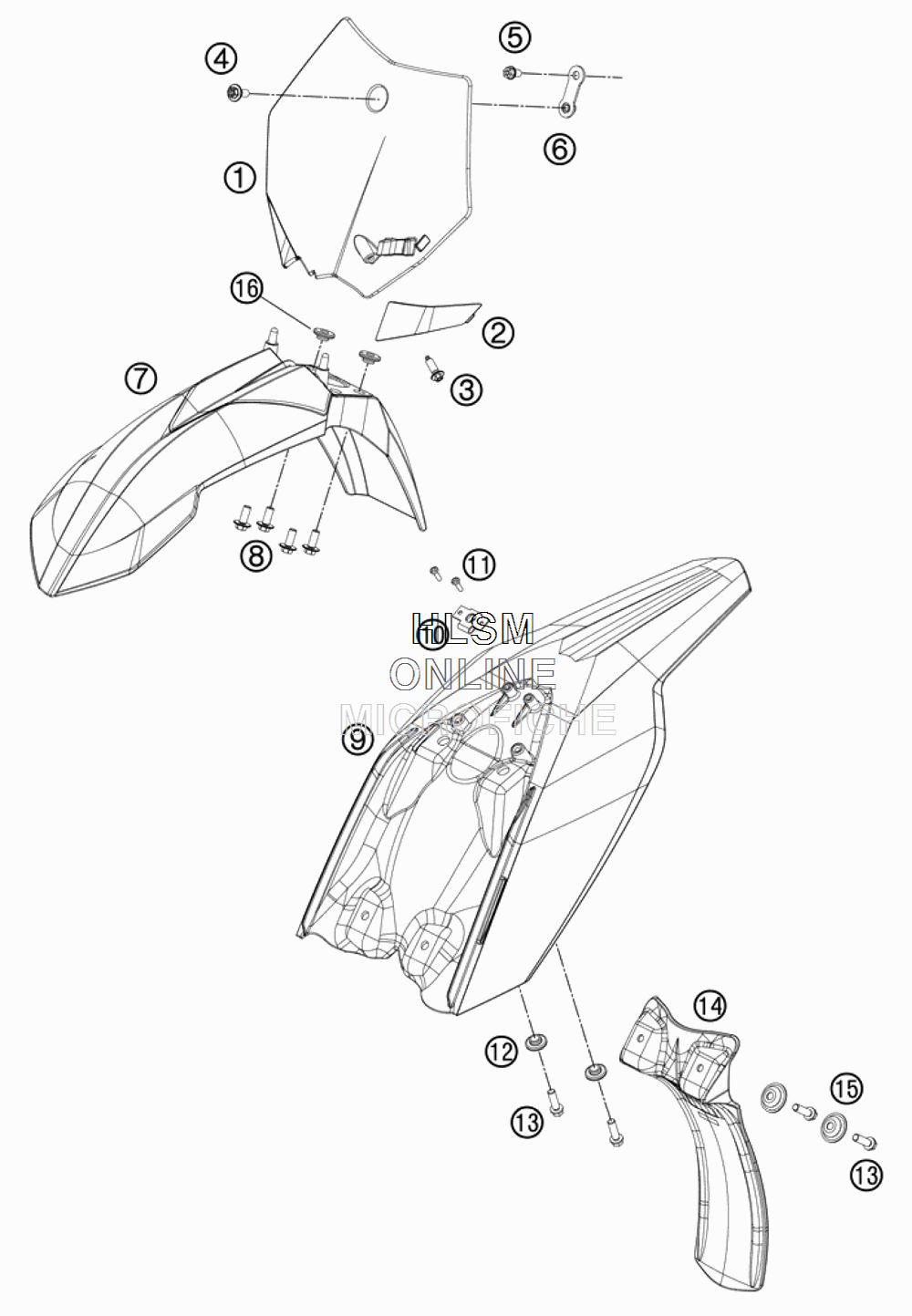

MASC FENDER для Ktm 50 SXS - 2012 года выпуска
-
№АртикулНазвание
-
14520800700028 START NUMBER PLATESTART NUMBER PLATE
-
24520802200030 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
30017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
40024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
50025060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
645208007050 RETAINING PLATE F. NUMBER PL.RETAINING PLATE F. NUMBER PL.
-
745208010000X4 FENDER FRONTFENDER FRONT
-
80024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
94520801300028 REAR PART WHITEREAR PART WHITE
-
1045007040050 QUICK RELEASE LATCHPLATEQUICK RELEASE LATCHPLATE
-
110981350163 SHEET MET.SCR.DIN7981- 3,5X16SHEET MET.SCR.DIN7981- 3,5X16
-
1254808020000 SPACER BUSHINGSPACER BUSHING
-
130025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
1445206010000 SPLASH PROTECTIONSPLASH PROTECTION
-
1572210079000 BUCKETBUCKET
-
1650213161000 COLLAR BUSHINGCOLLAR BUSHING
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURATOR
- CLUTCH
- CLUTCH COVER
- CONVERSION KIT 50 SXS
- COOLING SYSTEM
- CRANKSHAFT PISTON
- CYLINDER CYLINDER HEAD
- DECAL
- ENGINE CASE
- EXHAUST SYSTEM
- FRAME
- FRONT FORK DISASSEMBLED
- FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- HAND BREAK CYLINDER
- HANDLEBAR CONTROLS
- IGNITION SYSTEM
- KICK STARTER
- • MASC FENDER
- MONOSHOCK
- MONOSHOCK DISASSEMBLED
- REAR BRAKE CONTROL
- REAR WHEEL
- REED VALVE CASE
- SPECIAL TOOLS
- SWING ARM
- TANK SEAT COVER
- TRANSMISSION
- WATER PUMP
