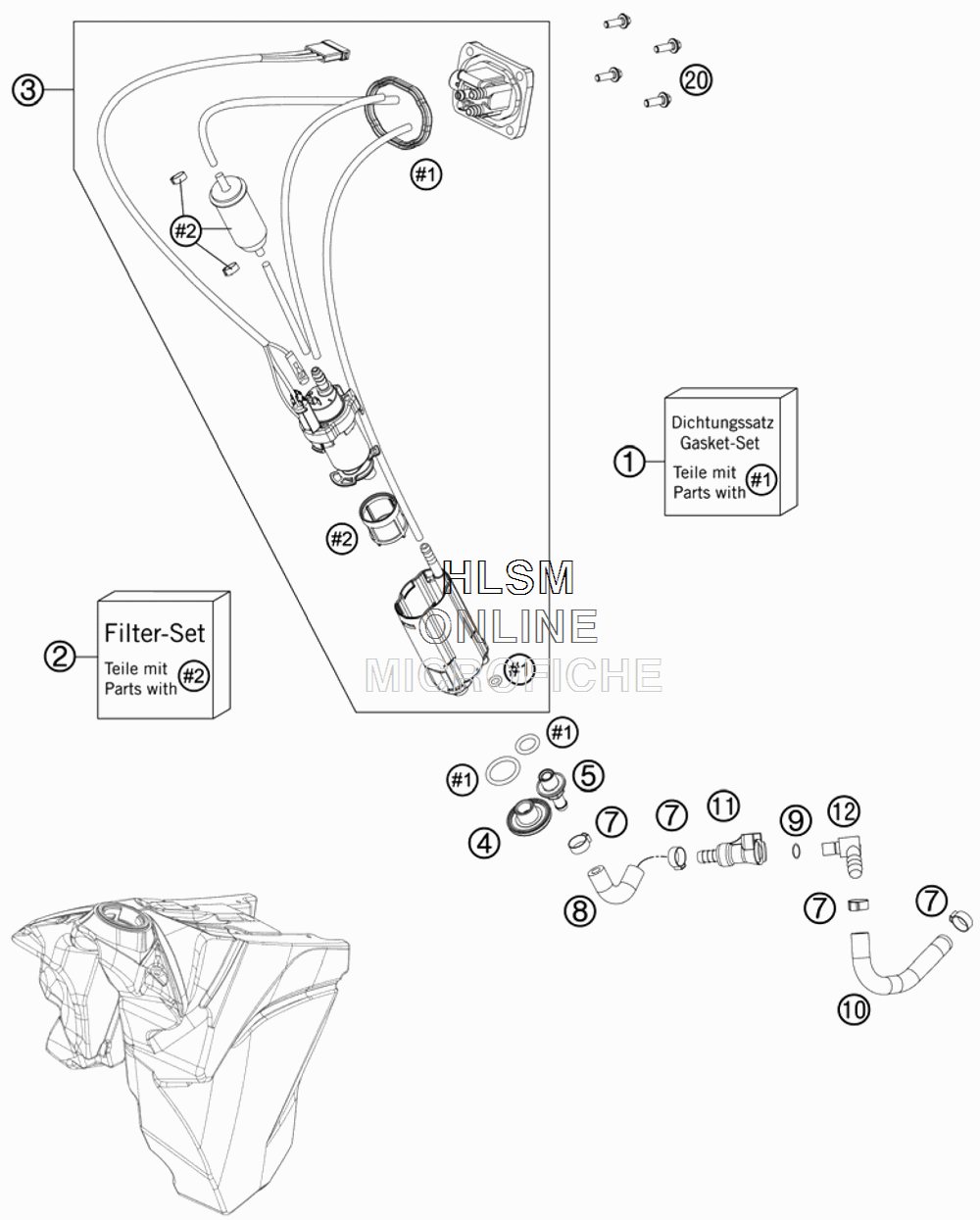

FUEL PUMP для Ktm 500 XC-W - 2012 года выпуска
![](/wa-data/public/shop/sheme/ktm/moto/4cf48c54-48ae-4b0f-8e70-0724538fc820.gif)
-
№АртикулНазвание
-
178107089000 GASKET KITGASKET KIT
-
281207090000 FILTER KITFILTER KIT
-
378107088000 FUEL PUMP CPL.FUEL PUMP CPL.
-
478107088114 NUT FUEL PUMP M12NUT FUEL PUMP M12
-
578107088117 CONNECTOR FUEL PUMPCONNECTOR FUEL PUMP
-
700050157706 VARIABLE ONE-EAR CLAMP 15,7MMVARIABLE ONE-EAR CLAMP 15,7MM
-
877407116000 FUEL HOSE TANKFUEL HOSE TANK
-
958507012000 O-RING VITON F. PLUG CPCO-RING VITON F. PLUG CPC
-
1077407016000 FUEL HOSE PREFORMED THR.BODYFUEL HOSE PREFORMED THR.BODY
-
115850701050030 CLUTCH CPC BLACKCLUTCH CPC BLACK
-
127720701000030 PLUG CPCPLUG CPC
-
200014050163 HH COLLAR SCREW M 5X16 WS=6HH COLLAR SCREW M 5X16 WS=6
