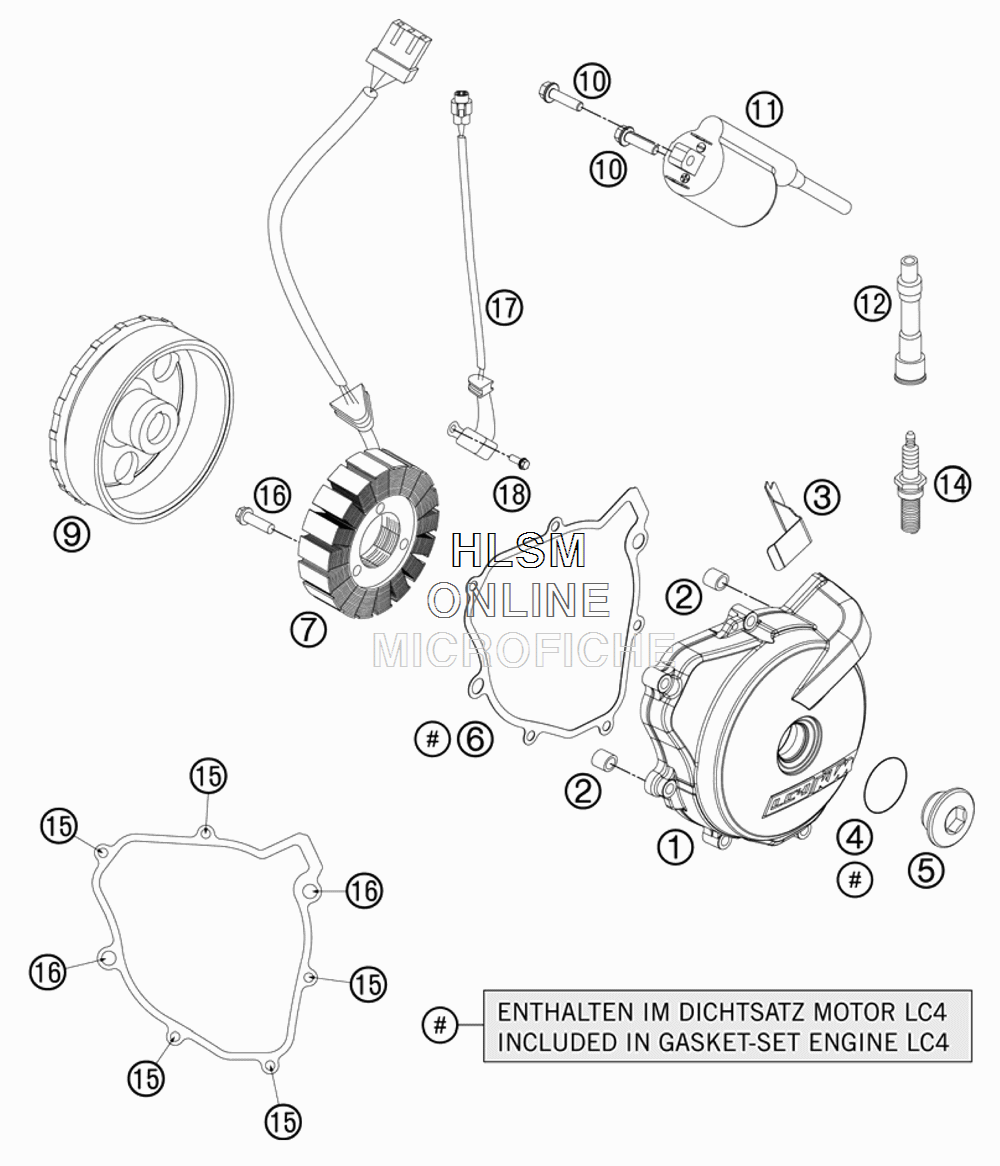

IGNITION SYSTEM для Ktm 690 ENDURO R - 2012 года выпуска
-
№АртикулНазвание
-
175030002000 IGNITION COVERIGNITION COVER
-
249030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
360039040020 CABLE SUPPORT GENERATORCABLE SUPPORT GENERATOR
-
407700240251 O-RING 24X2,5 VITONO-RING 24X2,5 VITON
-
56003009400030 SCREW PLUG M24X1,5 PA 6.6SCREW PLUG M24X1,5 PA 6.6
-
675030040000 IGNITI.COVER GASKETIGNITI.COVER GASKET
-
775039004000 STATORSTATOR
-
975039005100 ROTORROTOR
-
100025050206 HH COLLAR SCREW M5X20 TX30HH COLLAR SCREW M5X20 TX30
-
1175039006000 IGNITION COILIGNITION COIL
-
1275039090000 SPARK PLUG CONNECT.SPARK PLUG CONNECT.
-
1475039093000 SPARK PLUG M12X1,25 LKAR8AI-9SPARK PLUG M12X1,25 LKAR8AI-9
-
150025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
160025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
1775039034000 PULSER COILPULSER COIL
-
1859009062016 SPECIAL SCREW M6X16 W S= 8 10.9SPECIAL SCREW M6X16 W S= 8 10.9
