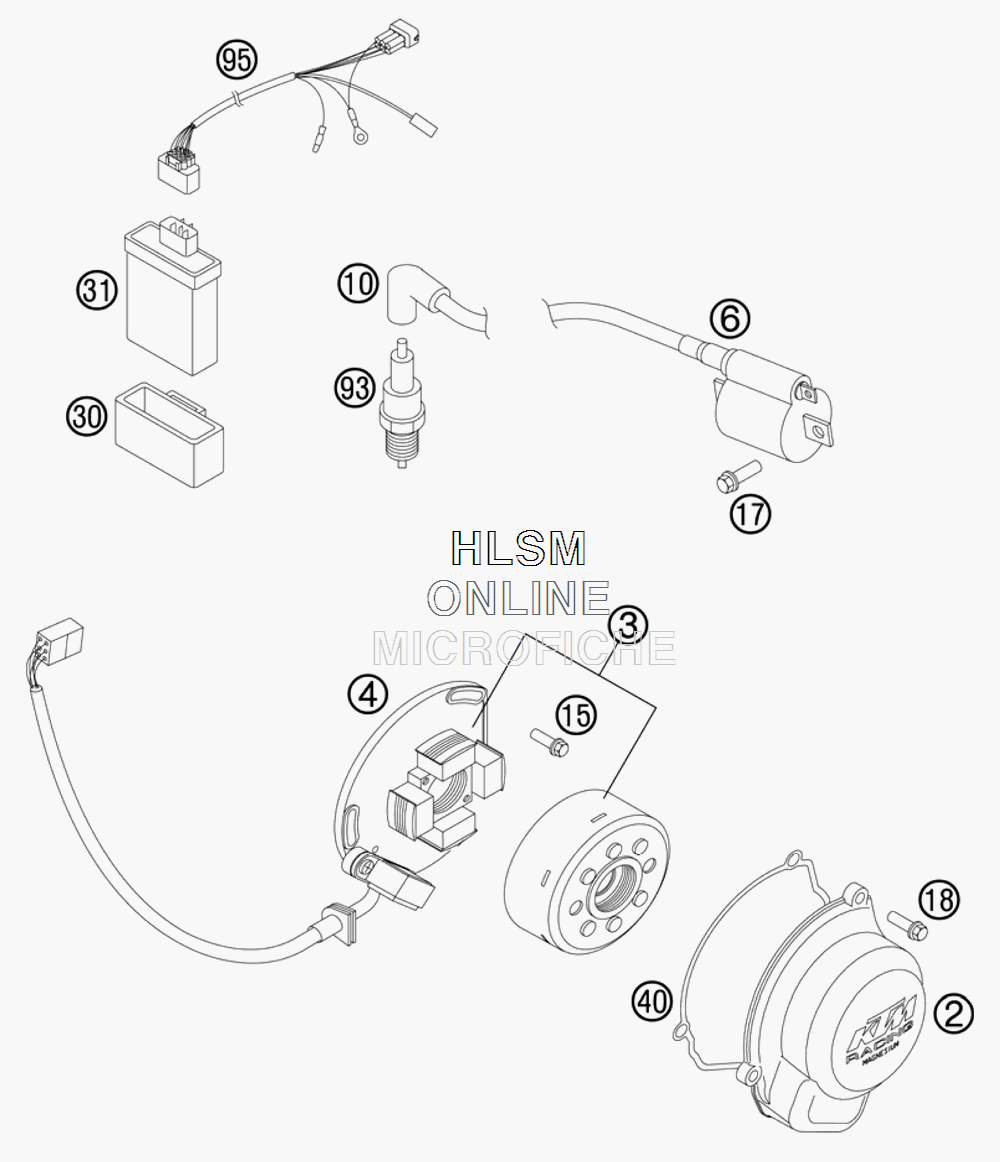

IGNITION SYSTEM для Ktm 85 SX 19/16 - 2012 года выпуска
-
№АртикулНазвание
-
247030002000 IGNITION COVERIGNITION COVER
-
346139002100 IGNITION CPL.IGNITION CPL.
-
446139004000 STATORSTATOR
-
646139006100 IGNITION COIL CPL.IGNITION COIL CPL.
-
1047039090000 SPARK PLUG CAP NGK REINFORC.SPARK PLUG CAP NGK REINFORC.
-
150015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
170015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
180015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
3046139030000 RUBBER BR. DIGI.BOXRUBBER BR. DIGI.BOX
-
3147039031000 CDI UNITCDI UNIT
-
4047030040000 IGNITION COVER GASKETIGNITION COVER GASKET
-
9351539093000 SPARK PLUG BR9ECMVXSPARK PLUG BR9ECMVX
-
9546139095000 WIRING HARNESSWIRING HARNESS
