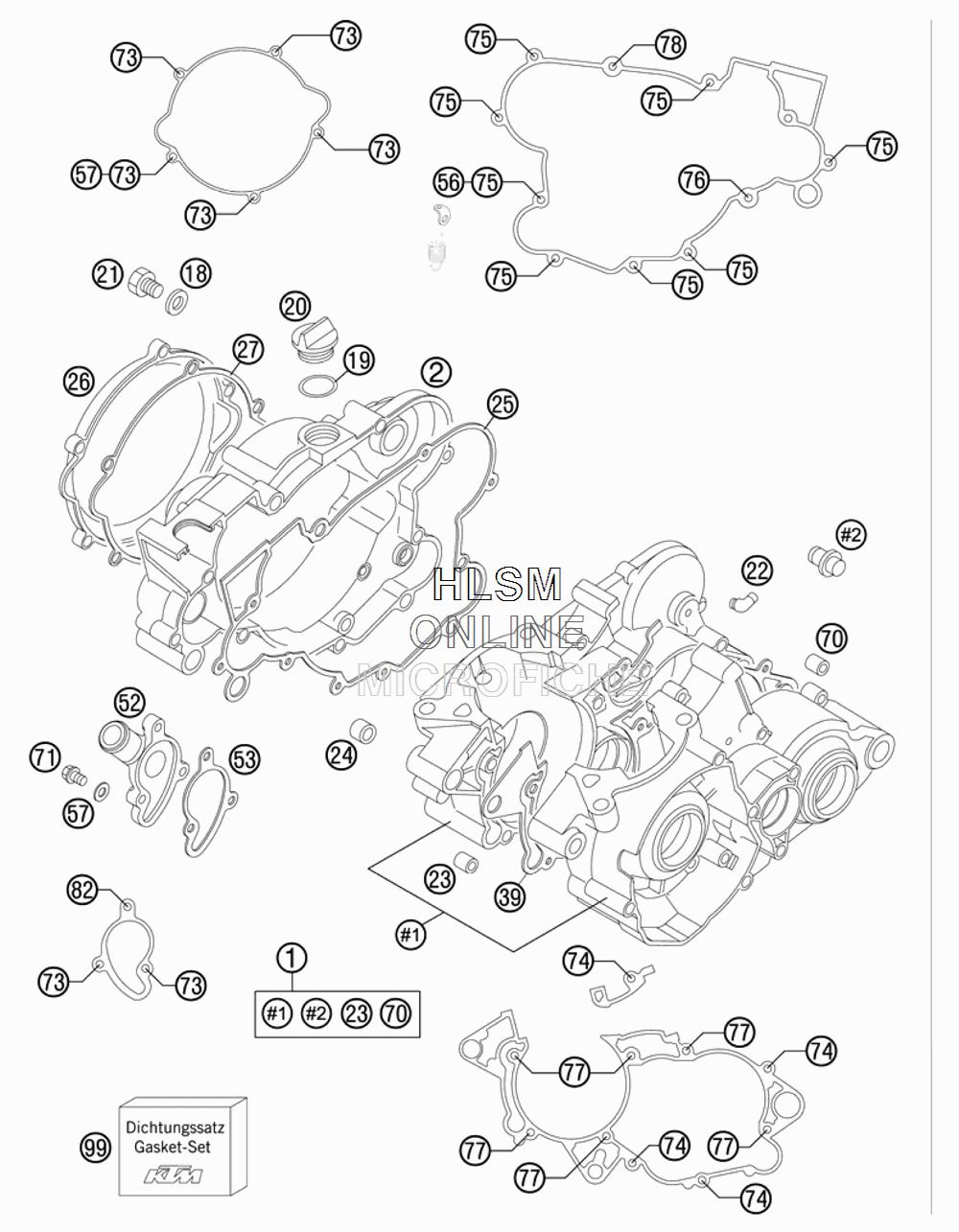

ENGINE CASE для Ktm 85 SX - 2012 года выпуска

№

Артикул

Название
1

47030000144 ENGINE CASE CPL.

ENGINE CASE CPL.

90 710 ₽
2

47030001100 CLUTCH COVER CPL.

CLUTCH COVER CPL.

39 430 ₽
18

0603101420 COPPER GASKET 10,2X14X2 MM

COPPER GASKET 10,2X14X2 MM

560 ₽
19

0770160030 O-RING 16,00X3,00 NBR 70

O-RING 16,00X3,00 NBR 70

470 ₽
20

58030120000 OIL FILLER CAP M24X3 WITH O-R

OIL FILLER CAP M24X3 WITH O-R

1 840 ₽
21

46030021100 OIL DRAIN PLUG M10 WS=13

OIL DRAIN PLUG M10 WS=13

3 620 ₽
22

45130022000 ANGLE PIECE 50CCM LC

ANGLE PIECE 50CCM LC

1 580 ₽
23

47030023100 DOWEL 13X13

DOWEL 13X13

1 200 ₽
24

45130023000 DOWEL 7X9X10

DOWEL 7X9X10

1 260 ₽
25

47030025000 INNER CLUTCH COVER GASKET

INNER CLUTCH COVER GASKET

4 700 ₽
26

47030101100 OUTER CLUTCH OVER

OUTER CLUTCH OVER

19 600 ₽
27

47030027100 GASKET FOR OUTER CLUTCH COVER

GASKET FOR OUTER CLUTCH COVER

3 100 ₽
39

47030039000 GASKET F. ENGINE CASE

GASKET F. ENGINE CASE

4 440 ₽
52

47035052000 WATER PUMP COVER

WATER PUMP COVER

10 550 ₽
53

47035053000 GASKET FOR WATER PUMP COVER

GASKET FOR WATER PUMP COVER

2 920 ₽
56

47003071000 SPRINGHOLDER

SPRINGHOLDER

2 220 ₽
57

0603061001 CU-SEAL RING DIN7603-6X10X1

CU-SEAL RING DIN7603-6X10X1

320 ₽
70

47030023000 DOWEL 14,5X19

DOWEL 14,5X19

1 870 ₽
71

0025060106 HH COLLAR SCREW M6X10 TX30

HH COLLAR SCREW M6X10 TX30

500 ₽
73

0015060203 HH COLLAR SCREW M 6X20 WS=8

HH COLLAR SCREW M 6X20 WS=8

500 ₽
74

0015060253 HH COLLAR SCREW M 6X25 WS=8

HH COLLAR SCREW M 6X25 WS=8

560 ₽
75

0015060303 HH COLLAR SCREW M 6X30 SW=8

HH COLLAR SCREW M 6X30 SW=8

560 ₽
76

0025060356 HH COLLAR SCREW M6X35 TX30

HH COLLAR SCREW M6X35 TX30

560 ₽
77

0025060406 HH COLLAR SCREW M6X40 TX30

HH COLLAR SCREW M6X40 TX30

500 ₽
78

0015060453 HH COLLAR SCREW M 6X45 WS=8

HH COLLAR SCREW M 6X45 WS=8

470 ₽
82

0015060653 HH COLLAR SCREW M 6X65 WS=8

HH COLLAR SCREW M 6X65 WS=8

320 ₽
99

47030099100 GASKET SET CPL.

GASKET SET CPL.

47 310 ₽
