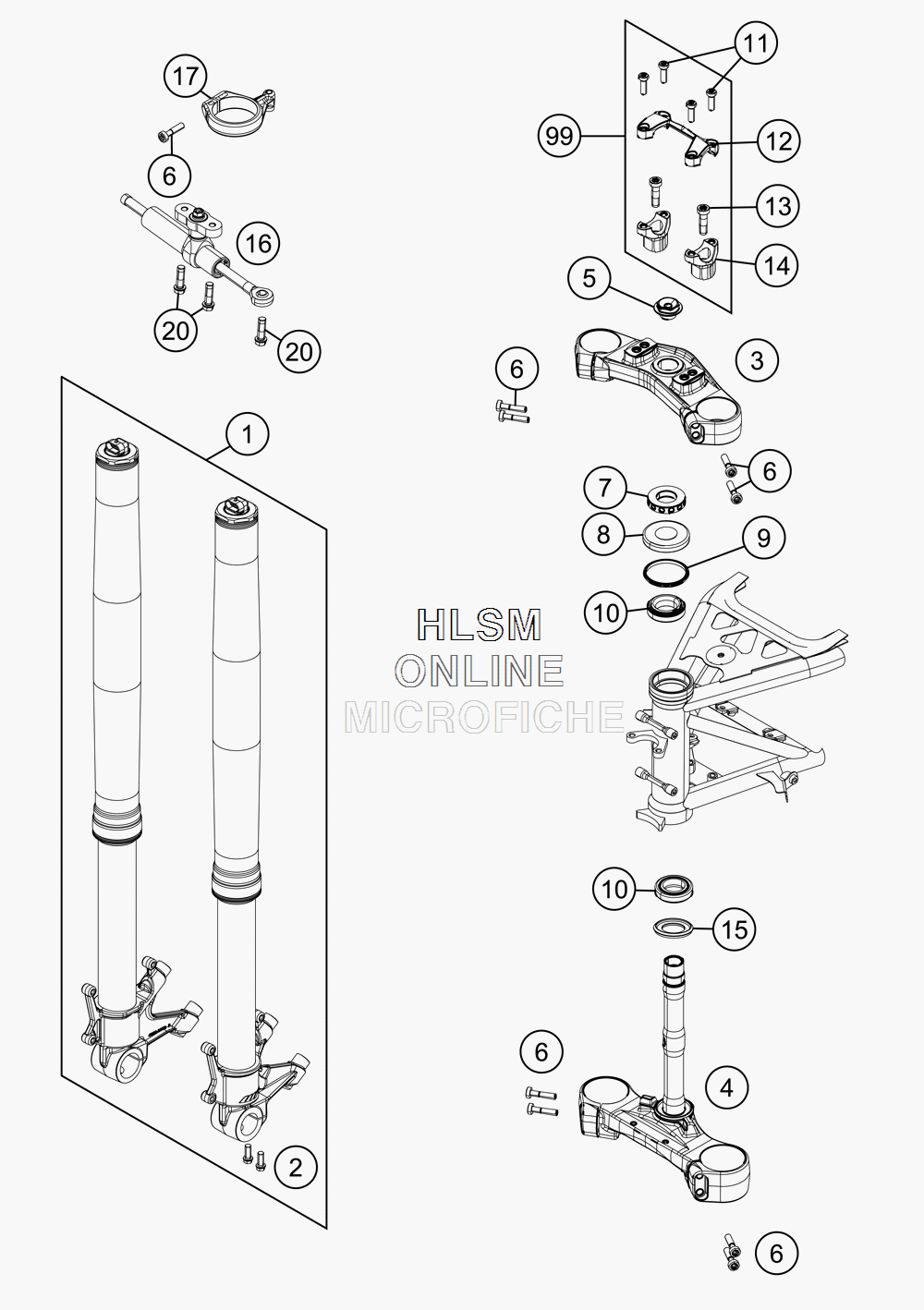

FRONT FORK TRIPLE CLAMP для Ktm 1190 ADVENTURE GRAY - 2013 года выпуска
-
№АртикулНазвание
-
114189M2401 FORK ADVENTURE EDS 2013FORK ADVENTURE EDS 2013
-
20025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
36030103403233S BOTTOM TRIPLE CLAMPBOTTOM TRIPLE CLAMP
-
46030103203233S BOTTOM TRIPLE CLAMP CPL.BOTTOM TRIPLE CLAMP CPL.
-
56030103600001 STEER.HEAD SCREW M22X1,5 SW27STEER.HEAD SCREW M22X1,5 SW27
-
60035080356 AH-COLLAR SCREW M8X35 ISA45AH-COLLAR SCREW M8X35 ISA45
-
757301036000 STEER.HEAD NUT 660SMSTEER.HEAD NUT 660SM
-
861001086000 STEERING HEAD COVERSTEERING HEAD COVER
-
954601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
1054201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
110025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
127720103800030 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
130032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
145940103903730 HANDLEB.SUPP. D=28MM H=37MMHANDLEB.SUPP. D=28MM H=37MM
-
1554601084100 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
1616181N51E STEERING DAMPERSTEERING DAMPER
-
176031200700033S CLAMP STEERING DAMPERCLAMP STEERING DAMPER
-
1860308024000 TRIPLE CLAMP COVER LOWER SIDETRIPLE CLAMP COVER LOWER SIDE
-
190024060136 HH COLLAR SCREW M6X13 TX30HH COLLAR SCREW M6X13 TX30
-
200025080206S HH COLLAR SCREW M8X20 ISA40HH COLLAR SCREW M8X20 ISA40
-
2160311060000 HORN CPL.HORN CPL.
-
250081050121 SCREW FOR PLASTIC K50X12 T20SCREW FOR PLASTIC K50X12 T20
-
9900050000927 HANDLEBAR SUPPORTHANDLEBAR SUPPORT
