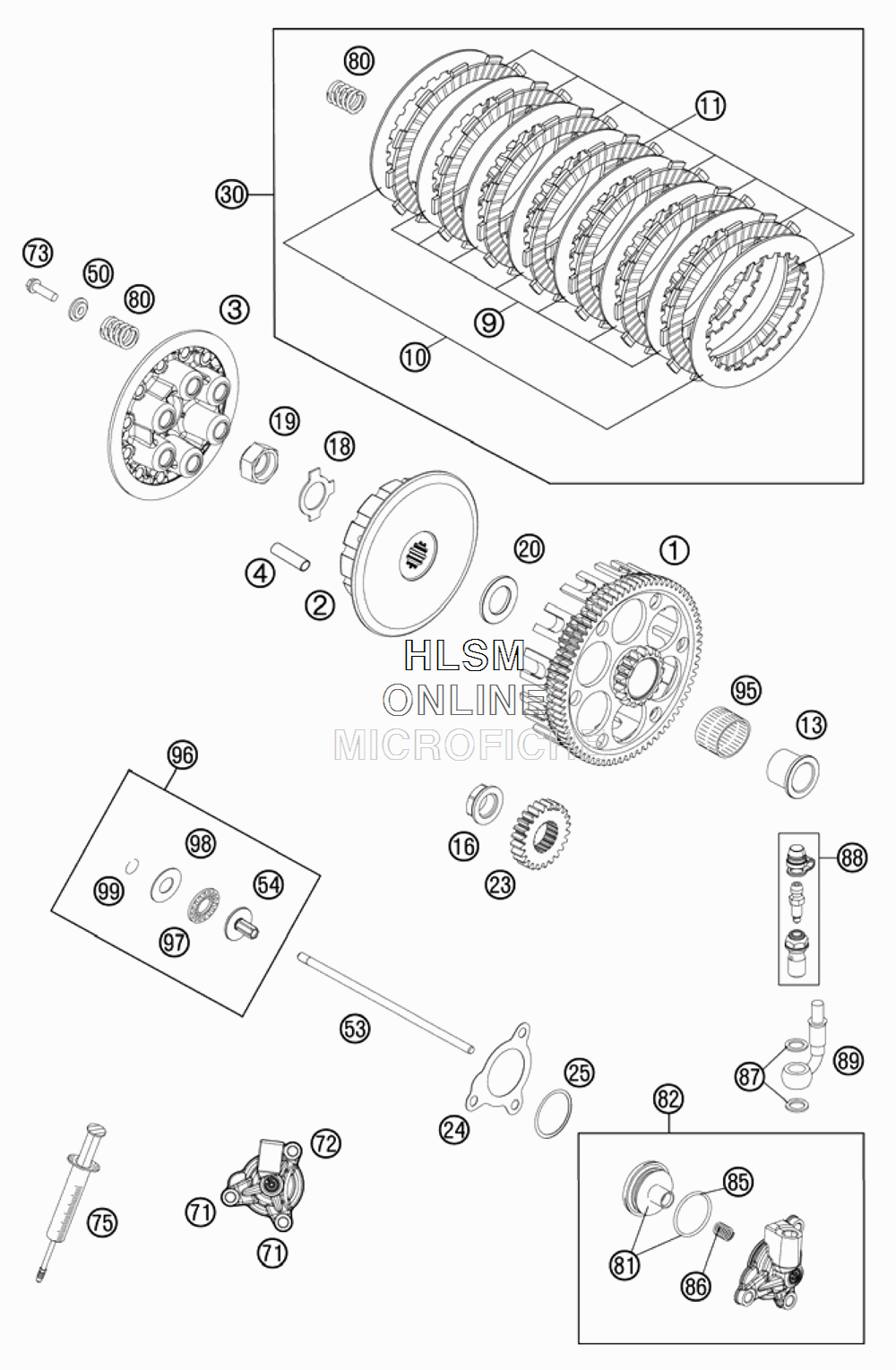

CLUTCH для Ktm 250 SX-F - 2013 года выпуска
-
№АртикулНазвание
-
177232001073 OUTER CLUTCH CPL.OUTER CLUTCH CPL.
-
277232002000 INNER CLUTCH HUBINNER CLUTCH HUB
-
377232003000 PRESSURE PLATEPRESSURE PLATE
-
477232004000 DRIVING SLEEVE D=7,95 L=38DRIVING SLEEVE D=7,95 L=38
-
959032010200 INTERMEDIATE DISC 1,4MMINTERMEDIATE DISC 1,4MM
-
1059032010100 INTERMEDIATE DISC 1MMINTERMEDIATE DISC 1MM
-
1159032011100 LINING DISC 2MMLINING DISC 2MM
-
1377232015000 INNER RINGINNER RING
-
1677230029000 NUT PRIMARY WHEELNUT PRIMARY WHEEL
-
1877232018000 SHEET METAL LOCKSHEET METAL LOCK
-
1977232019000 HEXAGON NUT M18X1,5HEXAGON NUT M18X1,5
-
2077232009100 WASHER 21,8 X 37 X 3WASHER 21,8 X 37 X 3
-
2377232023024 PRIMARY GEAR 24T.PRIMARY GEAR 24T.
-
2477232062000 GASKET F. OUTPUT CYLINDERGASKET F. OUTPUT CYLINDER
-
250770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
3078132010010 CLUTCH KIT 350 SX-F 11-12CLUTCH KIT 350 SX-F 11-12
-
5059032006000 SPRING RETAINER 6,2X12X18X3,6SPRING RETAINER 6,2X12X18X3,6
-
5377232054000 PUSH RODPUSH ROD
-
5478032057000 PRESSURE PIECEPRESSURE PIECE
-
710025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
720025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
730025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
7550329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
8052332005000 CLUTCH SPRING 2,4X40CLUTCH SPRING 2,4X40
-
8177232066000 PISTON CPL.PISTON CPL.
-
8277232061044 OUTPUT CYLINDER CPL.OUTPUT CYLINDER CPL.
-
8554832067000 O-RINGO-RING
-
8654832069000 PRESSURE SPRINGPRESSURE SPRING
-
8742013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
8862513020000 BLEEDER SCREW CPL.BLEEDER SCREW CPL.
-
8954832063000 CLUTCH PIPECLUTCH PIPE
-
9556532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
9678032057044 PRESSURE PIECE CPL.PRESSURE PIECE CPL.
-
9754637097200 AXIAL NEEDLE BEARING AXK 1226AXIAL NEEDLE BEARING AXK 1226
-
9854637098200 AXIAL WASHER AS1226 12X26X1AXIAL WASHER AS1226 12X26X1
-
990993012000 CIRCLIP DIN7993--RW12CIRCLIP DIN7993--RW12
