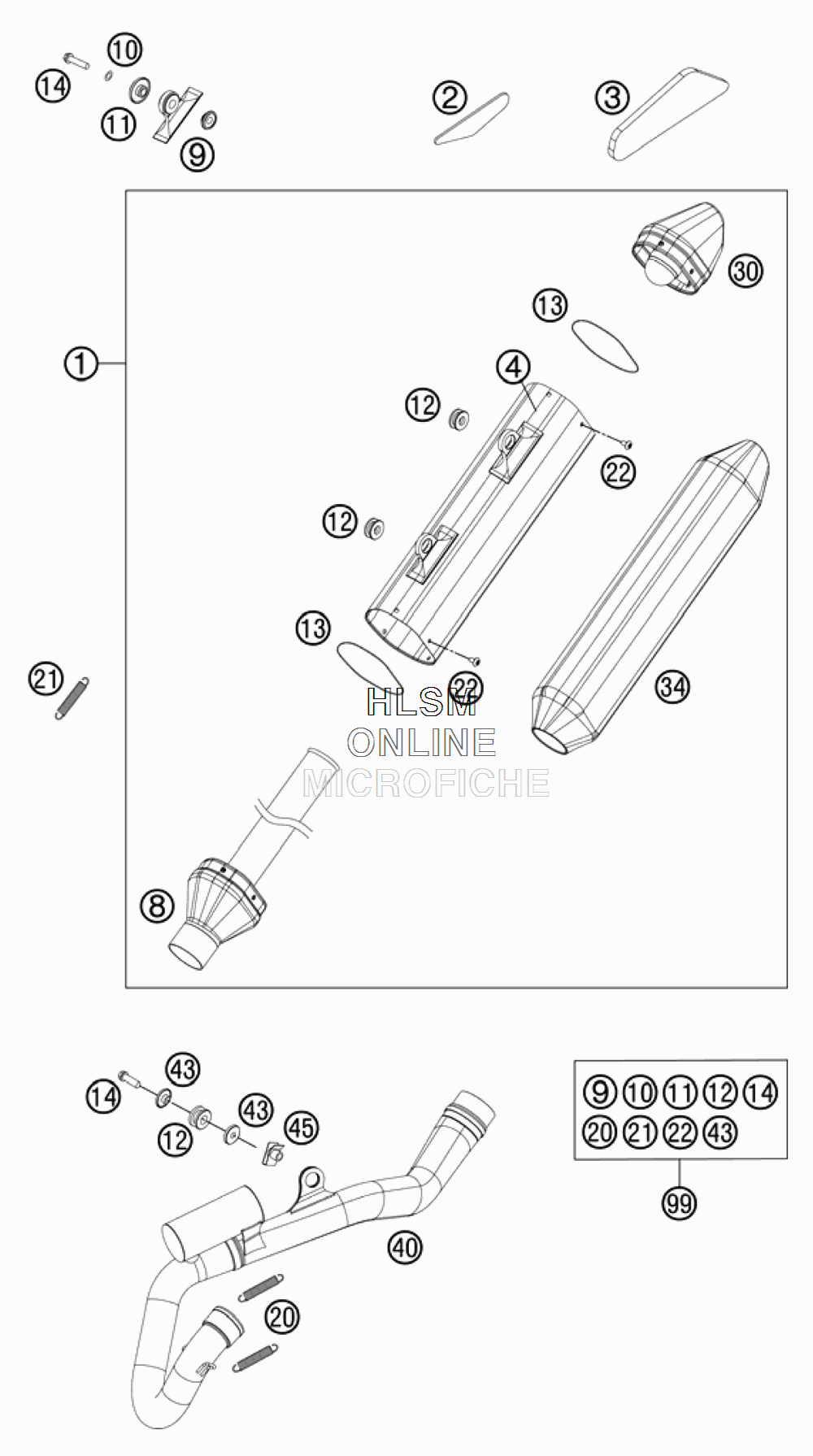

EXHAUST SYSTEM для Ktm 250 XC-F - 2013 года выпуска
-
№АртикулНазвание
-
177705079000 SILENCERSILENCER
-
277308013050 THERMAL PROTECTION FOILTHERMAL PROTECTION FOIL
-
377208013050 THERMAL PROTECTION FOILTHERMAL PROTECTION FOIL
-
477705079080 SILENCER HOUSINGSILENCER HOUSING
-
877705079050 CONNECTING CAP CPL.CONNECTING CAP CPL.
-
977805069000 BUSHING 8.5X12X28X8.3BUSHING 8.5X12X28X8.3
-
100137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1177205169000 BUSHING 7.5X12X28X8.3 11BUSHING 7.5X12X28X8.3 11
-
1277205068000 DAMP. COMPON. BLACKDAMP. COMPON. BLACK
-
130770740015 O-RING 74,00X1,50 FKM 75SHO-RING 74,00X1,50 FKM 75SH
-
140025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
2050305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
2150305116000 TEN.SPRING L=75MM EY.MOVEABLETEN.SPRING L=75MM EY.MOVEABLE
-
2278105081010 SCREW TORX M5X10SCREW TORX M5X10
-
3077705079060 END CAP CPL.END CAP CPL.
-
3477705078640 ROCKWOOL PREFORMEDROCKWOOL PREFORMED
-
4077705007000 EXHAUST MANIFOLD SXEXHAUST MANIFOLD SX
-
4377805069000 BUSHING 8.5X12X28X8.3BUSHING 8.5X12X28X8.3
-
4554603048000 RANGE CHANGE METAL NUT M8RANGE CHANGE METAL NUT M8
-
9900050000814 EXHAUST PARTS KITEXHAUST PARTS KIT
