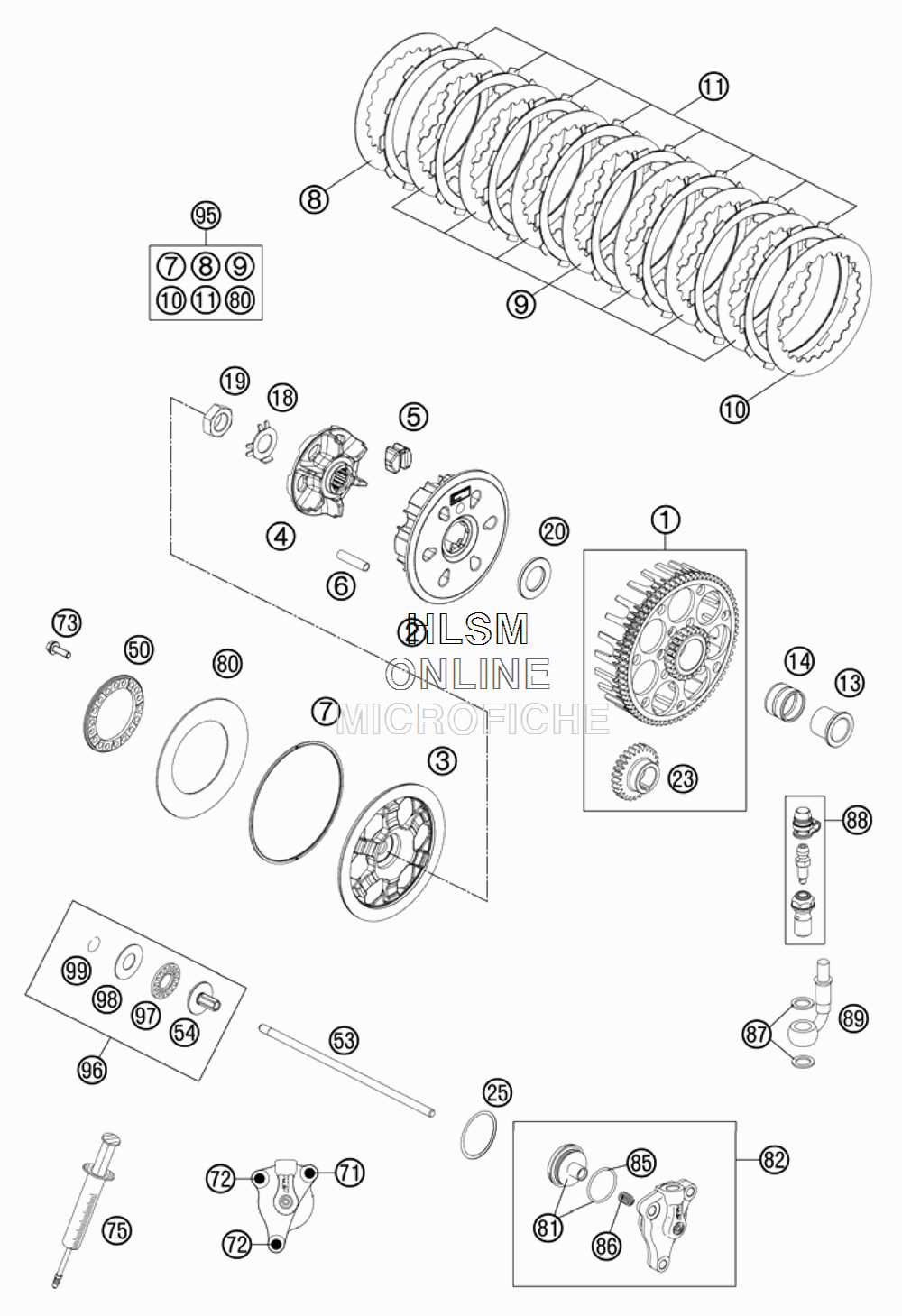

CLUTCH для Ktm 250 XC-W - 2013 года выпуска
-
№АртикулНазвание
-
154832024044 CLUTCH CAGE INCL. PRIM. WHEELCLUTCH CAGE INCL. PRIM. WHEEL
-
254832002008 INNER CLUTCH HUBINNER CLUTCH HUB
-
378132003000 PRESSURE PLATEPRESSURE PLATE
-
454832002111 CLUTCH HUBCLUTCH HUB
-
578132025100 DAMPING RUBBERDAMPING RUBBER
-
678132004000 SLEEVE 7,5X33.4SLEEVE 7,5X33.4
-
778132013000 WASHER 112X118X1.5WASHER 112X118X1.5
-
859032010100 INTERMEDIATE DISC 1MMINTERMEDIATE DISC 1MM
-
959032010200 INTERMEDIATE DISC 1.4MMINTERMEDIATE DISC 1.4MM
-
1078932010000 INTERMEDIATE DISC 1.2MMINTERMEDIATE DISC 1.2MM
-
1154832011100 LINING DISC 1,95 MMLINING DISC 1,95 MM
-
1354832015000 COLLAR SLEEVECOLLAR SLEEVE
-
1456532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
1878132018000 TAB WASHERTAB WASHER
-
190936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
2054832009000 WASHER 21.7 X 37 X 2.5WASHER 21.7 X 37 X 2.5
-
2354832000026 PRIMARY GEAR 26T 2003PRIMARY GEAR 26T 2003
-
250770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
5054832006000 SPRING RINGSPRING RING
-
5354832054100 PUSH RODPUSH ROD
-
5478032057000 PRESSURE PIECEPRESSURE PIECE
-
710025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
720025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
730025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
7550329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
8078132005000 BELLEVILLE SPRING 71X115X1,5 IBELLEVILLE SPRING 71X115X1,5 I
-
8154832066000 PISTON CPL.PISTON CPL.
-
8254832061044 OUTPUT CYLINDER CPL.OUTPUT CYLINDER CPL.
-
8554832067000 O-RINGO-RING
-
8654832069000 PRESSURE SPRINGPRESSURE SPRING
-
870603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
8862513020000 BLEEDER SCREW CPL.BLEEDER SCREW CPL.
-
8954832063000 CLUTCH PIPECLUTCH PIPE
-
9554832011110 CLUTCH KITCLUTCH KIT
-
9678032057044 PRESSURE PIECE CPL.PRESSURE PIECE CPL.
-
9754637097200 AXIAL NEEDLE BEARING AXK 1226AXIAL NEEDLE BEARING AXK 1226
-
9854637098200 AXIAL WASHER AS1226 12X26X1AXIAL WASHER AS1226 12X26X1
-
990993012000 CIRCLIP DIN7993--RW12CIRCLIP DIN7993--RW12
