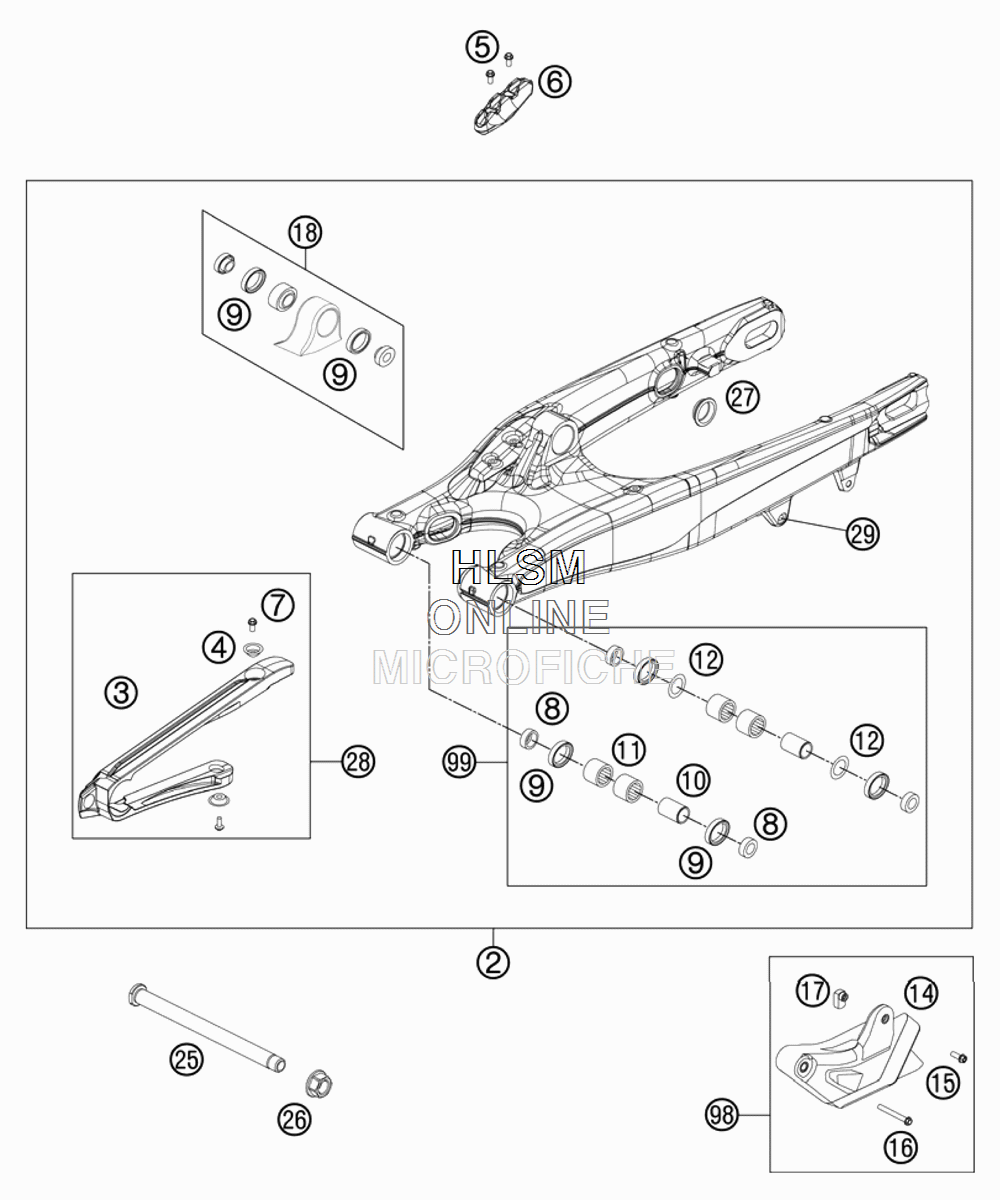

SWING ARM для Ktm 250 XC-W - 2013 года выпуска
-
№АртикулНазвание
-
251504030044 SWING ARM CPL. PDSSWING ARM CPL. PDS
-
351504066000 CHAIN SLID.GUARD PDSCHAIN SLID.GUARD PDS
-
477304066050 BUSHING F. CHAIN SLIDING PR.BUSHING F. CHAIN SLIDING PR.
-
50009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
677313047000 BRAKE HOSE GUIDE LOWERBRAKE HOSE GUIDE LOWER
-
759009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
854804034000 BUCKET F. SHAFT SEAL RINGBUCKET F. SHAFT SEAL RING
-
90760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
1054804032000 BUSHING SLEEVE F. SWING ARMBUSHING SLEEVE F. SWING ARM
-
1158033097000 NEEDLE BEARING HK 2216NEEDLE BEARING HK 2216
-
1254603036000 STOP DISK 22,2X31,7X1STOP DISK 22,2X31,7X1
-
1478004070100 CHAIN GUIDE CPL.CHAIN GUIDE CPL.
-
1559009062019 SPECIAL SCREW M6X19 WS=8 10.9SPECIAL SCREW M6X19 WS=8 10.9
-
160025060456 HH COLLAR SCREW M6X45 TX30HH COLLAR SCREW M6X45 TX30
-
1777304070030 INSERTION NUT F. CHAIN GUIDEINSERTION NUT F. CHAIN GUIDE
-
1850304090144 PIVOT BEARING+BUSH. PDSPIVOT BEARING+BUSH. PDS
-
2577304037000 SWINGARM BOLT M16X1,5SWINGARM BOLT M16X1,5
-
2654804038000 SELF LOCK.NUT M16X1,5 WS=19SELF LOCK.NUT M16X1,5 WS=19
-
2777204041000 CLOSING COVERCLOSING COVER
-
2851504066044 CHAIN SLIDING GUARD KITCHAIN SLIDING GUARD KIT
-
2954603055051 PRESS IN NUT M6 STEEL ZINCPRESS IN NUT M6 STEEL ZINC
-
9877304070310 CHAIN GUIDE KIT REAR 8CHAIN GUIDE KIT REAR 8
-
9954804230210 SWINGARM REPAIR KITSWINGARM REPAIR KIT
