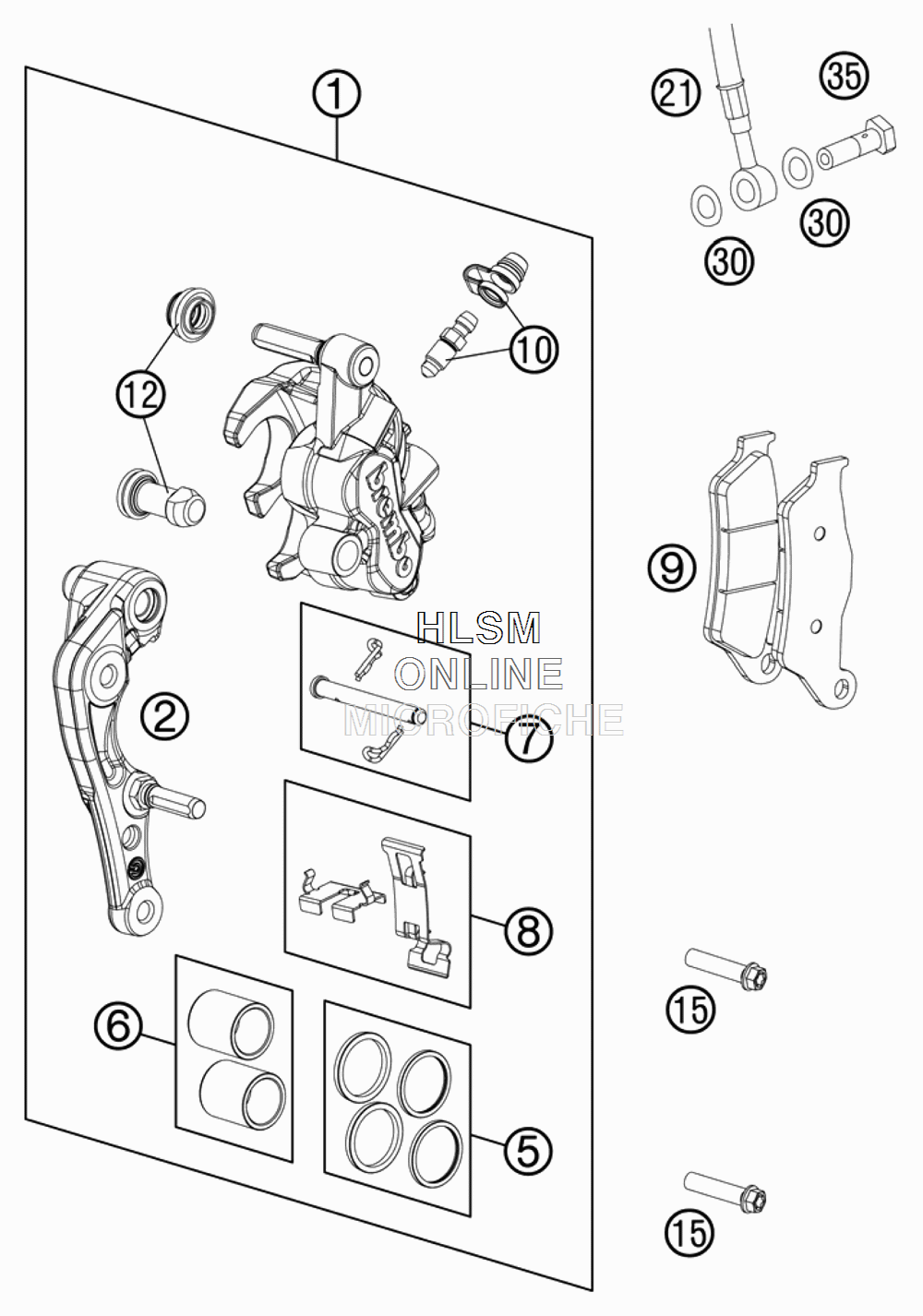

BRAKE CALIPER FRONT для Ktm 350 XC-F - 2013 года выпуска
-
№АртикулНазвание
-
17701301500101 CALIPER NAT. WITHOUT PADSCALIPER NAT. WITHOUT PADS
-
277013014000 BRAKE CALIPER SUPPORT FRONTBRAKE CALIPER SUPPORT FRONT
-
577013021000 REP. KIT SEALS 24MMREP. KIT SEALS 24MM
-
677013019000 REP. KIT PISTON 24MMREP. KIT PISTON 24MM
-
777013017000 BOLT CPL.BOLT CPL.
-
877013018000 RETAINING PLATE SET BREMBORETAINING PLATE SET BREMBO
-
977013020000 BRAKE PADS TOYO B153BRAKE PADS TOYO B153
-
1061013020100 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
1254613218000 CUP SET SHORTCUP SET SHORT
-
150025080356S HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
2159013010000 BRAKEHO. FRONT 1235MMBRAKEHO. FRONT 1235MM
-
300603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
3550213025000 HOLLOW SCREW M10X1 X19HOLLOW SCREW M10X1 X19
