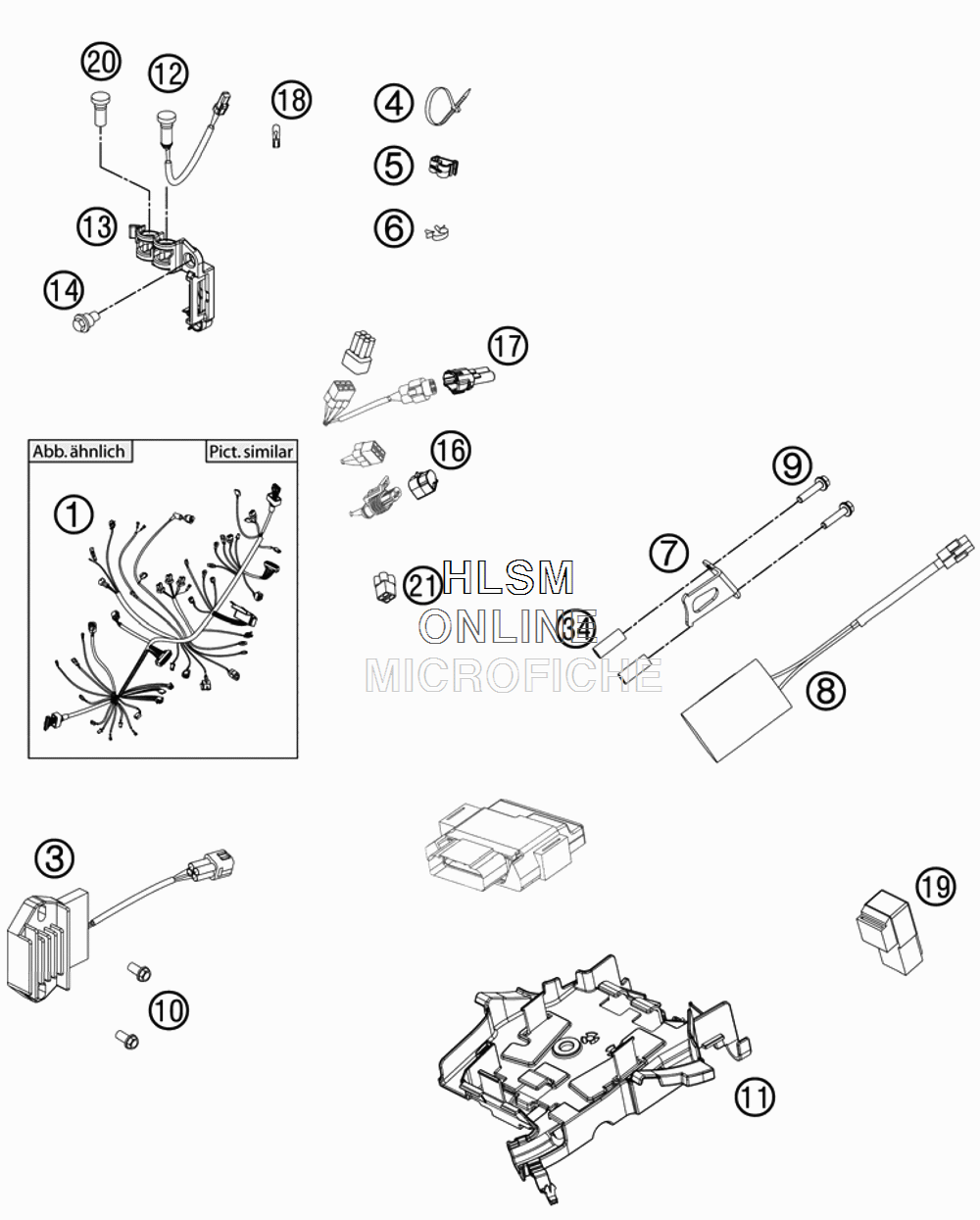

WIRING HARNESS для Ktm 450 XC-F - 2013 года выпуска
-
№АртикулНазвание
-
177711075100 WIRING HARNESSWIRING HARNESS
-
377211034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
444011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
444011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
444011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
583013026000 CABLE GUIDECABLE GUIDE
-
657013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
777711036000 RETAINING PLATE CONDENSATORRETAINING PLATE CONDENSATOR
-
877711035000 CONDENSATORCONDENSATOR
-
90025050306 HH COLLAR SCREW M5X30 TX30HH COLLAR SCREW M5X30 TX30
-
100025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
1177211094100 ELECTRIC CASEELECTRIC CASE
-
1281214083000 INDICATOR LIGHT LED YELLOW FIINDICATOR LIGHT LED YELLOW FI
-
1377214098100 SUPPORT INDICATOR LIGHTSUPPORT INDICATOR LIGHT
-
1459001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
1677211010050 DUMMY PLUG MAPSELECTSWITCHDUMMY PLUG MAPSELECTSWITCH
-
1769011040000 END PLUG CAN-BUSEND PLUG CAN-BUS
-
1849111425200 BULB 12V 2,3W (W2X4,6D)BULB 12V 2,3W (W2X4,6D)
-
1961111057000 RELAY CM1A-R-12V-H80RELAY CM1A-R-12V-H80
-
2081214086000 INDICATOR LIGHT RESERVEINDICATOR LIGHT RESERVE
-
2181211096000 DUMMY PLUG AN 4-PINDUMMY PLUG AN 4-PIN
-
3477711036050 BUSHING CONENSATOR BRACKETBUSHING CONENSATOR BRACKET
