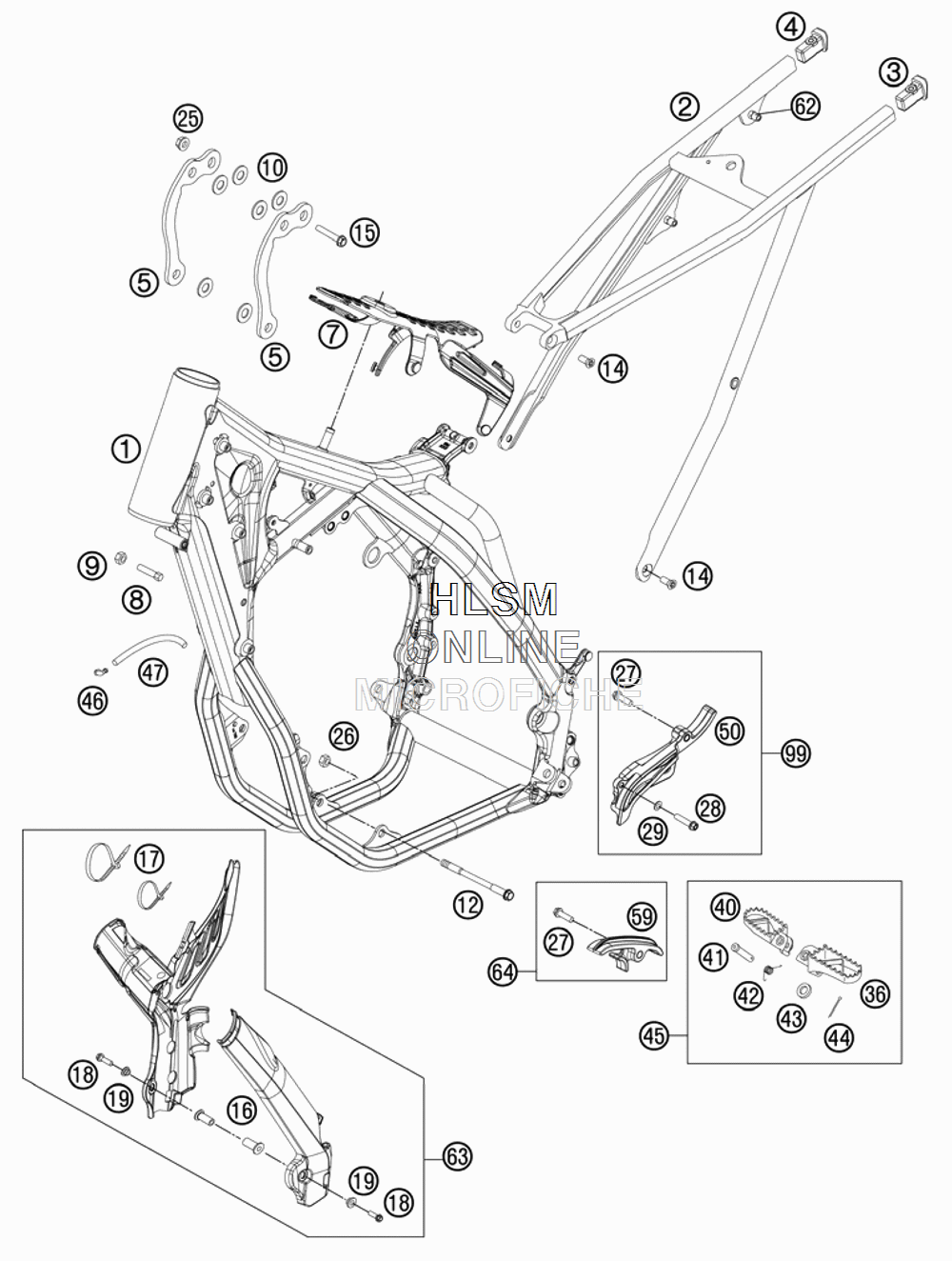

FRAME для Ktm 450 XC-W - 2013 года выпуска

№

Артикул

Название
1

7810300100033 FRAME BLACK M. "781L2"

FRAME BLACK M. "781L2"

0 ₽
2

77203002000 SUB FRAME SX

SUB FRAME SX

97 690 ₽
3

78003002010 SUB FRAME APPLICATION LEFT

SUB FRAME APPLICATION LEFT

0 ₽
4

78003002020 SUB FRAME APPLICATION RIGHT

SUB FRAME APPLICATION RIGHT

0 ₽
5

78103013000 REINFORCING 2012

REINFORCING 2012

2 540 ₽
7

77207012000 TANK REST RUBBER

TANK REST RUBBER

2 160 ₽
8

59001037000 SPECIAL SCREW M8X26 WS=10

SPECIAL SCREW M8X26 WS=10

560 ₽
9

0934080003 HEXAGON NUT DIN0934-M 8

HEXAGON NUT DIN0934-M 8

320 ₽
10

77003013050 WASHER 8,5X18X1 INOX

WASHER 8,5X18X1 INOX

590 ₽
12

59003013000 ENGINEBRAC.SCREW M10X123 WS=13

ENGINEBRAC.SCREW M10X123 WS=13

2 160 ₽
14

0019080206S FLAT HEAD SCREW M. ISA45 M8X20

FLAT HEAD SCREW M. ISA45 M8X20

440 ₽
15

56530079000 HH COLLAR SCREW M 8X44 WS13

HH COLLAR SCREW M 8X44 WS13

530 ₽
16

54803092050 BLIND PLUG-IN NUT M5 WN 22A

BLIND PLUG-IN NUT M5 WN 22A

1 170 ₽
17

44011076140 CABLE TIE 140/2,5MM BLACK

CABLE TIE 140/2,5MM BLACK

100 ₽
17

44011076305 CABLE TIE 300/4,8MM BLACK

CABLE TIE 300/4,8MM BLACK

290 ₽
18

0738050250 COU.SUNK SCR. AH ISO7380 M5X25

COU.SUNK SCR. AH ISO7380 M5X25

270 ₽
19

54803092060 BUSH F. FRAME PROTECTION

BUSH F. FRAME PROTECTION

820 ₽
20

54403135000 PLASTIC CAP SFL10

PLASTIC CAP SFL10

380 ₽
25

54310086200 SELF LOCKING NUT M8 10.9

SELF LOCKING NUT M8 10.9

500 ₽
26

54310086100 SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

410 ₽
27

0025080306 HH COLLAR SCREW M8X30 TX40

HH COLLAR SCREW M8X30 TX40

700 ₽
28

0025060356 HH COLLAR SCREW M6X35 TX30

HH COLLAR SCREW M6X35 TX30

560 ₽
29

0125060003 WASHER DIN0125-A 6,4

WASHER DIN0125-A 6,4

120 ₽
36

78003040050 FOOTREST L/S

FOOTREST L/S

11 770 ₽
40

78003041050 FOOTREST R/S

FOOTREST R/S

11 770 ₽
41

54803044000 BOLT FOR FOOT PED

BOLT FOR FOOT PED

3 330 ₽
42

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
43

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
44

0094032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

290 ₽
45

78003040033 FOOTREST L/S + R/S CPL.

FOOTREST L/S + R/S CPL.

31 340 ₽
46

50303089000 ANGLE PIECE

ANGLE PIECE

1 160 ₽
47

55007016001 PVC-HOSE 7X10 PER METER

PVC-HOSE 7X10 PER METER

1 640 ₽
50

78103096000 CHAIN GUARD 450/500 EXC

CHAIN GUARD 450/500 EXC

3 850 ₽
59

77203053000 CHAIN SLIDING PIECE BELOW

CHAIN SLIDING PIECE BELOW

2 080 ₽
62

77303139000 BLIND ND RIVET NUT EM6-6 0LF/HX

BLIND ND RIVET NUT EM6-6 0LF/HX

880 ₽
63

77203094000 PLASTIC FRAME PROTECTION SET

PLASTIC FRAME PROTECTION SET

14 050 ₽
64

77203053010 CHAIN SLIDING KIT BELOW CPL.

CHAIN SLIDING KIT BELOW CPL.

5 060 ₽
99

78103096010 SPROCKET COVER KIT

SPROCKET COVER KIT

5 060 ₽
