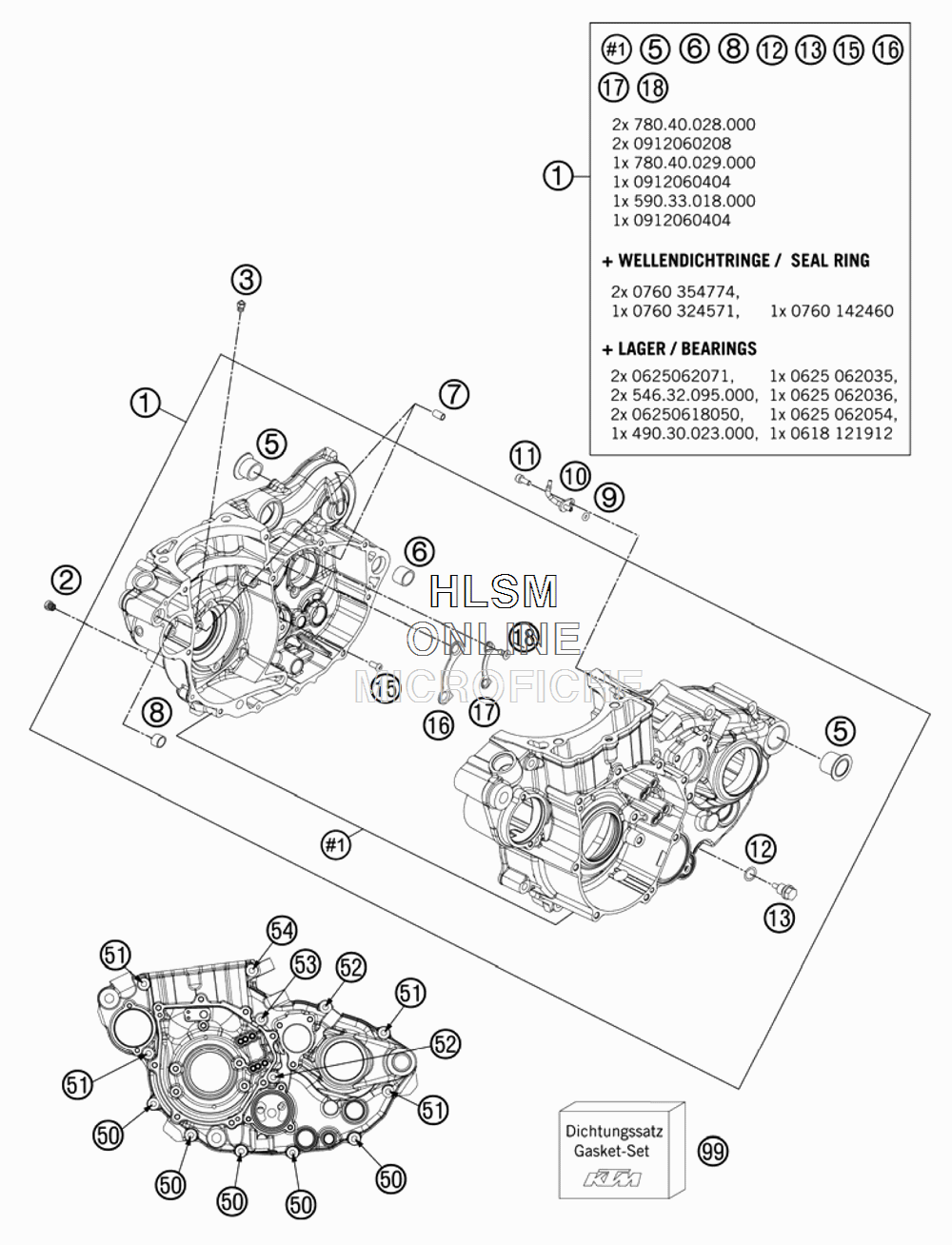

ENGINE CASE для Ktm 500 EXC - 2013 года выпуска

№

Артикул

Название
1

78130000033 ENGINE CASE CPL.

ENGINE CASE CPL.

340 ₽
2

57031523145 MAIN JET 145

MAIN JET 145

1 780 ₽
3

60030063070 OIL JET 70 M5

OIL JET 70 M5

1 960 ₽
5

75030010100 CASE BUSH

CASE BUSH

2 690 ₽
6

54830027000 DOWEL 21X12

DOWEL 21X12

1 290 ₽
7

59030023000 DOWEL 6X8X11,5

DOWEL 6X8X11,5

910 ₽
8

51030026100 DOWEL 17 X 13 X 12

DOWEL 17 X 13 X 12

1 550 ₽
9

0770035020 O-RING 3,5X2,00 NBR

O-RING 3,5X2,00 NBR

60 ₽
10

81230064000 OIL JET ANGLED 70

OIL JET ANGLED 70

3 270 ₽
11

0912040103 AH.SCREW DIN0912-M 4X10

AH.SCREW DIN0912-M 4X10

290 ₽
12

58038022000 CU-SEAL RING DIN7603-12X18X1,5

CU-SEAL RING DIN7603-12X18X1,5

440 ₽
13

58030021000 OILDRAIN PLUG W.MAG. M 12X1,5

OILDRAIN PLUG W.MAG. M 12X1,5

2 800 ₽
15

0018050103 INT. TORX OVAL HEAD M 5X10 8.8

INT. TORX OVAL HEAD M 5X10 8.8

180 ₽
16

78033032000 TAB WASHER BEARING MAIN SHAFT

TAB WASHER BEARING MAIN SHAFT

1 260 ₽
17

78033132000 TAB WASHER BEARING COUNT.SHAFT

TAB WASHER BEARING COUNT.SHAFT

1 140 ₽
18

0019050106 INT. TORX FLAT HEAD M5X10 10.9

INT. TORX FLAT HEAD M5X10 10.9

290 ₽
50

0025060406 HH COLLAR SCREW M6X40 TX30

HH COLLAR SCREW M6X40 TX30

500 ₽
51

0025060606 HH COLLAR SCREW M6X60 TX30

HH COLLAR SCREW M6X60 TX30

560 ₽
52

0025060756 HH COLLAR SCREW M6X75 TX30

HH COLLAR SCREW M6X75 TX30

560 ₽
53

0025060806 HH COLLAR SCREW M6X80 TX30

HH COLLAR SCREW M6X80 TX30

410 ₽
54

0025060856 HH COLLAR SCREW M6X85 TX30

HH COLLAR SCREW M6X85 TX30

530 ₽
99

78130099000 GASKET SET

GASKET SET

53 030 ₽
