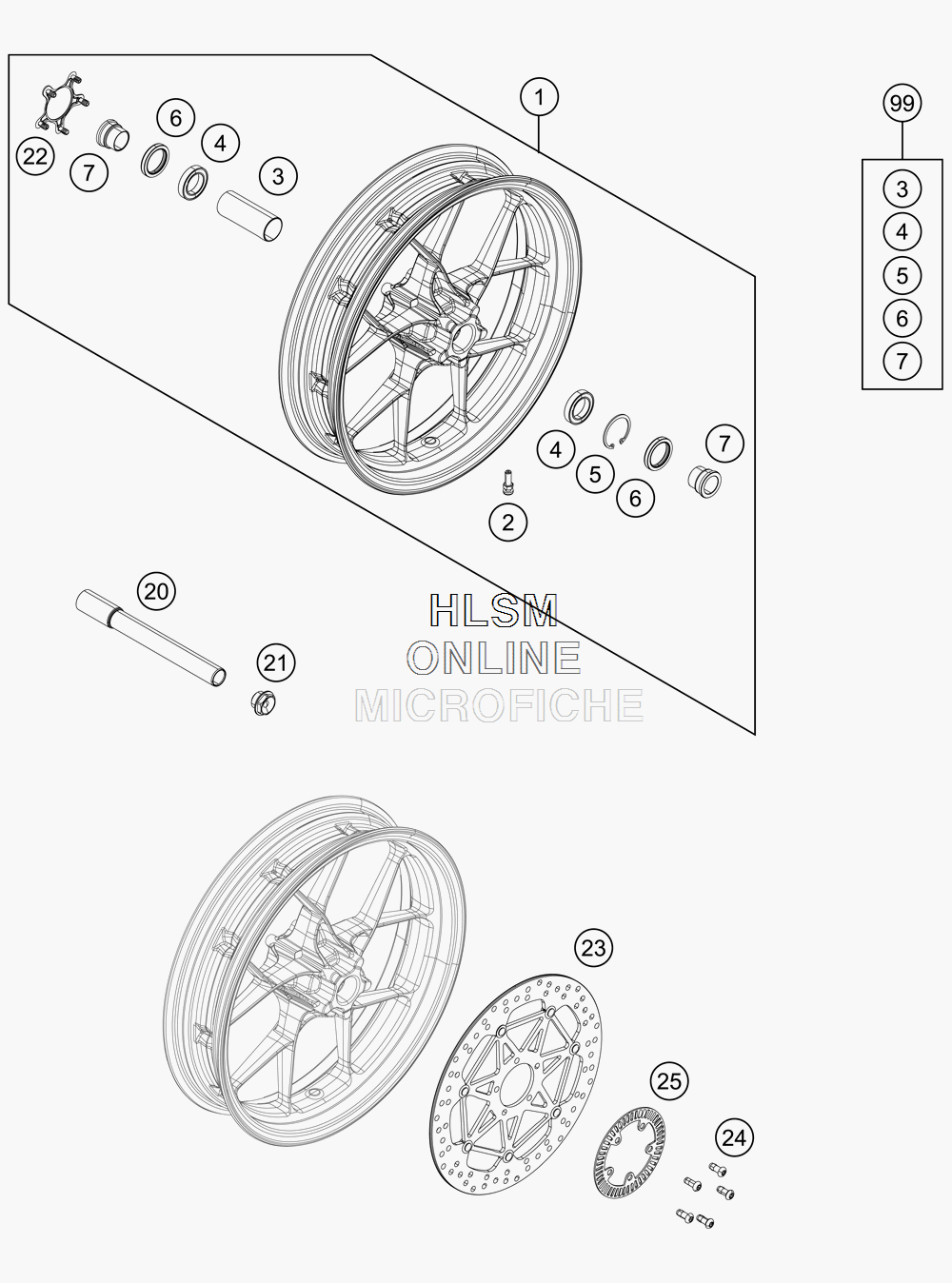

FRONT WHEEL для Ktm 690 DUKE BLACK - 2013 года выпуска
-
№АртикулНазвание
-
17600900104430 FRONT WHEEL CPL. 3,5X17"FRONT WHEEL CPL. 3,5X17"
-
258709076000 VALVE CPL. BREMBO DUKEVALVE CPL. BREMBO DUKE
-
361009011000 BEARING SPACER TUBE FRONTBEARING SPACER TUBE FRONT
-
40625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
778009012000 SPACER BUSHING F. FR. WHEELSPACER BUSHING F. FR. WHEEL
-
2075009081000 WHEEL SPINDLE FRONT D=26MMWHEEL SPINDLE FRONT D=26MM
-
2154809082000 SPINDLE SCREW M24X1,5 WS=27SPINDLE SCREW M24X1,5 WS=27
-
2276009001010 COVER BRAKE DISC SEATCOVER BRAKE DISC SEAT
-
237600906000033 BRAKE DISK D=320BRAKE DISK D=320
-
2476009062000 SPECIAL SCREW M8X25 SS TX40SPECIAL SCREW M8X25 SS TX40
-
2576042020000 SENSORGEAR FRONTSENSORGEAR FRONT
-
9975609015000 FRONT WHEEL REP. KITFRONT WHEEL REP. KIT
