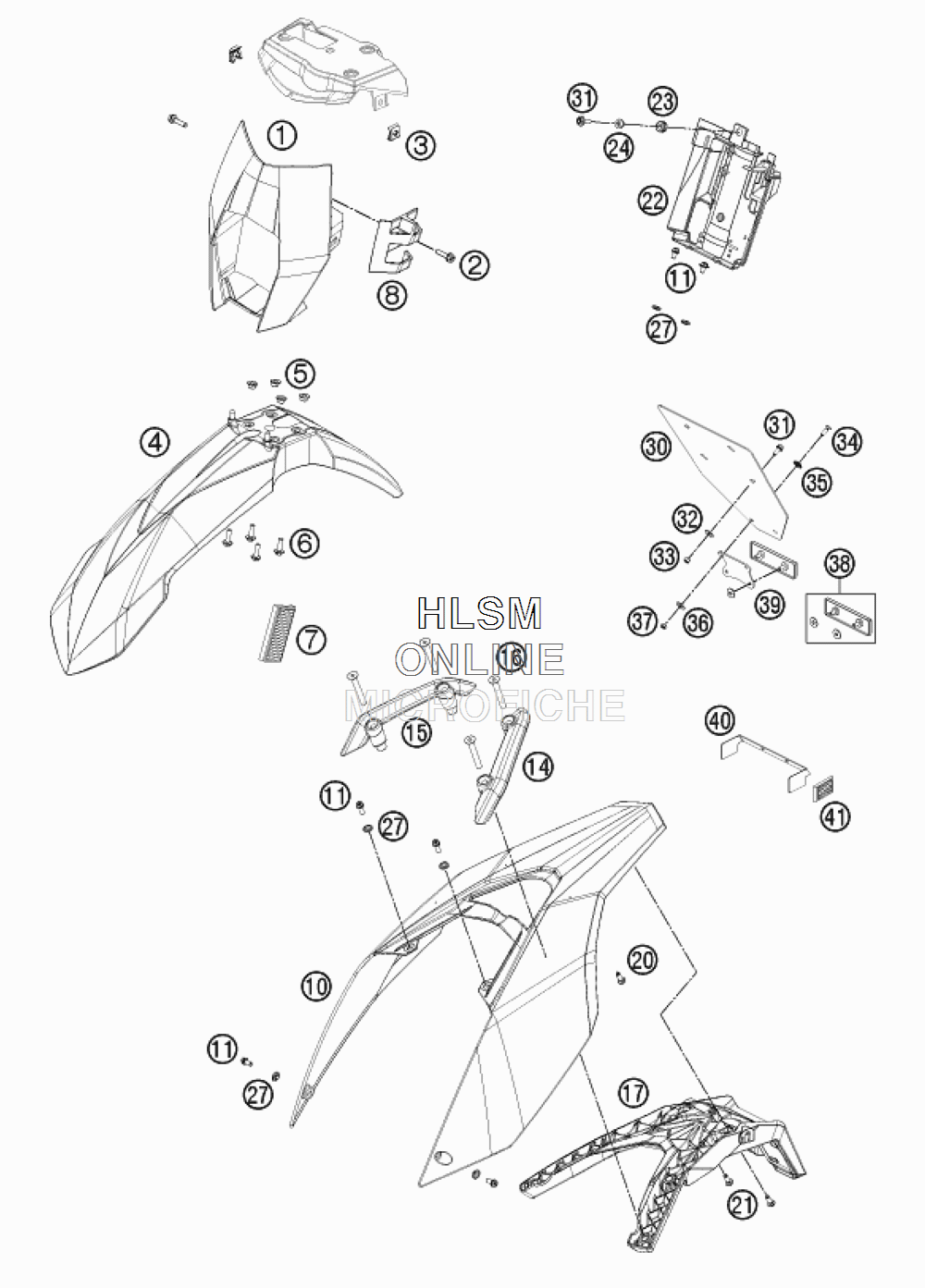

MASK FENDERS для Ktm 690 ENDURO - 2013 года выпуска
-
№АртикулНазвание
-
17650800100030 HEAD LIGHT MASKHEAD LIGHT MASK
-
20025050206 HH COLLAR SCREW M5X20 TX30HH COLLAR SCREW M5X20 TX30
-
354603048200 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
47650801010004 FRONT FENDERFRONT FENDER
-
554808020000 SPACER BUSHINGSPACER BUSHING
-
60024060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
758412080100 REFLECTOR YELLOWREFLECTOR YELLOW
-
876513025000 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
107650801300028 REAR PART WHITEREAR PART WHITE
-
110025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
1476512008000 HAND GRIP L/SHAND GRIP L/S
-
1576512009000 HAND GRIP R/SHAND GRIP R/S
-
160019080756 COUNTERSUNK SCREW ISA45 M8X75COUNTERSUNK SCREW ISA45 M8X75
-
1776508116100 NUMBER PLATE CARRIER TOPNUMBER PLATE CARRIER TOP
-
200017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
210017060303 SPECIAL SCREW T60 6X30 WS=6SPECIAL SCREW T60 6X30 WS=6
-
2276514064000 COVERCOVER
-
2331008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
2475014010050 COLLAR BUSHING 6,1X8,1X14X8COLLAR BUSHING 6,1X8,1X14X8
-
2776508043050 COLLAR BUSHINGCOLLAR BUSHING
-
3060012081200 LICENCE FITTINGLICENCE FITTING
-
310024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
320125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
330985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
340966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
3540006006000 WASHER 6MMWASHER 6MM
-
360125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
370985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
3858412080000 REFLECTOR RED LC4REFLECTOR RED LC4
-
3958412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
4062512081000 BRACKET SIDE REFLECTORBRACKET SIDE REFLECTOR
-
4116512180100 SIDE REFLECTOR RED REARSIDE REFLECTOR RED REAR
