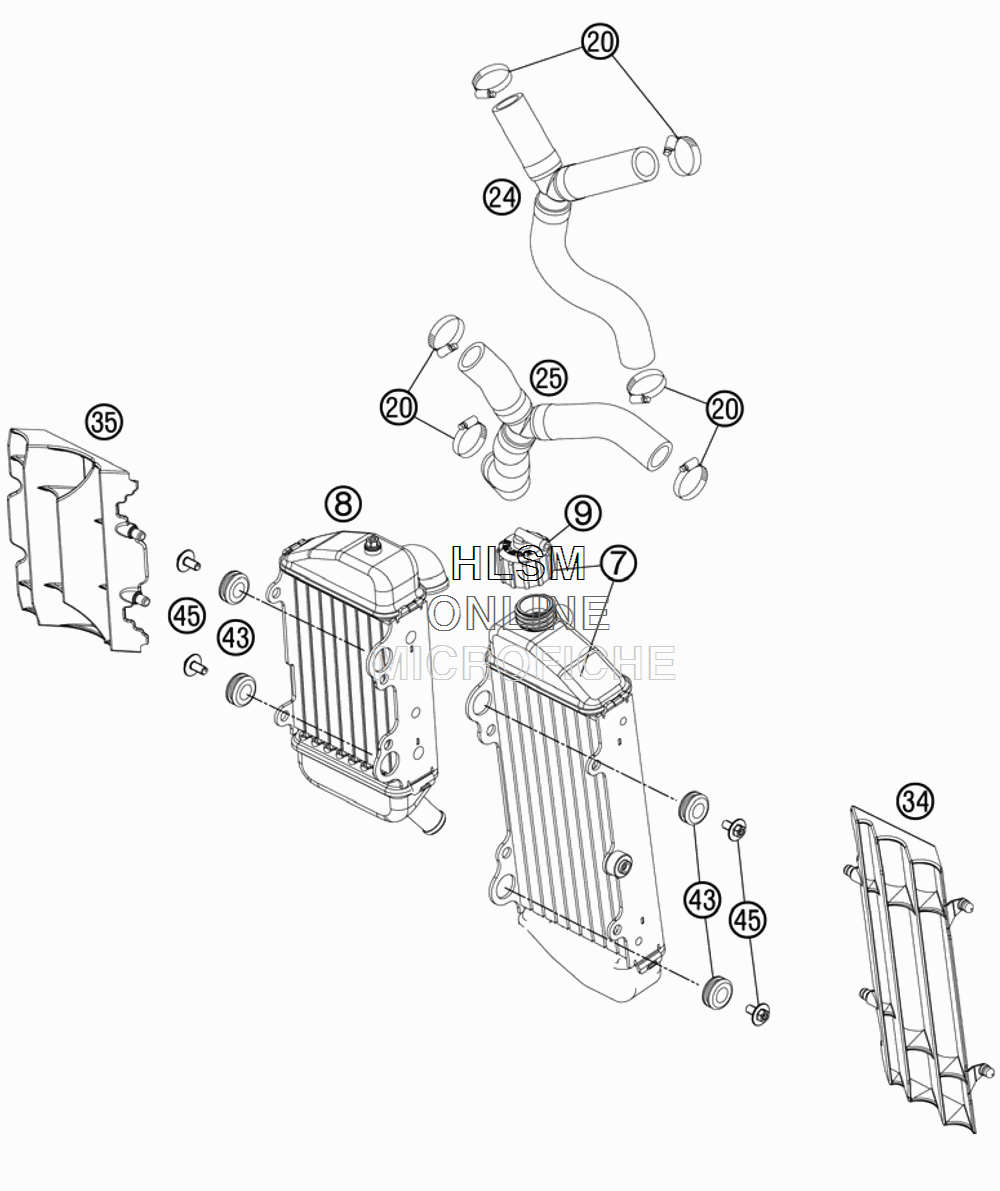

COOLING SYSTEM для Ktm 85 SX 17/14 - 2013 года выпуска
-
№АртикулНазвание
-
747135007000 RADIATOR LEFTRADIATOR LEFT
-
847135008000 RADIATOR RIGHTRADIATOR RIGHT
-
972035016000 RADIATOR CAP 1,8 BARRADIATOR CAP 1,8 BAR
-
2010001020000 HOSE CLAMP GEMI 16-27HOSE CLAMP GEMI 16-27
-
2447135025033 RADIATOR HOSE CPL. TOPRADIATOR HOSE CPL. TOP
-
2547135028033 RADIATOR HOSE BELOWRADIATOR HOSE BELOW
-
344713503400030 RADIATOR PROTECTOR LEFTRADIATOR PROTECTOR LEFT
-
3546235034000 RADIATOR PROTECTORRADIATOR PROTECTOR
-
4341001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
450024060123 COLLAR SCREW M6X12COLLAR SCREW M6X12
Все узлы модели:
- ACCESSORIES KIT
- AIRBOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR
- CLUTCH
- • COOLING SYSTEM
- CRANKSHAFT PISTON
- CYLINDER
- DECAL
- ENGINE CASE
- EXHAUST CONTROL
- EXHAUST SYSTEM
- FRAME SUBFRAME
- FRONT FORK DISASSEMBLED
- FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR CONTROLS
- IGNITION SYSTEM
- KICK STARTER
- MASK FENDERS
- MONOSHOCK
- MONOSHOCK DISASSEMBLED
- REAR BRAKE CONTROL
- REAR WHEEL
- REED VALVE HOUSING
- SHIFTING MECHANISM
- SWING ARM
- TANK SEAT COVER
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
