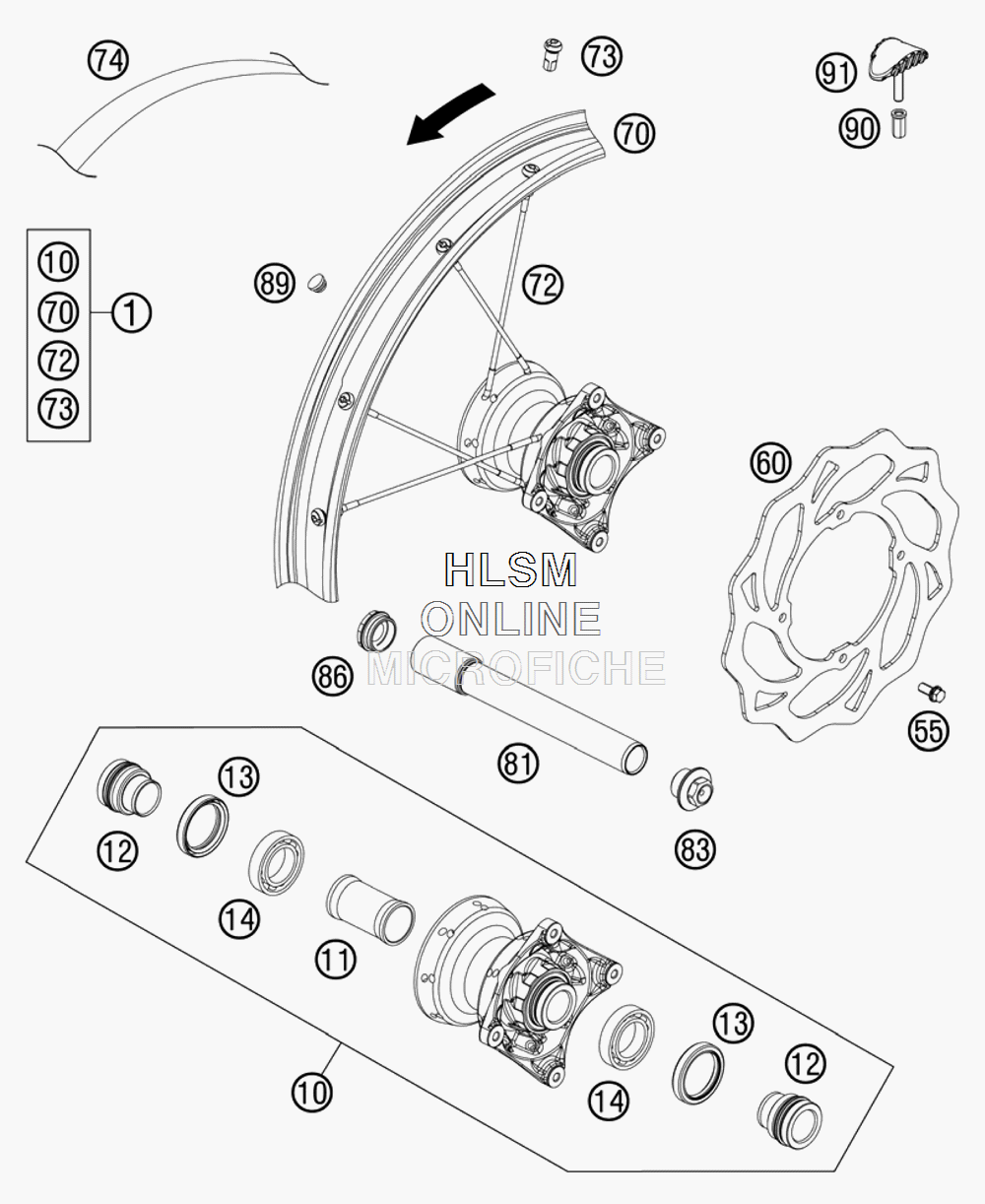

FRONT WHEEL для Ktm 85 SX - 2013 года выпуска
-
№АртикулНазвание
-
147109001044 FRONT WHEEL CPL. 17"FRONT WHEEL CPL. 17"
-
1070009010044 FRONT WHEEL HUB CPL.FRONT WHEEL HUB CPL.
-
1170009011000 BEAR.SPACER TUBE FRONT D22MMBEAR.SPACER TUBE FRONT D22MM
-
1270009012000 SPACER BUSHING D=22MMSPACER BUSHING D=22MM
-
130760324271 SHAFT SEAL RING 32X42X7 BSLSHAFT SEAL RING 32X42X7 BSL
-
140625069050 BALL BEARING 6905 J1LLUC3BALL BEARING 6905 J1LLUC3
-
5559009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
6047009060300 BRAKE DISC FRONT D=219MMBRAKE DISC FRONT D=219MM
-
7047109070000 RIM FRONT AL4 17X1,40-32RIM FRONT AL4 17X1,40-32
-
724710907118330 SPOKE M4,5X183-17" BLACKSPOKE M4,5X183-17" BLACK
-
7377109072000 SPOKE NIPPLE M4,5 ALSPOKE NIPPLE M4,5 AL
-
7447009073000 RIM BAND 85 SX 17"RIM BAND 85 SX 17"
-
8170009081000 AXLE FRONT D=22AXLE FRONT D=22
-
8370009082000 AXLESCREW M20X1.5; SW17AXLESCREW M20X1.5; SW17
-
8670009081050 PLUG BUSHING SW17PLUG BUSHING SW17
-
8955003135000 PLUG FOR RIMPLUG FOR RIM
-
9077110090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
9145110090000 RIM LOCK CPL.RIM LOCK CPL.
