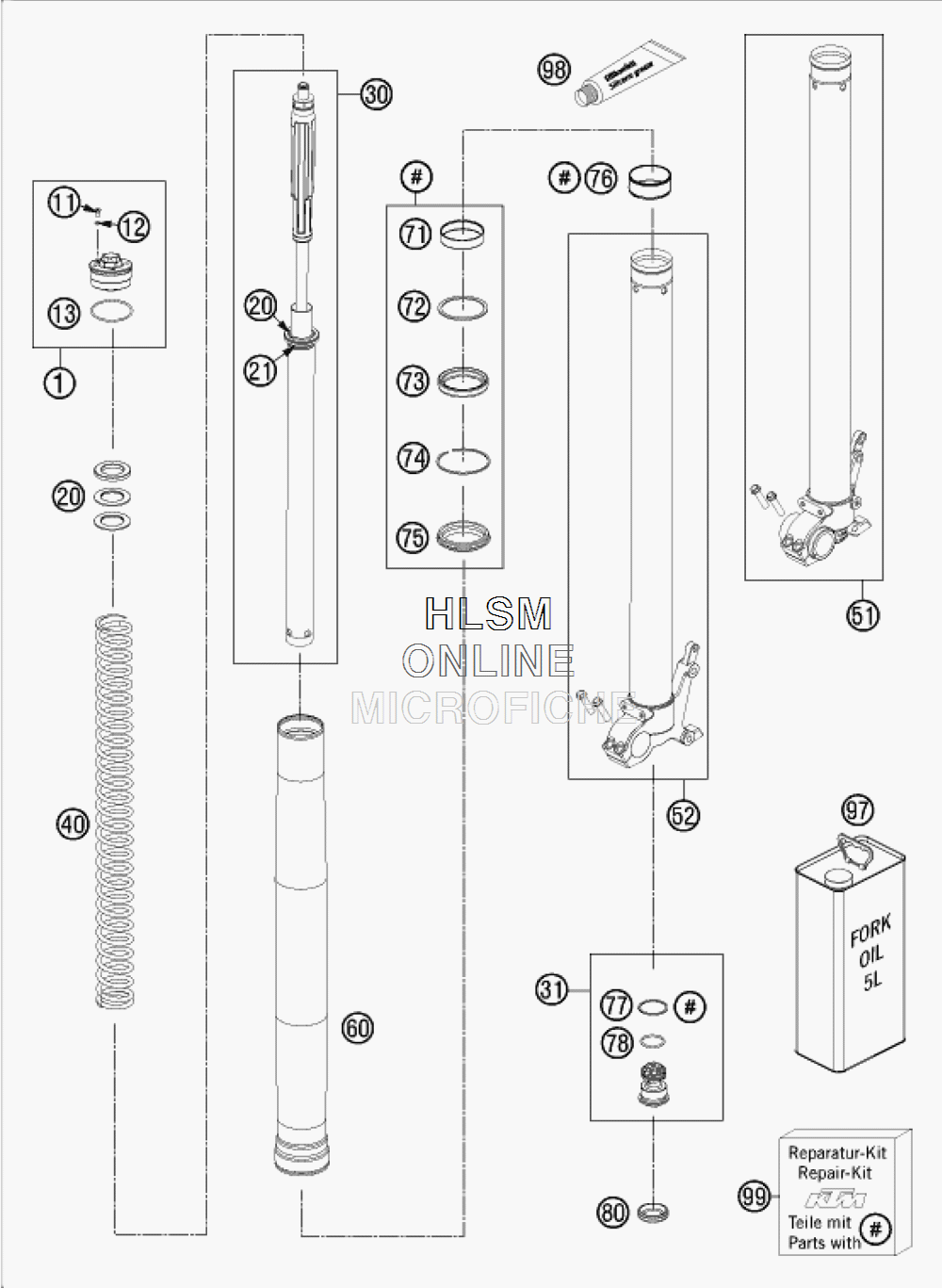

FRONT FORK DISASSEMBLED для Ktm 990 ADVENTURE BAJA - 2013 года выпуска
-
№АртикулНазвание
-
148600431S PRE-LOAD ADJ. CPL. M51X1,5PRE-LOAD ADJ. CPL. M51X1,5
-
1148600481 VENT SCREW M4X8VENT SCREW M4X8
-
1248600046 O-RING NBR 3X1,5O-RING NBR 3X1,5
-
1346810340 O-RING NBR 45X2O-RING NBR 45X2
-
2048600037 SPACER 42X26,5X5SPACER 42X26,5X5
-
2048600036 SPACER 42X26,5X2,5SPACER 42X26,5X2,5
-
2048600053 SPACER 42X26,5X1,5SPACER 42X26,5X1,5
-
2148600021 INTERM. RING 26,2 X 43 X 3INTERM. RING 26,2 X 43 X 3
-
3048600140S CARTRIDGE CPL. ADV ABSCARTRIDGE CPL. ADV ABS
-
3148600586S2 TAP COMPRESSION CPL.TAP COMPRESSION CPL.
-
4091410040S SPRING 4,8N/MM SET D=5,25MMSPRING 4,8N/MM SET D=5,25MM
-
4091410041SA SPRING 432.465.00.046W D5.25SPRING 432.465.00.046W D5.25
-
4091410058S SPRING D43.2 L465 5N/MM SETSPRING D43.2 L465 5N/MM SET
-
5148600872S1 AXLE CLAMP LEFT ADV. CPL.AXLE CLAMP LEFT ADV. CPL.
-
5248600873S1 AXLE CLAMP RIGHT ADV. CPL.AXLE CLAMP RIGHT ADV. CPL.
-
6048600553E OUTER TUBE L=640MM D=54/60OUTER TUBE L=640MM D=54/60
-
71*48601009 GUIDING BUSH 48X52X12 R11GUIDING BUSH 48X52X12 R11
-
7248600013 SUPPORT RING 50 X 57,6 X 1,5SUPPORT RING 50 X 57,6 X 1,5
-
7348600399 OIL SEAL RING 48X57,8X9,5OIL SEAL RING 48X57,8X9,5
-
7448600070 LOCK WASHER SB58LOCK WASHER SB58
-
7548600400 DUST CAP D=48 58,4X11,8DUST CAP D=48 58,4X11,8
-
7648600428 DU-BUSH D47XD49X20DDL02DU-BUSH D47XD49X20DDL02
-
7748600004 COPPER WASHER 29,5X33,5X1COPPER WASHER 29,5X33,5X1
-
7835480320 O-RING NBR 24X2O-RING NBR 24X2
-
8048600141 RUBBER CAP D=35MMRUBBER CAP D=35MM
-
9748601166S1 FORK OIL SAE4 5LFORK OIL SAE4 5L
-
98T511 SILICONE GREASE F. DUST STRISILICONE GREASE F. DUST STRI
-
99R14013 REPAIR-KIT EXC FRONT FORK06/07REPAIR-KIT EXC FRONT FORK06/07
