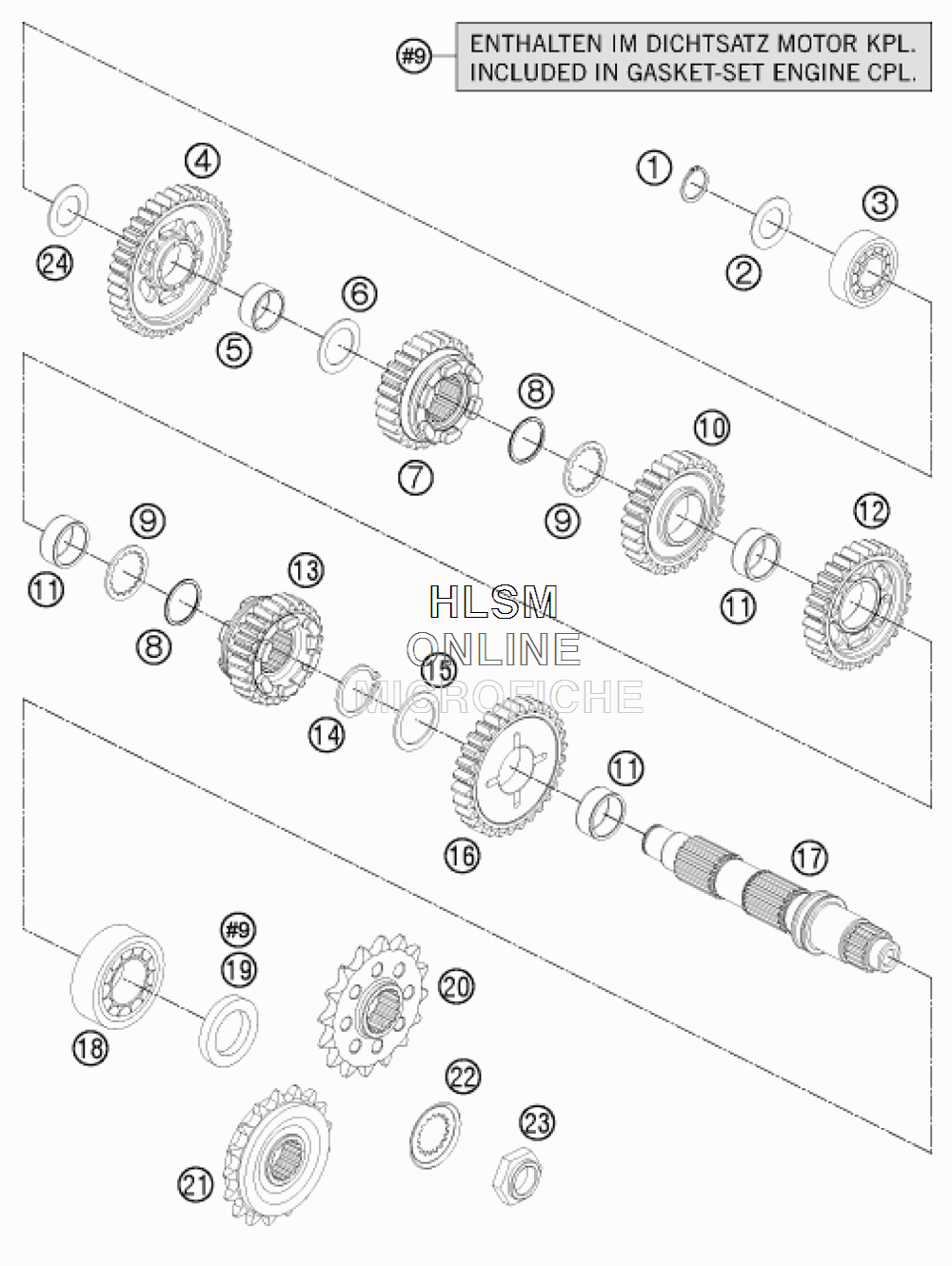

TRANSMISSION II - COUNTERSHAFT для Ktm 1190 ADVENTURE R ABS - 2014 года выпуска
-
№АртикулНазвание
-
10471200120 CIRCLIP DIN471 20X1,2CIRCLIP DIN471 20X1,2
-
260033043000 STOP DISK 20,2 X 34 X 1STOP DISK 20,2 X 34 X 1
-
30625062043 BALL BEARING 6204 J1 C3BALL BEARING 6204 J1 C3
-
460333011000 IDLER GEAR 1. GEARIDLER GEAR 1. GEAR
-
50405242813 NEEDLE BEAR. K 24X28X13 TNNEEDLE BEAR. K 24X28X13 TN
-
660033044000 STOP DISK 24,3/35,75/1STOP DISK 24,3/35,75/1
-
760333015000 SLIDING GEAR 5.GEARSLIDING GEAR 5.GEAR
-
80471029000 TWISTED CIRCLIP D29TWISTED CIRCLIP D29
-
961233045000 STOP DISK 27/36/1,5STOP DISK 27/36/1,5
-
1060333014000 IDLER GEAR 4. GEARIDLER GEAR 4. GEAR
-
110405263113 NEEDLE BEAR. K 26-31-13NEEDLE BEAR. K 26-31-13
-
1260333013000 IDLER GEAR 3. GEARIDLER GEAR 3. GEAR
-
1360333016000 SLIDING GEAR 6. GEARSLIDING GEAR 6. GEAR
-
14471300151 CIRCLIP DIN0471-30X1,5 NIROCIRCLIP DIN0471-30X1,5 NIRO
-
1561233046000 STOP DISK 29,9/39/1,5STOP DISK 29,9/39/1,5
-
1660333012000 IDLER GEAR 2. GEARIDLER GEAR 2. GEAR
-
1760333010000 COUNTERSHAFTCOUNTERSHAFT
-
1850330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46CYL.ROLLER BEAR.NJ206 ET2XCS46
-
190760304772 SH.SEAL RING 30X47X7 BSL VITONSH.SEAL RING 30X47X7 BSL VITON
-
2060033129016 CHAIN SPROCKET 16-T DAMPCHAIN SPROCKET 16-T DAMP
-
2060033029017 CHAIN SPROCKET 17-TCHAIN SPROCKET 17-T
-
2160033129017 CHAIN SPROCKET 17-T DAMPEDCHAIN SPROCKET 17-T DAMPED
-
2260033034000 SECURING PLATE TOOTHEDSECURING PLATE TOOTHED
-
2360033035000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
-
2460033043000 STOP DISK 20,2 X 34 X 1STOP DISK 20,2 X 34 X 1
