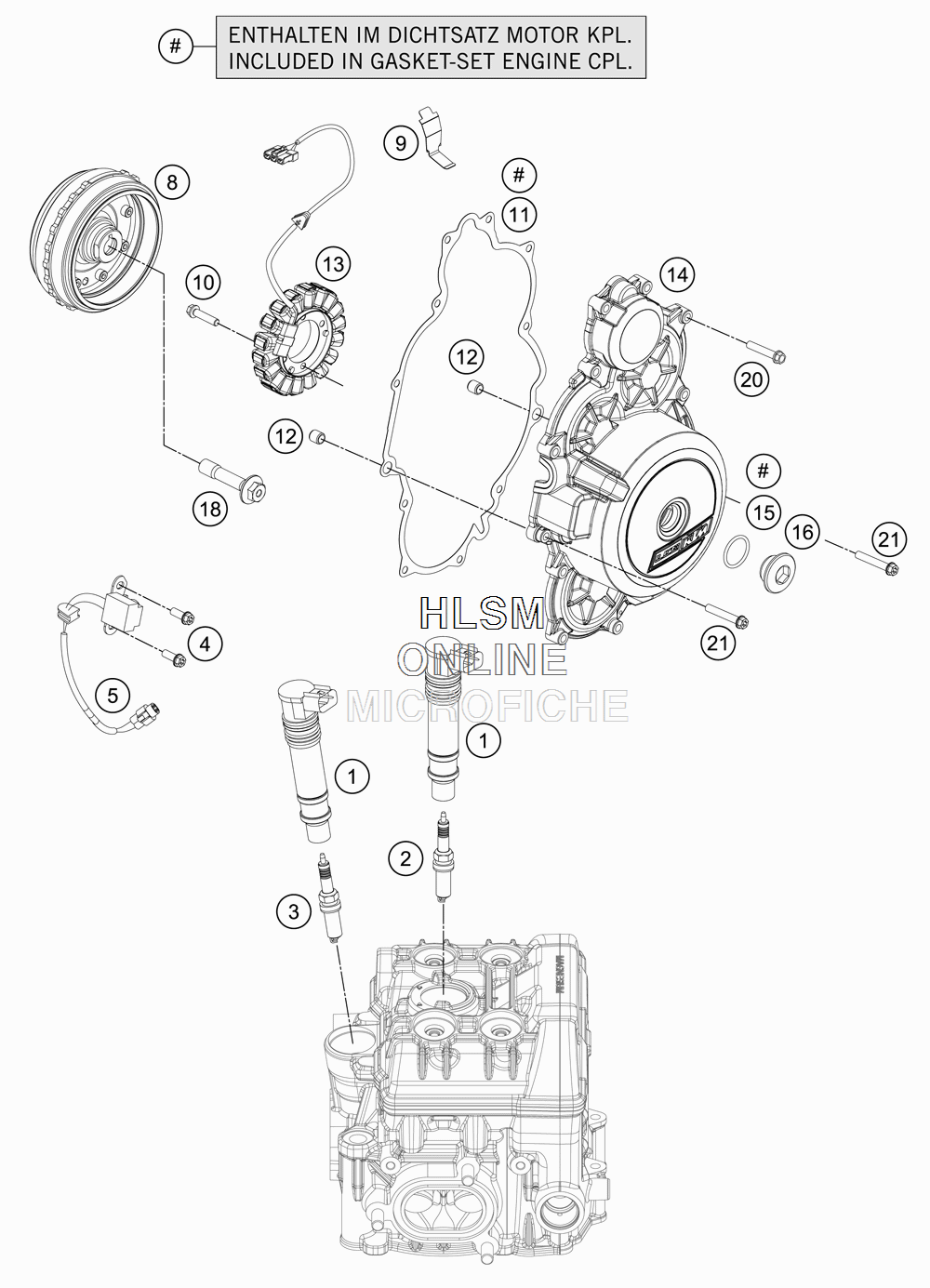

IGNITION SYSTEM для Ktm 1190 RC8 R - 2014 года выпуска
-
№АртикулНазвание
-
160039006000 STICK COILSTICK COIL
-
261239093200 SPARK PLUG M12X1,25 NGK RSPARK PLUG M12X1,25 NGK R
-
369139093000 SPARK PLUG NGK "LMAR7A-9"SPARK PLUG NGK "LMAR7A-9"
-
40025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
559039034000 PULSER COIL KOKUSAN 4K3-A/BPULSER COIL KOKUSAN 4K3-A/B
-
860239105000 ROTOR ASSY.ROTOR ASSY.
-
960039040020 CABLE SUPPORT GENERATORCABLE SUPPORT GENERATOR
-
100025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
1161230040000 IGNITION COVER GASKETIGNITION COVER GASKET
-
1249030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
1360239104000 STATOR ASSY.STATOR ASSY.
-
146023010204441 IGNITION COVER WITH BEARINGIGNITION COVER WITH BEARING
-
1507700240251 O-RING 24X2,5 VITONO-RING 24X2,5 VITON
-
166003009400030 SCREW PLUG M24X1,5 PA 6.6SCREW PLUG M24X1,5 PA 6.6
-
1860339003000 SPECIAL SCREW M12X1,5 WS15SPECIAL SCREW M12X1,5 WS15
-
200025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
210025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
