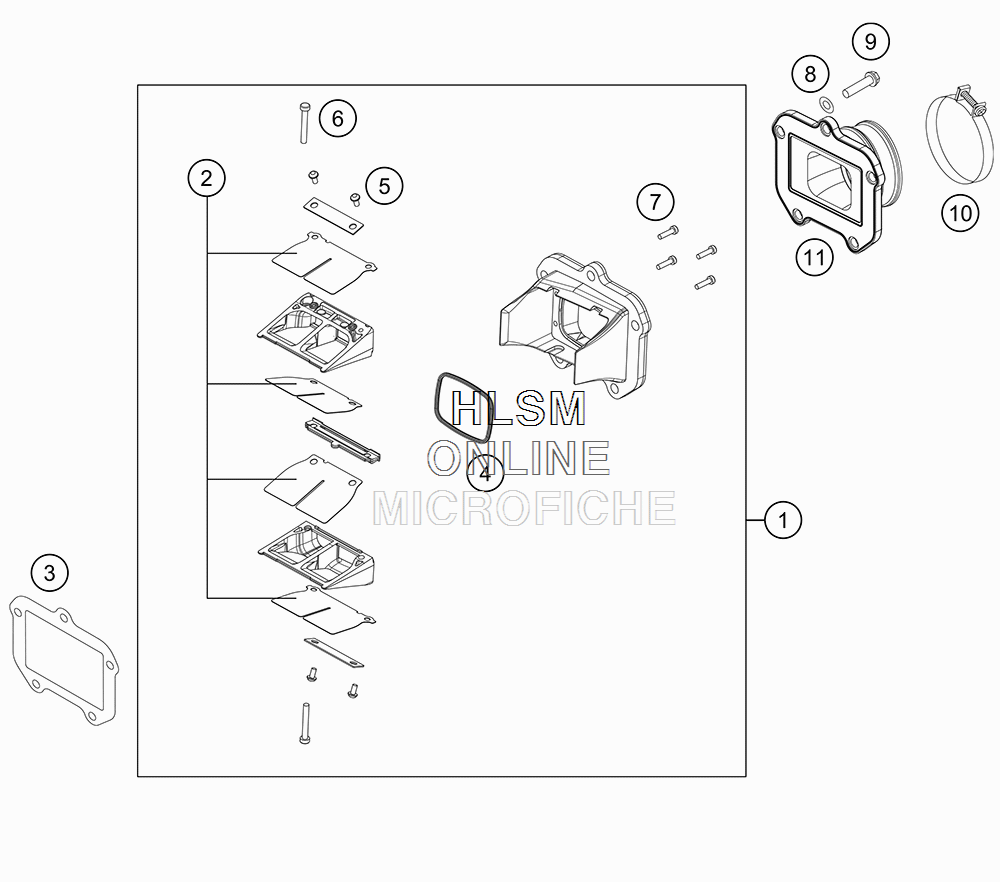

REED VALVE CASE для Ktm 125 SX - 2014 года выпуска
-
№АртикулНазвание
-
150330151044 REED VALVE ASSY CPL.REED VALVE ASSY CPL.
-
250330052344 RED VALVE-SETRED VALVE-SET
-
350330098050 GASKET REED V.PLATE V-FORCEGASKET REED V.PLATE V-FORCE
-
454830153050 GASKET SUPPORTING PLATEGASKET SUPPORTING PLATE
-
50081030063 EJOT DELTA PT SCREW 30X6EJOT DELTA PT SCREW 30X6
-
60081035253 EJOT DELTA PT SCREW 35X25EJOT DELTA PT SCREW 35X25
-
70081030124 EJOT DELTA PT SCREW 30X12EJOT DELTA PT SCREW 30X12
-
8137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
90025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
1054330061000 CLAMP 52/12 GEMICLAMP 52/12 GEMI
-
1150330050300 INTAKE FLANGEINTAKE FLANGE
