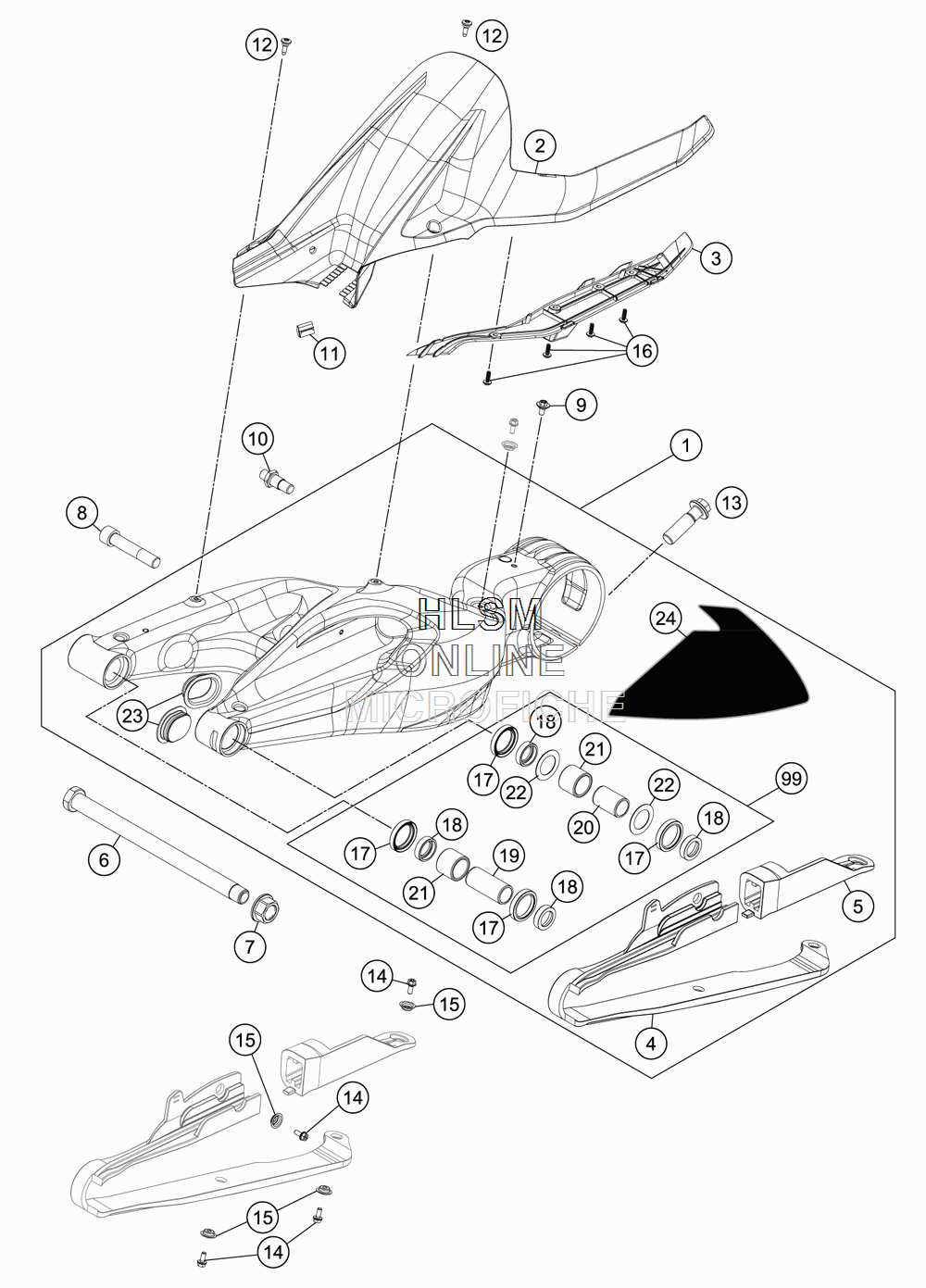

SWING ARM для Ktm 1290 SUPER DUKE BLACK - 2014 года выпуска

№

Артикул

Название
1

6130403004433 SWING ARM CPL.

SWING ARM CPL.

170 ₽
2

61304050000 SPLASH PROTECTOR

SPLASH PROTECTOR

11 330 ₽
3

61304051000 BRACKET SPLASH PROTECTOR

BRACKET SPLASH PROTECTOR

3 850 ₽
4

61304060000 CHAIN SLIDING GUARD FRONT

CHAIN SLIDING GUARD FRONT

9 930 ₽
5

61304070000 CHAIN SLIDING GUARD REAR

CHAIN SLIDING GUARD REAR

5 410 ₽
6

69004037144 SWING ARM BOLT

SWING ARM BOLT

16 440 ₽
7

60004038000 COLLAR NUT M19X1,5 WS=27MM

COLLAR NUT M19X1,5 WS=27MM

4 410 ₽
8

60004017000 SCREW M14X1,5 L=73MM

SCREW M14X1,5 L=73MM

1 190 ₽
9

83008000012 SPECIAL SCREW M6X12X3

SPECIAL SCREW M6X12X3

620 ₽
10

76004142000 BOLT BRAKE SADDLE BRACKET

BOLT BRAKE SADDLE BRACKET

7 330 ₽
11

61304042000 CABLE SUPPORT

CABLE SUPPORT

290 ₽
12

69008021060 SPECIAL SCREW M5X17

SPECIAL SCREW M5X17

620 ₽
13

61310021000 HH COLLAR SCREW M16X1,5X55

HH COLLAR SCREW M16X1,5X55

2 160 ₽
14

0025050126 HH COLLAR SCREW M5X12 TX30

HH COLLAR SCREW M5X12 TX30

500 ₽
15

46104066050 BUSH FOR CHAINSLIDER GUARD

BUSH FOR CHAINSLIDER GUARD

2 220 ₽
16

0081050141 EJOT PT SCREW 50X14 WN 1451

EJOT PT SCREW 50X14 WN 1451

240 ₽
17

0760304073 SHAFT SEAL RING 30X40X7

SHAFT SEAL RING 30X40X7

760 ₽
18

60004034000 BUCKET F. SHAFT SEAL RING

BUCKET F. SHAFT SEAL RING

1 840 ₽
19

69004032000 INNER RING JR 20X25X56,5

INNER RING JR 20X25X56,5

9 760 ₽
20

60004032000 INNER RING JR 20X25X38,5

INNER RING JR 20X25X38,5

4 440 ₽
21

60004031000 NEEDLE BUSH HK2526B

NEEDLE BUSH HK2526B

2 680 ₽
22

60004033000 STOP DISK

STOP DISK

380 ₽
23

61304041000 PLUG CAP SWING ARM

PLUG CAP SWING ARM

2 340 ₽
24

61304030010 STICKER SWING ARM BLACK

STICKER SWING ARM BLACK

4 670 ₽
99

69004230010 SWING ARM REP. KIT

SWING ARM REP. KIT

26 030 ₽
