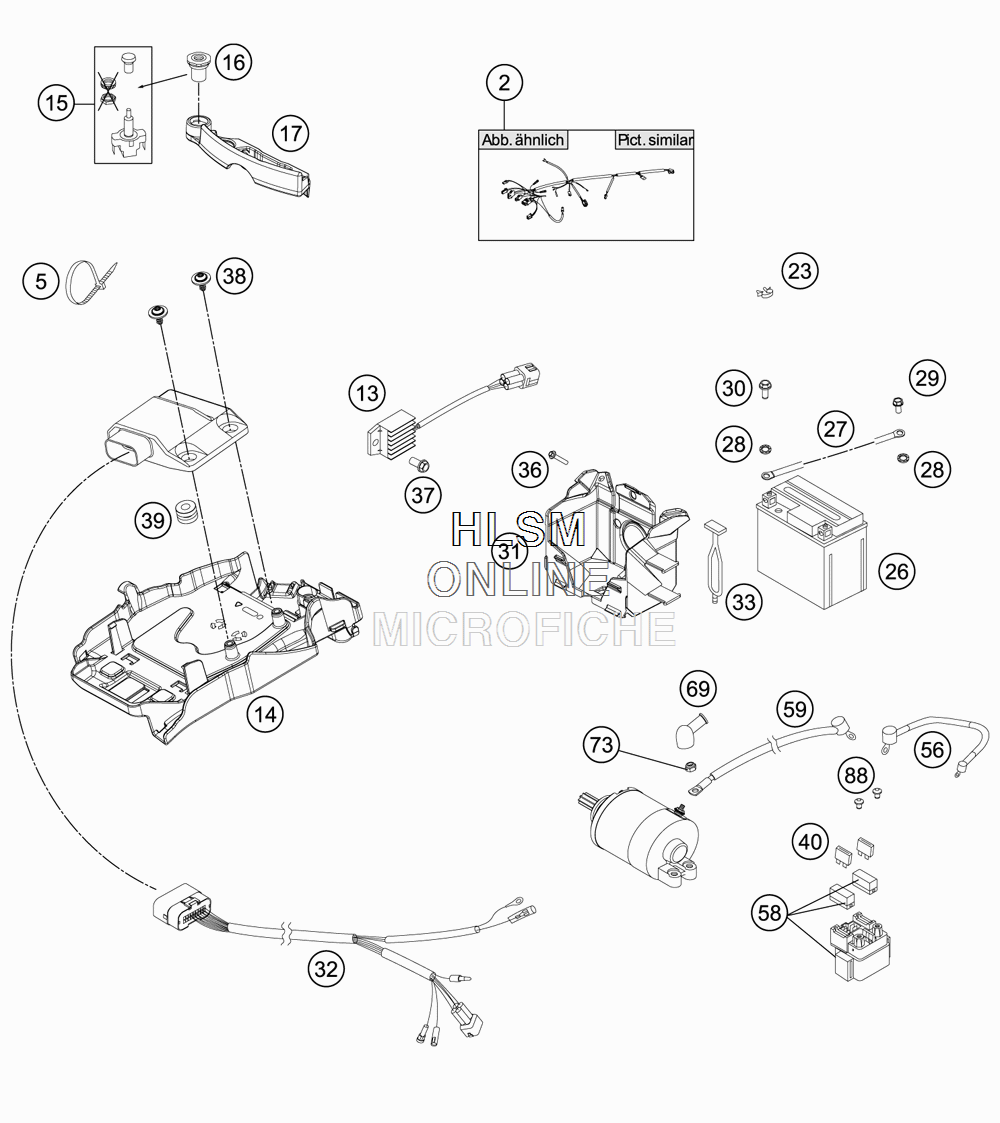

WIRING HARNESS для Ktm 200 XC - 2014 года выпуска
-
№АртикулНазвание
-
254811075800 WIRING HARNESSWIRING HARNESS
-
544011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
544011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
544011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
1380011034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
1451511094100 ELECTRIC CASEELECTRIC CASE
-
1555011599000 PULL SWITCH LOOSEPULL SWITCH LOOSE
-
1654814060050 SPEC. NUT F. PULL SWITCH WS=17SPEC. NUT F. PULL SWITCH WS=17
-
1754814060100 SPEEDOMETER BRACKETSPEEDOMETER BRACKET
-
2357013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
2658511053000 BATTERY 12V 4AH YTX5L-BSBATTERY 12V 4AH YTX5L-BS
-
2758411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
2858411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
290009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
300025050126 HH COLLAR SCREW M5X12 TX30HH COLLAR SCREW M5X12 TX30
-
3178111055000 BATTERY CASEBATTERY CASE
-
3254839032200 WIRING HARNESS FOR CDI 2-ST.WIRING HARNESS FOR CDI 2-ST.
-
3350303018000 RUBBER L=145MMRUBBER L=145MM
-
360025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
370026060136 COLLAR SCREW M6X13 ISA30COLLAR SCREW M6X13 ISA30
-
380081645121 EJOT DELTA PT SCREW 45X12-ZEJOT DELTA PT SCREW 45X12-Z
-
3958214069051 RUBBER GROMMET 16X10,8X3 02RUBBER GROMMET 16X10,8X3 02
-
4058011109110 FUSE 10 AFUSE 10 A
-
5658711086000 WIRING HARNESS BATTERYWIRING HARNESS BATTERY
-
5858211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
5955111059000 STARTERCABLE 1100MM 07STARTERCABLE 1100MM 07
-
6958440099000 PROTECTION CAP F. STARTER ENG.PROTECTION CAP F. STARTER ENG.
-
730985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
880902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT PISTON
- CYLINDER CYLINDER HEAD
- DECAL
- ELECTRIC STARTER
- ENGINE CASE
- EXHAUST CONTROL
- EXHAUST SYSTEM
- FRAME
- FRONT FORK DISASSEMBLED
- FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR CONTROLS
- IGNITION SYSTEM
- INSTRUMENTS / LOCK SYSTEM
- KICK STARTER
- LIGHTING SYSTEM
- MASK FENDER
- REAR BRAKE CONTROL
- REAR WHEEL
- REED VALVE CASE
- SHIFTING MECHANISM
- SHOCK ABSORBER
- SHOCK ABSORBER DISASSEMBLED
- SIDE / CENTER STAND
- SWING ARM
- TANK SEAT COVER
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
- • WIRING HARNESS
- WP SHIMS FOR SETTING
