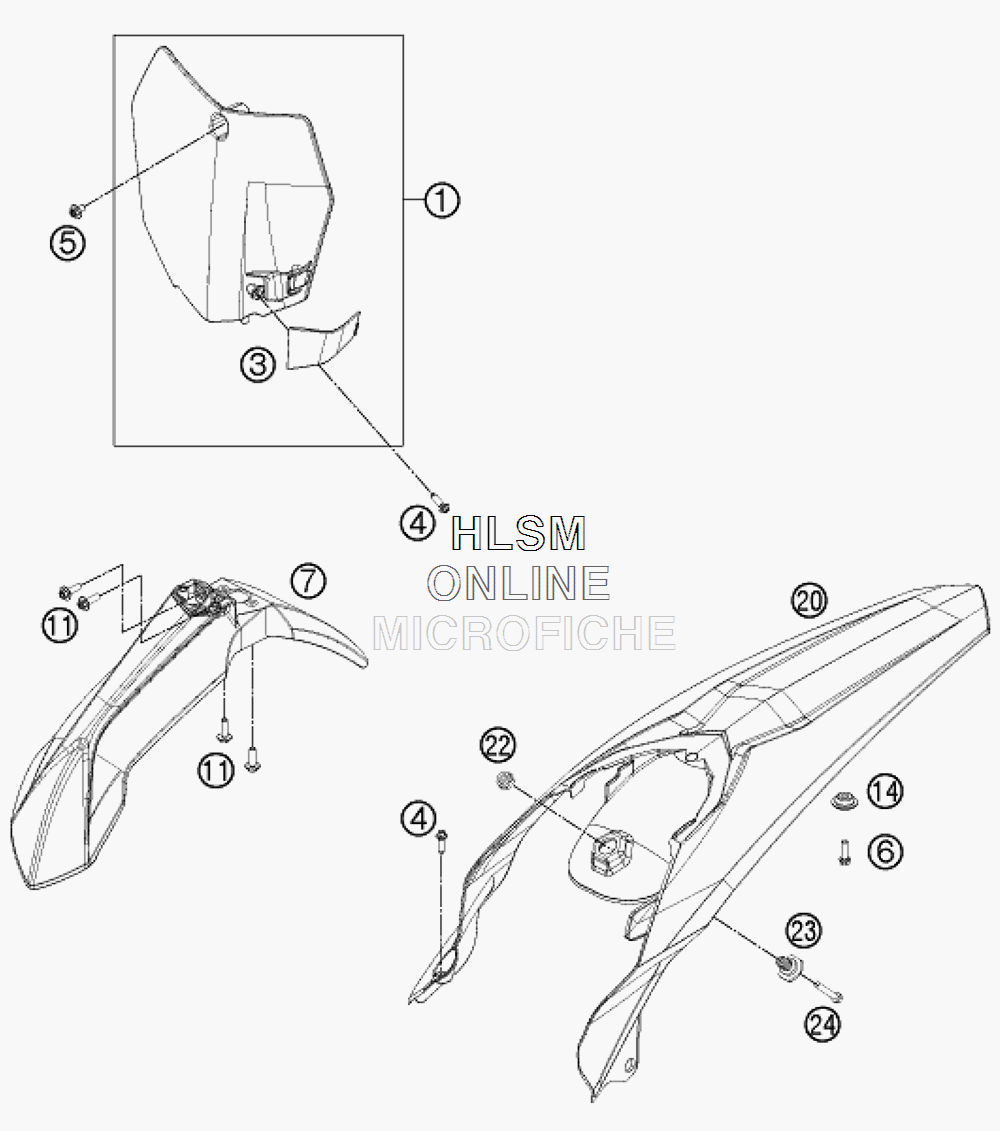

MASK FENDERS для Ktm 250 SX - 2014 года выпуска
-
№АртикулНазвание
-
17770800704428 START NUMBER PLATE WHITESTART NUMBER PLATE WHITE
-
37770802200030 BRAKE HOSE GUIDE BLACKBRAKE HOSE GUIDE BLACK
-
40017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
50024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
60025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
77770801000004 FRONT FENDER ORANGEFRONT FENDER ORANGE
-
110025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
1477308013010 COLLAR BUSH. F.REAR FENDERCOLLAR BUSH. F.REAR FENDER
-
207720801300004 REARPART ORANGEREARPART ORANGE
-
2250314057050 COLLAR NUT M12X1/WS17 H=5MMCOLLAR NUT M12X1/WS17 H=5MM
-
2354807048000 BUSHING FOR SEAT FASTENINGBUSHING FOR SEAT FASTENING
-
240025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
