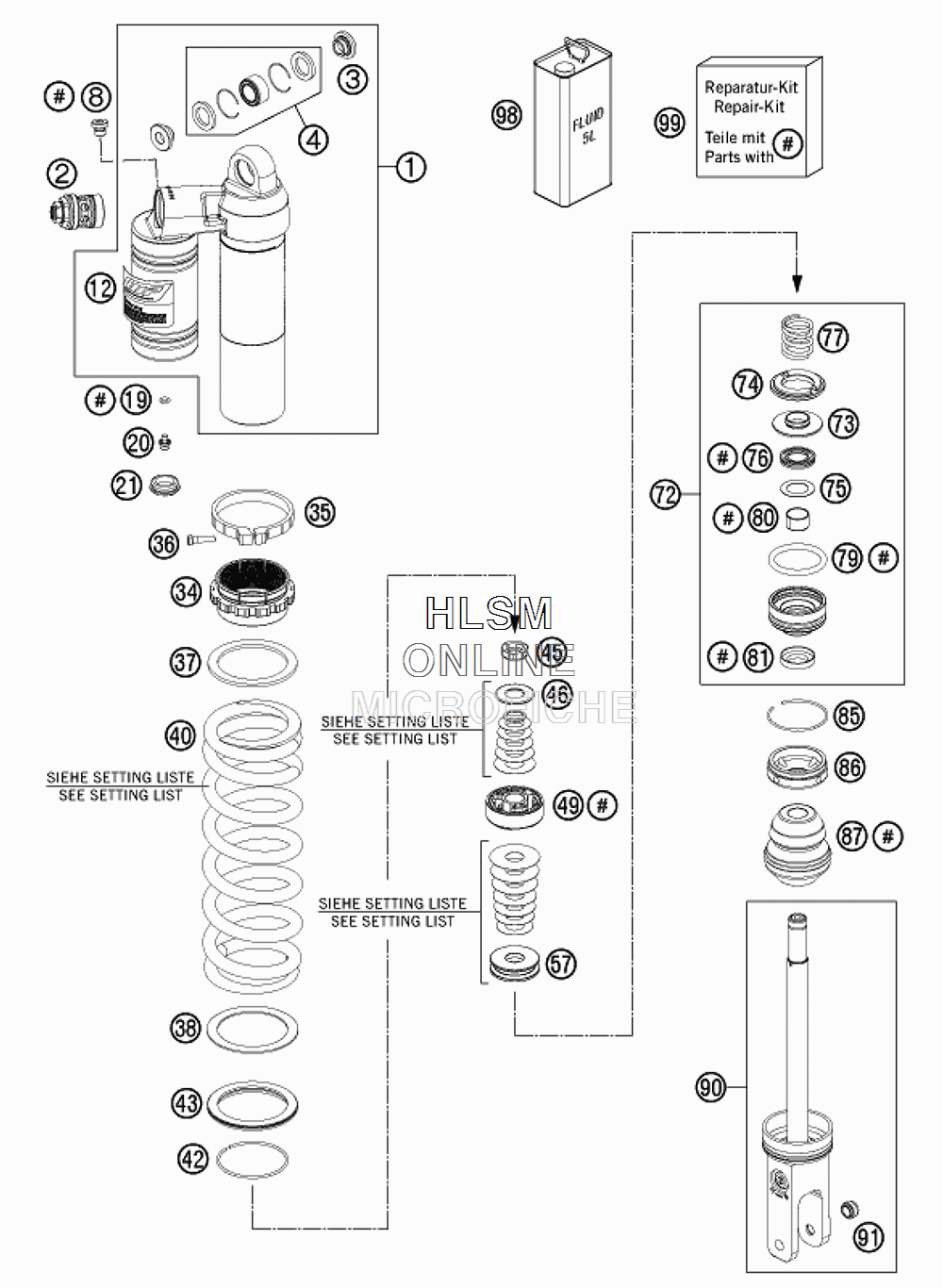

SHOCK ABSORBER DISASSEMBLED для Ktm 250 XCF - 2014 года выпуска

№

Артикул

Название
1

50180944S1 MONOSHOCK UPPER PART CPL.

MONOSHOCK UPPER PART CPL.

108 260 ₽
2

50180213S17 DCC COMPR.DAMP.CON.

DCC COMPR.DAMP.CON.

43 810 ₽
3

46180010 BUSH KGW 10X24

BUSH KGW 10X24

920 ₽
4

R12012 REP. KIT BEAR./SEAL UP.

REP. KIT BEAR./SEAL UP.

16 860 ₽
8

50180095 BLEED PLUG R 1/8

BLEED PLUG R 1/8

990 ₽
12

52000087 STICKER WP MONOSHOCK

STICKER WP MONOSHOCK

2 840 ₽
19

46810893 O-RING NBR 5,28X1,78

O-RING NBR 5,28X1,78

140 ₽
20

36120151 SCREW PLUG M5X6

SCREW PLUG M5X6

2 840 ₽
21

46811208 RUBBER CAP "DO NOT OPEN"

RUBBER CAP "DO NOT OPEN"

540 ₽
34

50180938 ADJUSTING NUT PLASTIC

ADJUSTING NUT PLASTIC

9 480 ₽
35

50180937 TENSIONING RING D64 H10

TENSIONING RING D64 H10

6 190 ₽
36

14460042 %ALLENHEAD SCREW M5 L=20 STAIN

%ALLENHEAD SCREW M5 L=20 STAIN

240 ₽
37

50180965 SPACER RING SPRING 61,3X78X3

SPACER RING SPRING 61,3X78X3

2 920 ₽
38

50180793 SPACER RING ADJUSTING NUT

SPACER RING ADJUSTING NUT

550 ₽
40

91210081S SPRING 260 48 N/MM ORANGE

SPRING 260 48 N/MM ORANGE

40 810 ₽
40

91210082S SPRING 260 51N/MM D11,25 OR.

SPRING 260 51N/MM D11,25 OR.

40 810 ₽
40

91210083S SPRING 260 54N/MM D11,5 OR.

SPRING 260 54N/MM D11,5 OR.

40 810 ₽
40

91210084S SPRING 260 57N/MM D11,75 OR.

SPRING 260 57N/MM D11,75 OR.

40 810 ₽
40

91210089S SPRING 260 60 N/MM ORANGE

SPRING 260 60 N/MM ORANGE

40 810 ₽
40

91210085SA SPRING 45-260 D11 ORANGE CPL.

SPRING 45-260 D11 ORANGE CPL.

77 170 ₽
42

50180273 CIRCLIP 58,2X2

CIRCLIP 58,2X2

440 ₽
43

50180824 VALVE SPRING D80 CLOSED

VALVE SPRING D80 CLOSED

6 940 ₽
45

50180141 PISTON ROD NUT M16X1

PISTON ROD NUT M16X1

2 480 ₽
46

50180836 REBOUND DISC 16X34 T2 H0

REBOUND DISC 16X34 T2 H0

2 480 ₽
49

50180786S PISTON D50

PISTON D50

12 950 ₽
57

50180961 REBOUND DISC D16X43 H12

REBOUND DISC D16X43 H12

6 070 ₽
72

50180603SA ADAPTER D50 H28 CPL.

ADAPTER D50 H28 CPL.

20 730 ₽
73

50180800 SPRING RING

SPRING RING

1 920 ₽
74

50180798 REBOUND RUBBER

REBOUND RUBBER

980 ₽
75

50180604 SHIM D29,75 X D19 X T0,4 08

SHIM D29,75 X D19 X T0,4 08

370 ₽
76

50180605S SEAL D18X30X5 08

SEAL D18X30X5 08

11 040 ₽
77

50180780 REBOUND SPRING

REBOUND SPRING

3 720 ₽
79

50180103 O-RING 41X5

O-RING 41X5

110 ₽
80

50180974 DU-BUSHING 18X20X12

DU-BUSHING 18X20X12

3 140 ₽
81

50180606 DUST SEAL 1828

DUST SEAL 1828

1 590 ₽
85

50180126 CIRCLIP 53X1,75

CIRCLIP 53X1,75

190 ₽
86

50180626 RESERVOIR CAP D=50 H=10

RESERVOIR CAP D=50 H=10

12 380 ₽
87

50180775 BUMP RUBBER

BUMP RUBBER

5 170 ₽
90

50180773SA1 MONOSHOCK BOTTOM PART CPL.

MONOSHOCK BOTTOM PART CPL.

134 550 ₽
91

46811205 ADAPTOR-BUSH M10X1,50, D=15

ADAPTOR-BUSH M10X1,50, D=15

1 550 ₽
98

50180751S1 SHOCK ABSORBER FLUID 5 LT

SHOCK ABSORBER FLUID 5 LT

53 390 ₽
99

R12020 REPAIR KIT

REPAIR KIT

38 220 ₽
