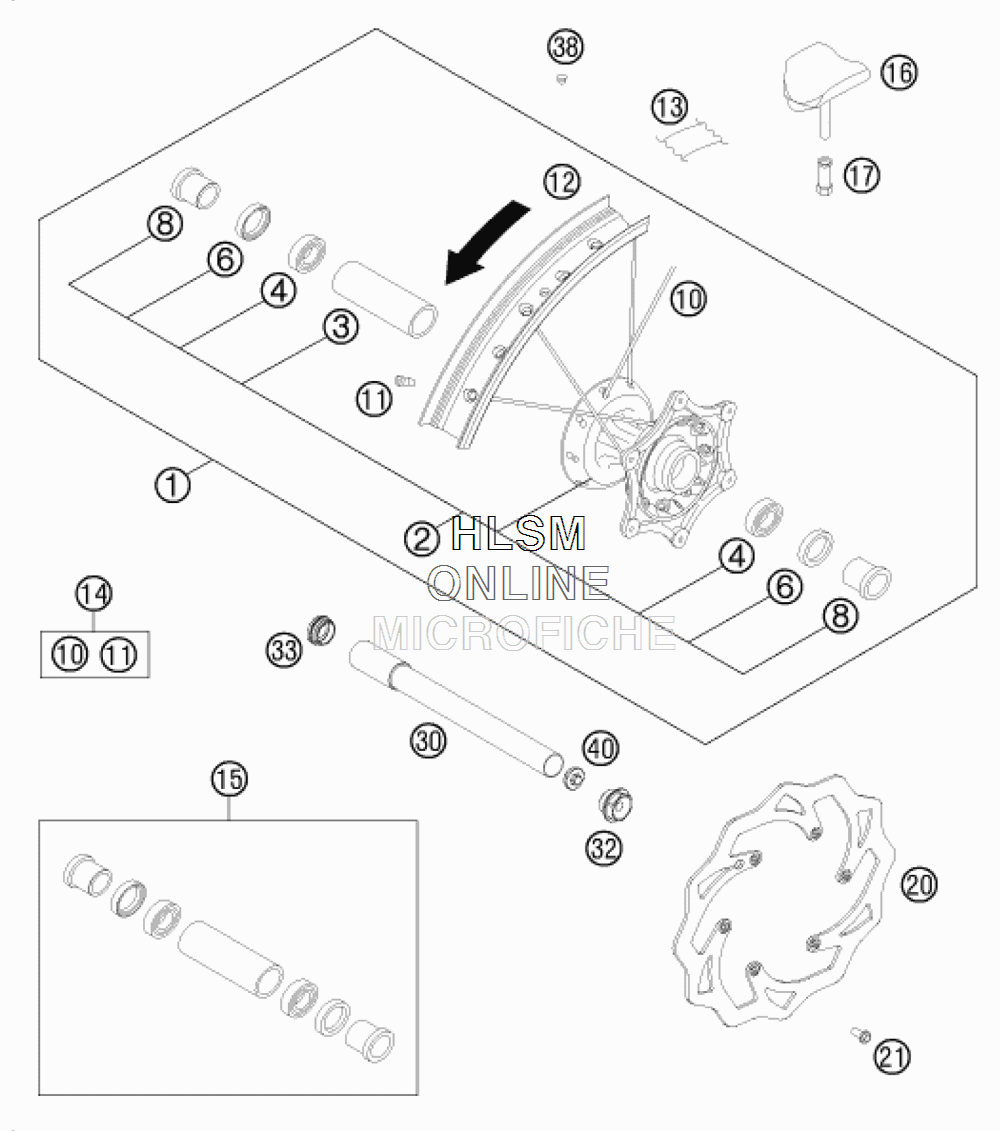

FRONT WHEEL для Ktm 300 XC-W SIX DAYS - 2014 года выпуска
-
№АртикулНазвание
-
178109001044 FRONT WHEEL CPL. 1,6X21" XCFRONT WHEEL CPL. 1,6X21" XC
-
278009010144 FRONT WHEEL HUB CPL.FRONT WHEEL HUB CPL.
-
354809011000 BEA.SPACERTUBE 35X2 L=79,4BEA.SPACERTUBE 35X2 L=79,4
-
40625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
60760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
878009012000 SPACER BUSHING F. FR. WHEELSPACER BUSHING F. FR. WHEEL
-
107710907122630 SPOKE M4,5X226- 21" BLACKSPOKE M4,5X226- 21" BLACK
-
1177109072000 SPOKE NIPPLE M4,5 ALSPOKE NIPPLE M4,5 AL
-
1278109070000 RIM FRONT 1,6X21" EXCEL AL7RIM FRONT 1,6X21" EXCEL AL7
-
1350309073000 RIM BAND 21"RIM BAND 21"
-
1400050000954 SPOKE KIT FRONT "21" BLACKSPOKE KIT FRONT "21" BLACK
-
1578009015000 FRONT WHEEL REP. KITFRONT WHEEL REP. KIT
-
1678109090000 RIM LOCK 1,60"RIM LOCK 1,60"
-
1777110090050 % NUT FOR WHEEL HOLDER% NUT FOR WHEEL HOLDER
-
2077309060000 BRAKE DISC FRONT 260BRAKE DISC FRONT 260
-
2159009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
3077309081000 WHEEL SPIN.FR. D=26 M24X1,5 07WHEEL SPIN.FR. D=26 M24X1,5 07
-
3254809082000 SPINDLE SCREW M24X1,5 WS=27SPINDLE SCREW M24X1,5 WS=27
-
3354809081050 PLUG BUSHING WS=27PLUG BUSHING WS=27
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
4054809081070 AUXILIARY SCREW FRONTAUXILIARY SCREW FRONT
