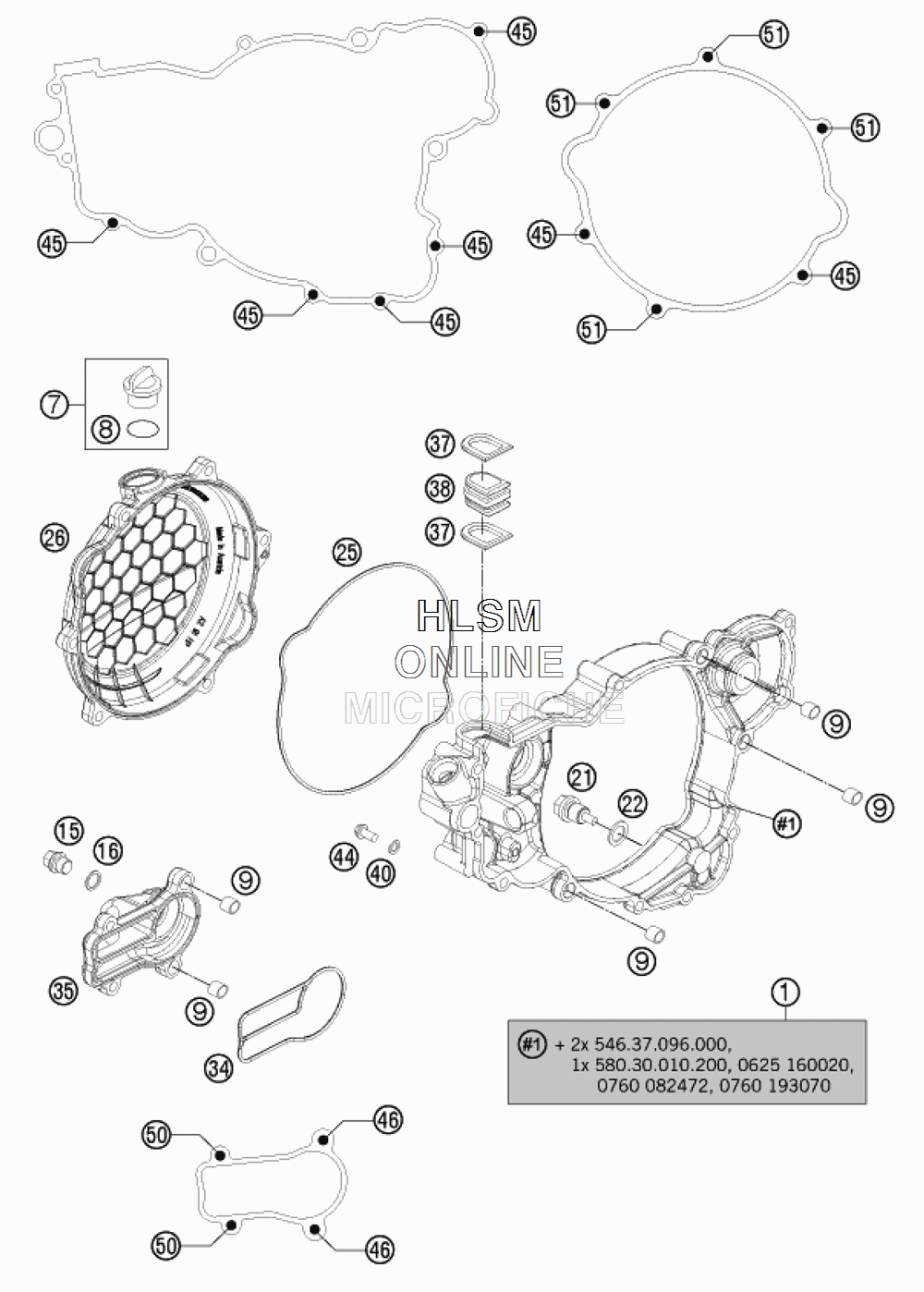

CLUTCH COVER для Ktm 300 XC - 2014 года выпуска
-
№АртикулНазвание
-
154830001244 INTERM. CLUTCH COVER CPL.INTERM. CLUTCH COVER CPL.
-
758030120000 OIL FILLER CAP M24X3 WITH O-RINGOIL FILLER CAP M24X3 WITH O-RING
-
80770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
949030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
150910100003 PLUG DIN0910-M 10X1PLUG DIN0910-M 10X1
-
160603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
2158030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
2258038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
2555130027000 CLUTCH COVER GASKETCLUTCH COVER GASKET
-
265513002610015 CLUTCH OUTSIDE COVERCLUTCH OUTSIDE COVER
-
3454835003000 GASKET WAPU-COVERGASKET WAPU-COVER
-
3554835001100 WATERPUMP COVERWATERPUMP COVER
-
3754637107000 SEALING ELEMENT BOTTOMSEALING ELEMENT BOTTOM
-
3854837091100 SEALING CARRIERSEALING CARRIER
-
400603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
440025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
450025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
460025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
500025060556 HH COLLAR SCREW M6X55 TX30HH COLLAR SCREW M6X55 TX30
-
510025060606 HH COLLAR SCREW M6X60 TX30HH COLLAR SCREW M6X60 TX30
