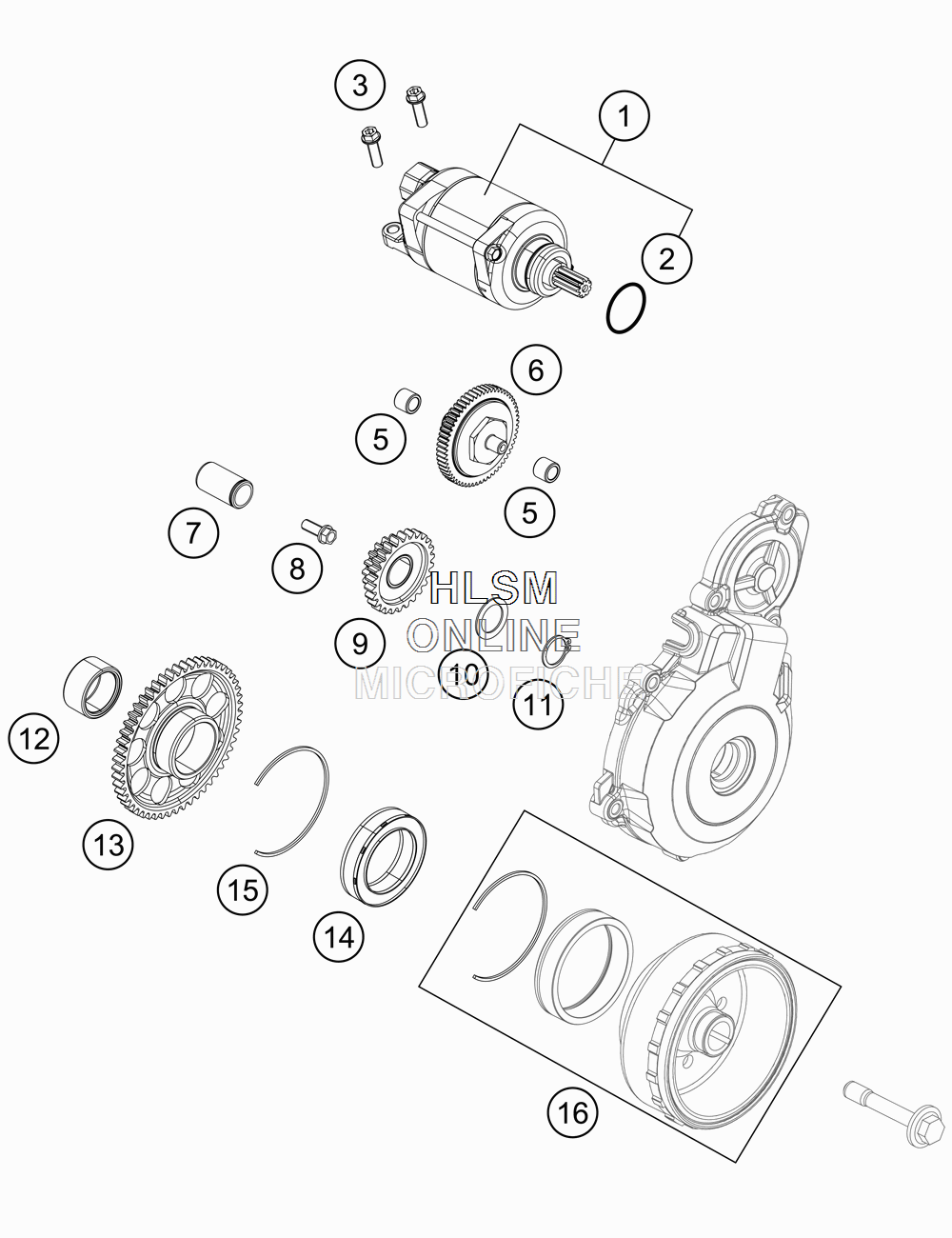

ELECTRO STARTER для Ktm 350 XCF-W - 2014 года выпуска
-
№АртикулНазвание
-
177240001100 E-STARTER ENGINE CPL.E-STARTER ENGINE CPL.
-
20770250030 O-RING 25,00X3,00 NBR 70O-RING 25,00X3,00 NBR 70
-
30025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
50618081210 NEEDLE BUSH HK 0810 DIN 618NEEDLE BUSH HK 0810 DIN 618
-
677240116000 TORQUE LIMITERTORQUE LIMITER
-
759040028000 BUSHING PINBUSHING PIN
-
80015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
977240122000 STARTER INTERMEDIATE GEARSTARTER INTERMEDIATE GEAR
-
1054633090000 STOP DISK 17,2X25X1STOP DISK 17,2X25X1
-
110471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
120618253216 NEEDLE BUSH HK2516 25/32/16NEEDLE BUSH HK2516 25/32/16
-
1377840120000 FREEWHEELER GEARFREEWHEELER GEAR
-
1480040026000 FREE WHEELFREE WHEEL
-
150472057150 CIRCLIP DIN0472-57X1,50CIRCLIP DIN0472-57X1,50
-
1677539005144 ROTOR EFI CPL.ROTOR EFI CPL.
