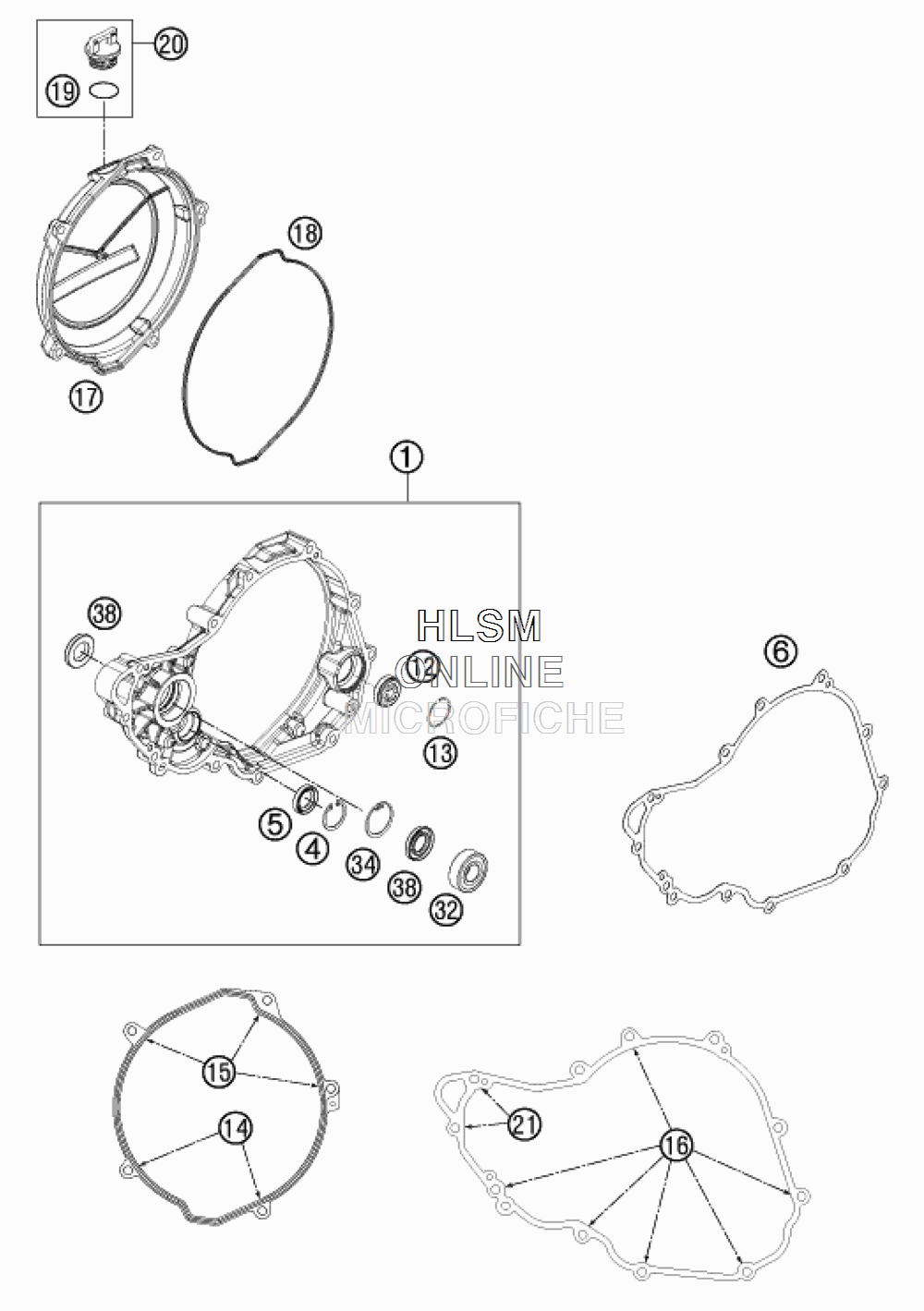

CLUTCH COVER для Ktm 350 XCF - 2014 года выпуска
-
№АртикулНазвание
-
177730001144 CLUTCH COVER CPL.CLUTCH COVER CPL.
-
40472024120 CIRCLIP DIN0472-24X1.2CIRCLIP DIN0472-24X1.2
-
50760142450 SHAFT SEAL RING 14X24X5 VITONSHAFT SEAL RING 14X24X5 VITON
-
677730025000 CLUTCH COVER GASKETCLUTCH COVER GASKET
-
1259030019100 OIL LEVEL GLASSOIL LEVEL GLASS
-
1361030019050 CIRCLIP OIL LEVEL GLASSCIRCLIP OIL LEVEL GLASS
-
140025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
150025060456 HH COLLAR SCREW M6X45 TX30HH COLLAR SCREW M6X45 TX30
-
160025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
177723002600015 CLUTCH COVER OUTSIDECLUTCH COVER OUTSIDE
-
1877230027000 GASKET FOR OUTER CLUTCH COVERGASKET FOR OUTER CLUTCH COVER
-
190770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
2058030120000 OIL FILLER CAP M24X3 WITH O-ROIL FILLER CAP M24X3 WITH O-R
-
210025060406 HH COLLAR SCREW M6X40 TX30HH COLLAR SCREW M6X40 TX30
-
320625062022 BALL BEARING 6202 C0 2BALL BEARING 6202 C0 2
-
340472300120 CIRCLIP 30X1,2CIRCLIP 30X1,2
-
3807601530451 SHAFT SEAL RING 15X30X4.5 BAUDSHAFT SEAL RING 15X30X4.5 BAUD
