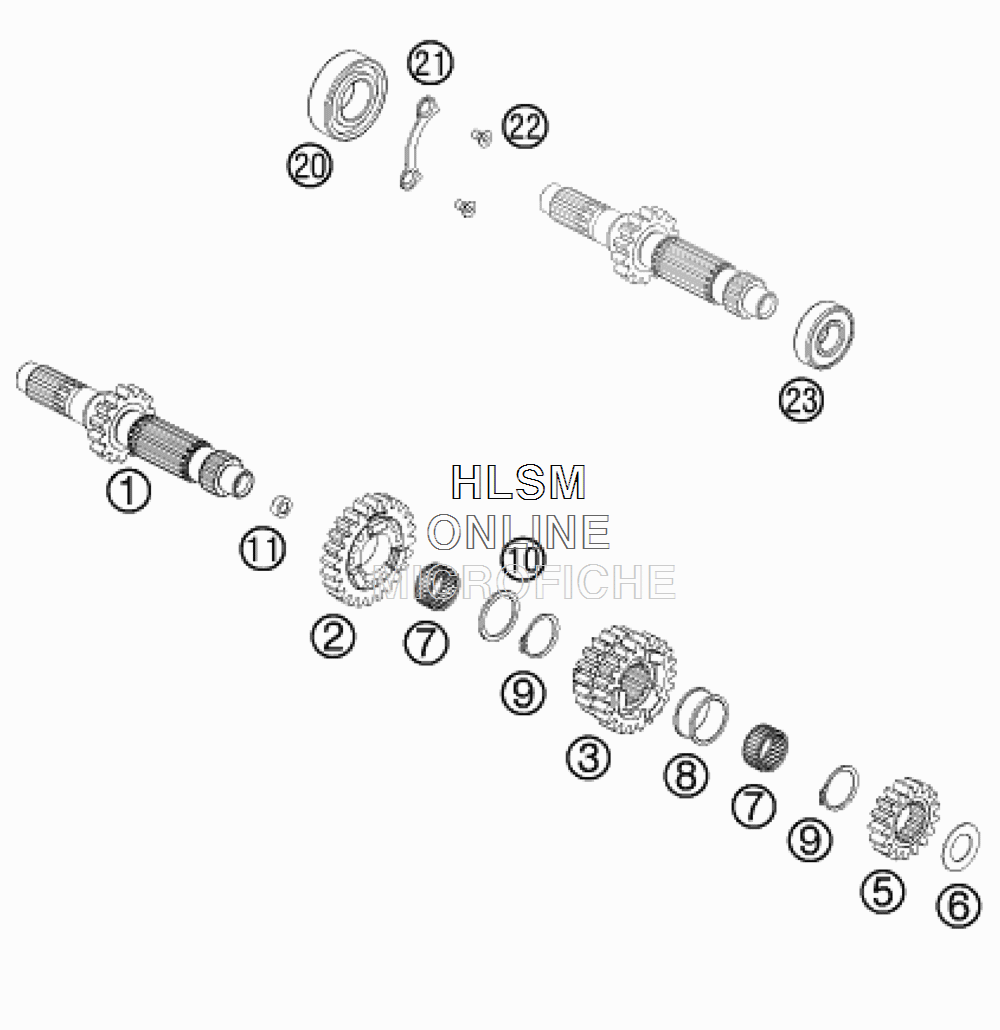

TRANSMISSION - MAIN SHAFT для Ktm 450 SMR - 2014 года выпуска
-
№АртикулНазвание
-
178933001050 MAIN SHAFT 16 T.MAIN SHAFT 16 T.
-
278933005000 IDLER GEAR 5.G.IDLER GEAR 5.G.
-
378933003000 SLIDING GEAR 3/4 G.SLIDING GEAR 3/4 G.
-
578933002000 SOLID GEAR 2.G.SOLID GEAR 2.G.
-
656033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
-
70405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
878933032000 SPACER SLEEVESPACER SLEEVE
-
90471250120 CIRCLIP DIN0471-25X1,2CIRCLIP DIN0471-25X1,2
-
1078033031000 STOP DISK 26 X 32 X 1,5STOP DISK 26 X 32 X 1,5
-
1178033001110 BUSHINGBUSHING
-
20625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
2178033032000 TAB WASHER BEARING MAIN SHAFTTAB WASHER BEARING MAIN SHAFT
-
220019050106S INT. TORX FLAT HEAD M5X10 10.9INT. TORX FLAT HEAD M5X10 10.9
-
230625062036 BALL BEARING 6203 RSH C3BALL BEARING 6203 RSH C3
