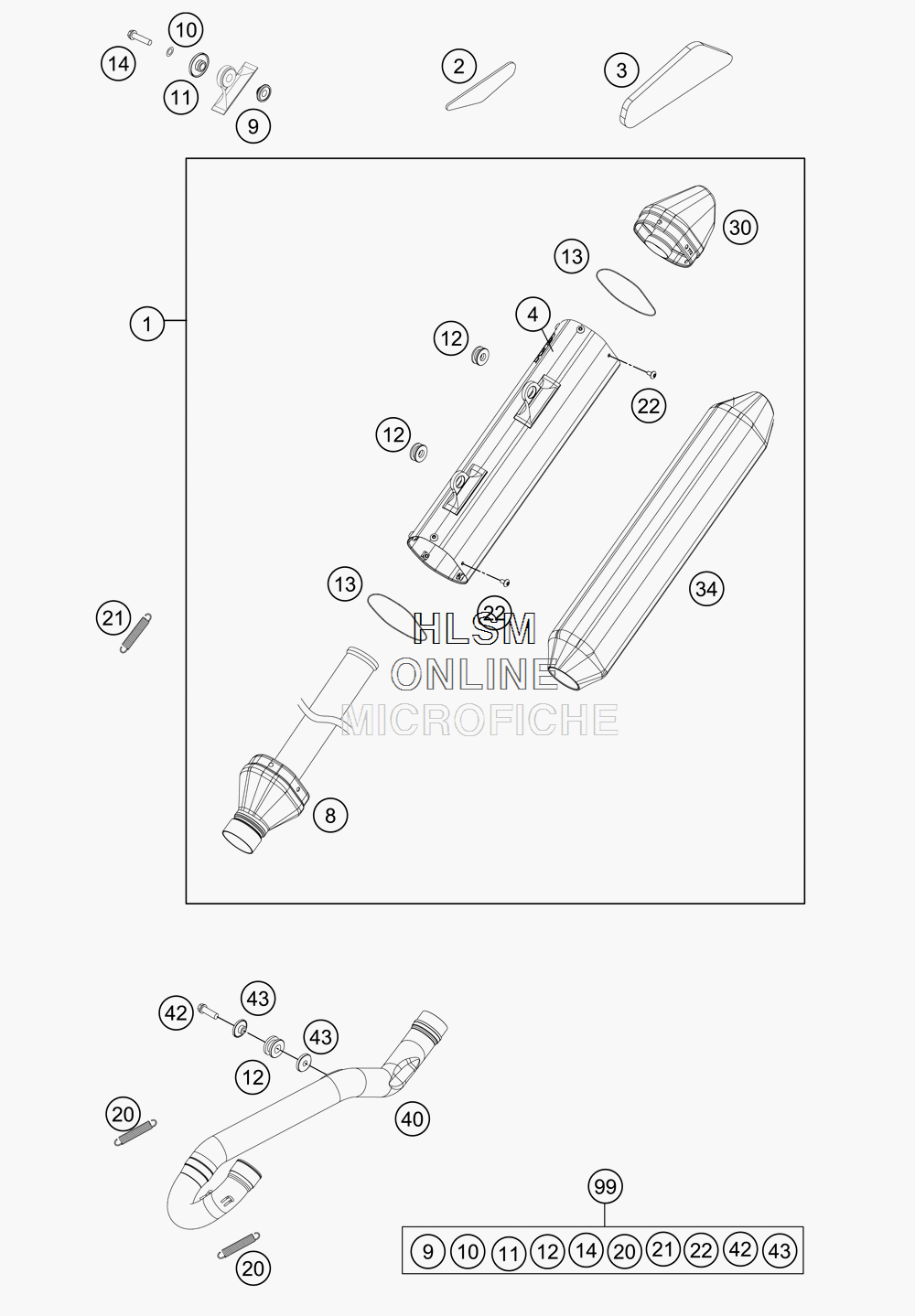

EXHAUST SYSTEM для Ktm 450 XCF - 2014 года выпуска
-
№АртикулНазвание
-
177705079000 SILENCERSILENCER
-
277308013050 THERMAL PROTECTION FOILTHERMAL PROTECTION FOIL
-
377208013050 THERMAL PROTECTION FOILTHERMAL PROTECTION FOIL
-
477705079080 SILENCER HOUSINGSILENCER HOUSING
-
877705079050 CONNECTING CAP CPL.CONNECTING CAP CPL.
-
977205069000 BUSHING 7.5X12X20X8.2BUSHING 7.5X12X20X8.2
-
100137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1177205169000 BUSHING 7.5X12X28X8.3BUSHING 7.5X12X28X8.3
-
1277205068000 DAMP. COMPON. BLACKDAMP. COMPON. BLACK
-
130770740015 O-RING 74,00X1,50 FKM 75SHO-RING 74,00X1,50 FKM 75SH
-
140025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
2050305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
2150305116000 TEN.SPRING L=75MM EY.MOVEABLETEN.SPRING L=75MM EY.MOVEABLE
-
2278105081010 SCREW TORX M5X10SCREW TORX M5X10
-
3077705079060 ENDCAP CPL.ENDCAP CPL.
-
3477705078640 ROCKWOOL PREFORMEDROCKWOOL PREFORMED
-
4078905007000 EXHAUSTEXHAUST
-
420025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
4359405069000 BUSHING FOR EXHAUST SUPPORTBUSHING FOR EXHAUST SUPPORT
-
9900050000815 EXHAUST PARTS KITEXHAUST PARTS KIT
