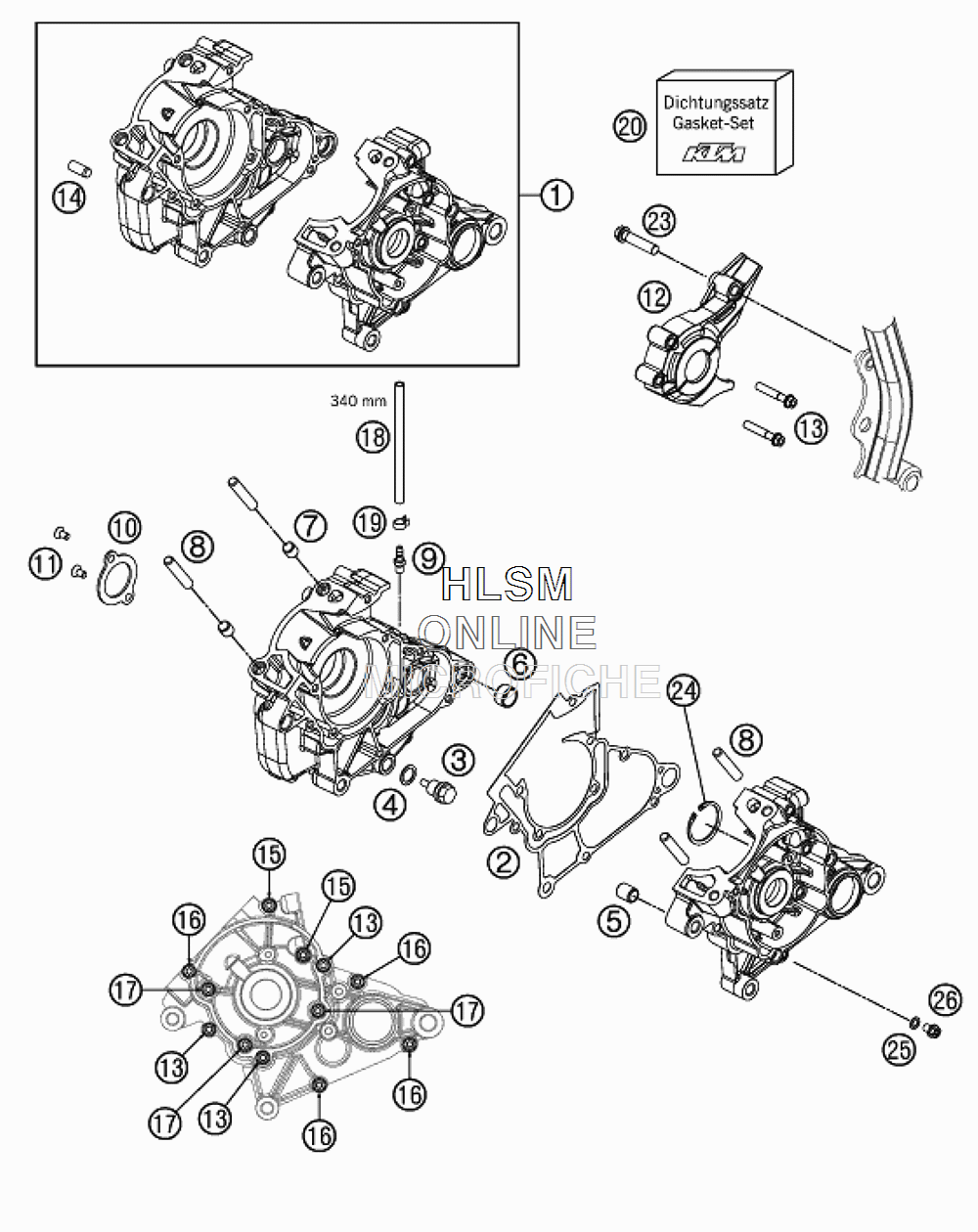

ENGINE CASE для Ktm 50 SX MINI - 2014 года выпуска

№

Артикул

Название
1

45230000233 ENGINE CASE CPL.

ENGINE CASE CPL.

104 990 ₽
2

45230039000 ENGINE CASE GASKET

ENGINE CASE GASKET

3 620 ₽
3

58030021000 OILDRAIN PLUG W.MAG. M 12X1,5

OILDRAIN PLUG W.MAG. M 12X1,5

2 800 ₽
4

58038022000 CU-SEAL RING DIN7603-12X18X1,5

CU-SEAL RING DIN7603-12X18X1,5

440 ₽
5

46230024000 DOWEL 12X9X14,5

DOWEL 12X9X14,5

1 730 ₽
6

58330023000 DOWEL 17 X 14 X 9,5

DOWEL 17 X 14 X 9,5

1 260 ₽
7

46230023000 DOWEL 10X8,2X10

DOWEL 10X8,2X10

1 170 ₽
8

46030043000 STUD M8X41

STUD M8X41

1 550 ₽
9

58336020190 VACUUM CONECTION M6/3MM

VACUUM CONECTION M6/3MM

1 050 ₽
10

45230017000 BEARING BRACKET

BEARING BRACKET

470 ₽
11

0019050106 INT. TORX FLAT HEAD M5X10 10.9

INT. TORX FLAT HEAD M5X10 10.9

290 ₽
12

45230060000 CHAIN GUARD

CHAIN GUARD

5 490 ₽
13

0025060356 HH COLLAR SCREW M6X35 TX30

HH COLLAR SCREW M6X35 TX30

560 ₽
14

0325080200 CYLINDER STUD DIN6325 8X20 M6

CYLINDER STUD DIN6325 8X20 M6

350 ₽
15

0025060556 HH COLLAR SCREW M6X55 TX30

HH COLLAR SCREW M6X55 TX30

700 ₽
16

0025060306 HH COLLAR SCREW M6X30 TX30

HH COLLAR SCREW M6X30 TX30

560 ₽
17

0025060406 HH COLLAR SCREW M6X40 TX30

HH COLLAR SCREW M6X40 TX30

500 ₽
18

31007007101 PVC-HOSE 4X6MM

PVC-HOSE 4X6MM

760 ₽
19

45230089000 YDNAC-CLAMP 10068 (6,8MM)

YDNAC-CLAMP 10068 (6,8MM)

150 ₽
20

45230099000 GASKET SET

GASKET SET

34 170 ₽
23

0025080356 HH COLLAR SCREW M8X35 TX40

HH COLLAR SCREW M8X35 TX40

930 ₽
24

0472035150 CIRCLIP DIN0472-35X1,5

CIRCLIP DIN0472-35X1,5

530 ₽
25

0603061001 CU-SEAL RING DIN7603-6X10X1

CU-SEAL RING DIN7603-6X10X1

320 ₽
26

0025060086 HH COLLAR SCREW M6X8 TX30

HH COLLAR SCREW M6X8 TX30

470 ₽
