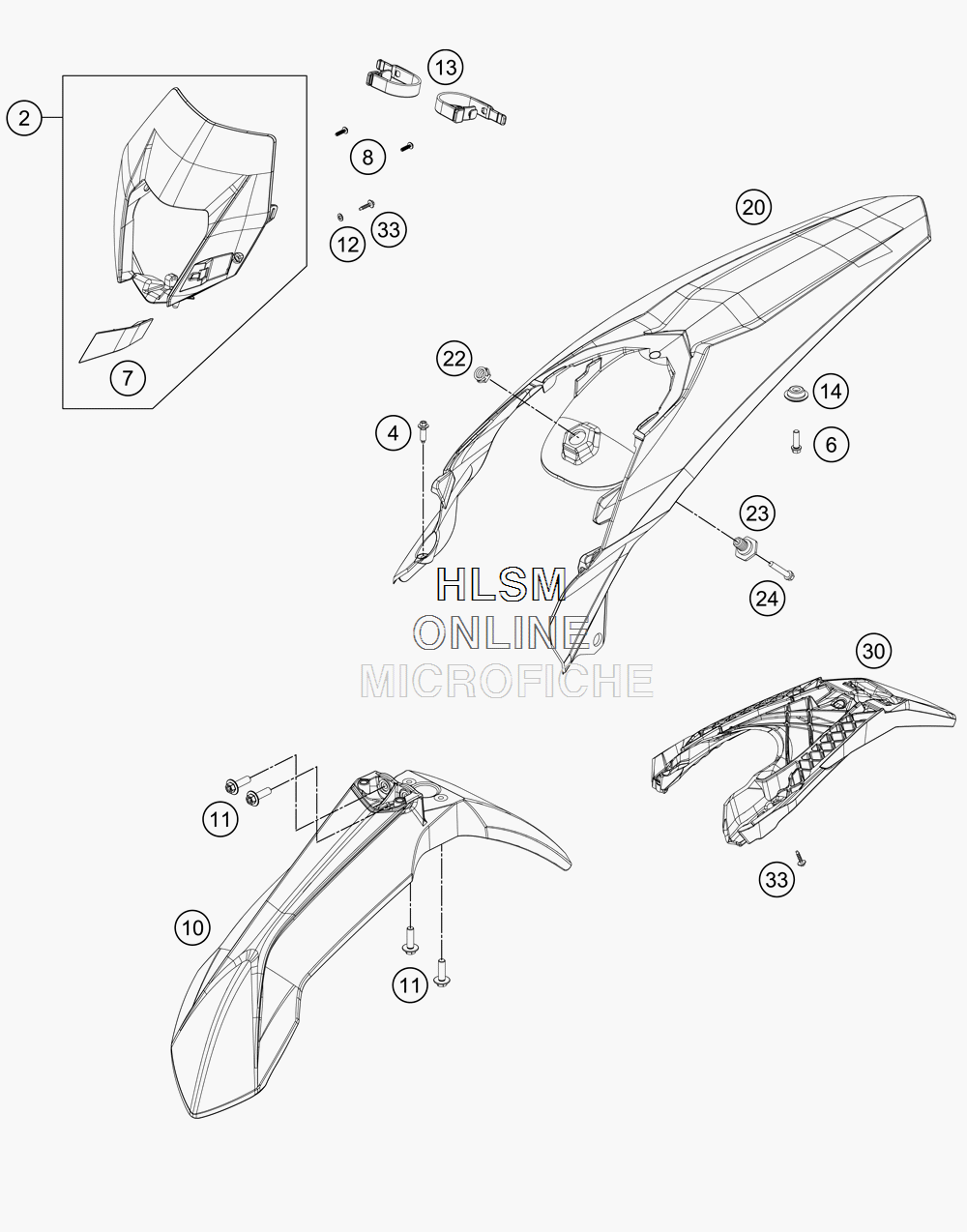

MASK FENDERS для Ktm 500 XC-W - 2014 года выпуска
-
№АртикулНазвание
-
27810800100028 HEAD LIGHT MASK WHITEHEAD LIGHT MASK WHITE
-
40017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
60025050206 HH COLLAR SCREW M5X20 TX30HH COLLAR SCREW M5X20 TX30
-
77810802200028 BRAKE HOSE GUIDE WHITEBRAKE HOSE GUIDE WHITE
-
80081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
107770801000004 FRONT FENDER ORANGEFRONT FENDER ORANGE
-
110025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
120125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
1378108003000 MASK RUBBERMASK RUBBER
-
1477308013010 COLLAR BUSH. F.REAR FENDERCOLLAR BUSH. F.REAR FENDER
-
207810801300004 REAR PART ORANGEREAR PART ORANGE
-
2250314057050 COLLAR NUT M12X1/WS17 H=5MMCOLLAR NUT M12X1/WS17 H=5MM
-
2354807048000 BUSHING FOR SEAT FASTENINGBUSHING FOR SEAT FASTENING
-
240025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
3078108016000 NUMBER PLATE CARRIER TOPNUMBER PLATE CARRIER TOP
-
330017060303 SPECIAL SCREW T60 6X30 WS=6SPECIAL SCREW T60 6X30 WS=6
