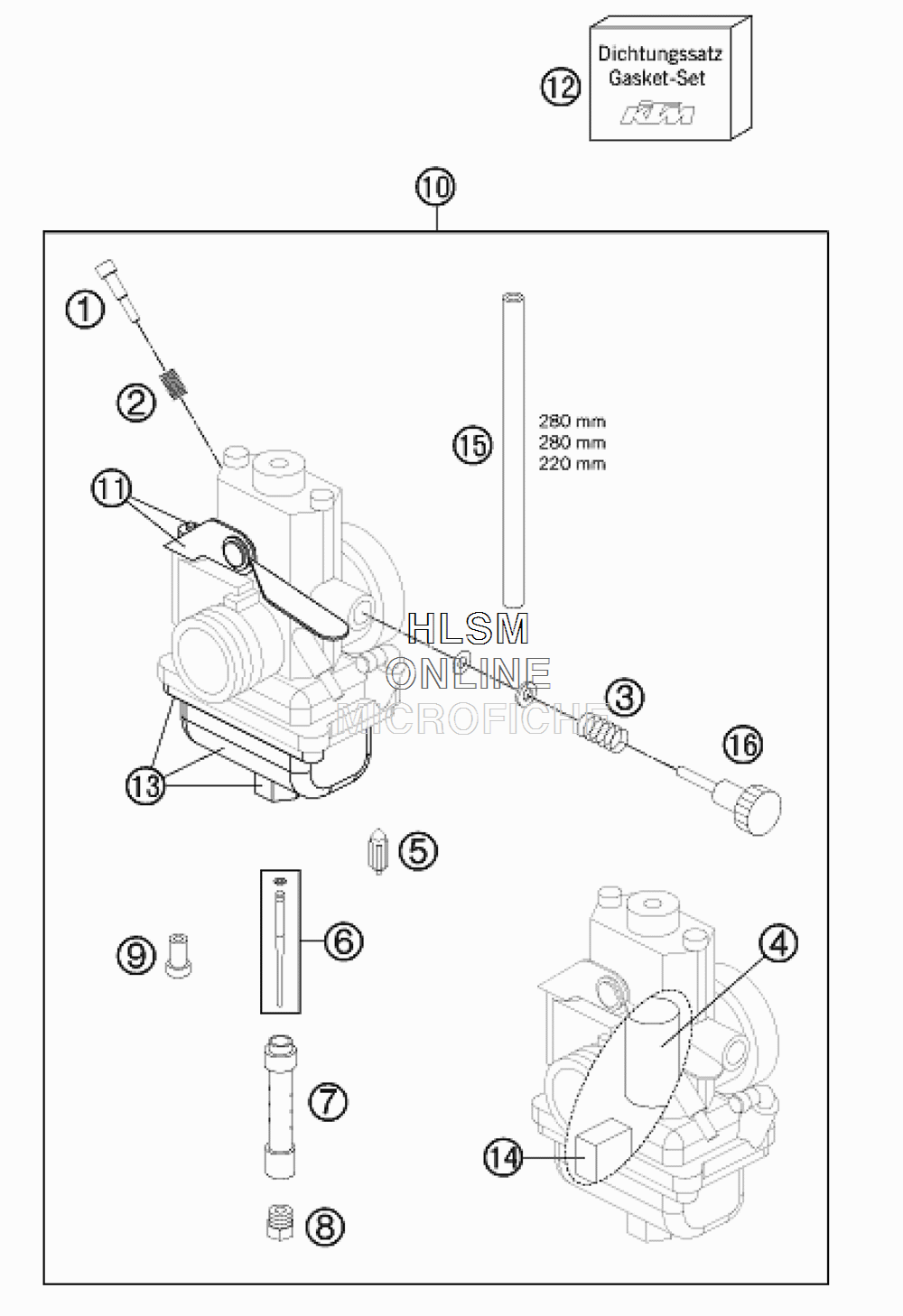

CARBURATOR для Ktm 65 SX - 2014 года выпуска
-
№АртикулНазвание
-
146131017000 ADJUSTING SCREW MIKUNIADJUSTING SCREW MIKUNI
-
245031015200 SPRING IDLE ADJUST SCREWSPRING IDLE ADJUST SCREW
-
345031015000 SPRINGSPRING
-
446231035000 THROTTLE VALVE MIKUNI 2.5THROTTLE VALVE MIKUNI 2.5
-
546231020100 NEEDLE VALVE CPL. 2.5NEEDLE VALVE CPL. 2.5
-
646231034000 JET NEEDLE MIKUNI 5IPL43-2JET NEEDLE MIKUNI 5IPL43-2
-
746231034100 MAIN JET HOLDER MIKUNIMAIN JET HOLDER MIKUNI
-
845031023195 MAIN JET 195MAIN JET 195
-
845031023200 MAIN JET 200MAIN JET 200
-
845031023205 MAIN JET 205MAIN JET 205
-
845031023210 MAIN JET 210MAIN JET 210
-
845031023215 MAIN JET 215MAIN JET 215
-
845031023220 MAIN JET 220MAIN JET 220
-
845031023225 MAIN JET 225MAIN JET 225
-
845031023230 MAIN JET 230MAIN JET 230
-
945031007010 IDLE JET 10 MIKUNIIDLE JET 10 MIKUNI
-
945031007015 IDLING JET 15 MIKUNIIDLING JET 15 MIKUNI
-
945031007020 IDLING JET 20 MIKUNIIDLING JET 20 MIKUNI
-
945031007025 IDLING JET 25 MIKUNIIDLING JET 25 MIKUNI
-
945031007000 IDLING JETIDLING JET
-
1046231001144 CARBURETORCARBURETOR
-
1146231048044 CHOKE + LEVER CPL.CHOKE + LEVER CPL.
-
1246231099000 GASKET SET MIKUNIGASKET SET MIKUNI
-
1346231011044 FLOAT BODY + SCREW + GASKETFLOAT BODY + SCREW + GASKET
-
1446231009044 FLOAT + PINFLOAT + PIN
-
1552031137001 PVC-HOSE 3X5MMPVC-HOSE 3X5MM
-
1646231094000 ADJUSTER SCREWADJUSTER SCREW
