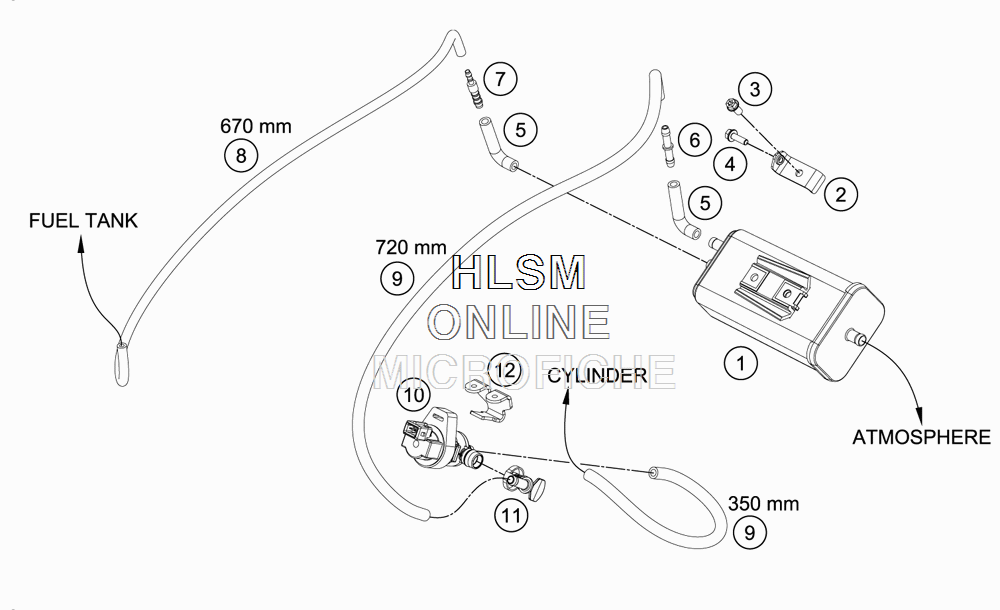

EVAPORATIVE CANISTER для Ktm 690 DUKE WHITE - 2014 года выпуска
-
№АртикулНазвание
-
175015001100 EVAPORATIVE CANISTEREVAPORATIVE CANISTER
-
276015002000 BRACKET EVAP. CANISTERBRACKET EVAP. CANISTER
-
30025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
40025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
561315022000 PREFORMED HOSE 6X10 FPMPREFORMED HOSE 6X10 FPM
-
660015021000 HOSE CONNECTOR GS6HOSE CONNECTOR GS6
-
775015023000 REDUCTION CONNECTION GRS6-4REDUCTION CONNECTION GRS6-4
-
878015021000 HOSE EPA D=4/8 L=2000MMHOSE EPA D=4/8 L=2000MM
-
978015019000 HOSE EPA D=6/10 L=2000MMHOSE EPA D=6/10 L=2000MM
-
1061115015000 VALVE FOR CARBON CANISTERVALVE FOR CARBON CANISTER
-
1161115016000 FITTING PIECE NQV2 NW7 90°FITTING PIECE NQV2 NW7 90°
-
1276011047000 BRACKET PURGE VALVEBRACKET PURGE VALVE
