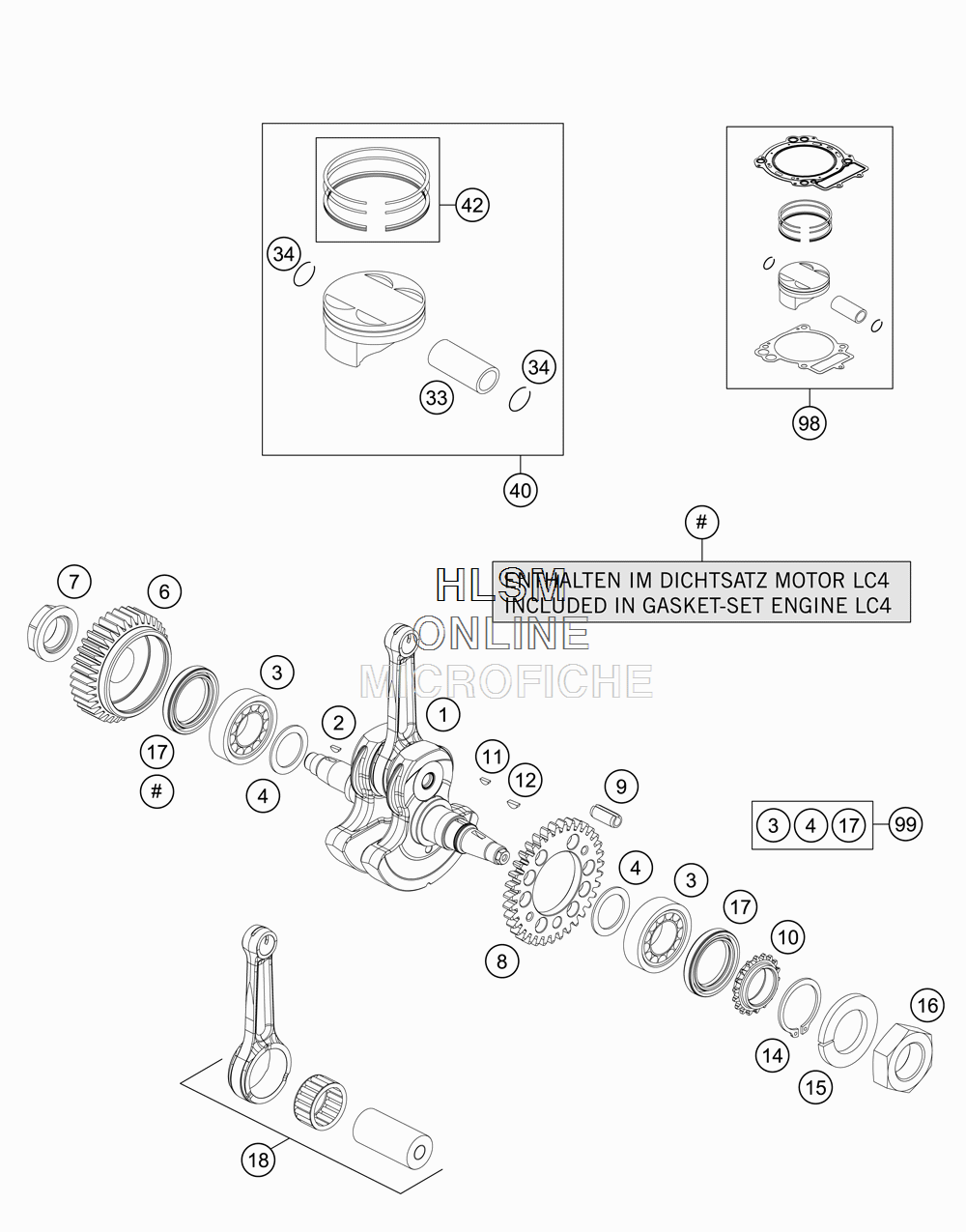

CRANKSHAFT PISTON для Ktm 690 ENDURO ABS - 2014 года выпуска

№

Артикул

Название
1

76030018100 CRANKSHAFT CPL.

CRANKSHAFT CPL.

170 ₽
2

0888040050 WOODRUFF KEY DIN6888 4X5X13

WOODRUFF KEY DIN6888 4X5X13

970 ₽
3

75030018150 CYL.ROLLER BEARING NJ207 ECPC4

CYL.ROLLER BEARING NJ207 ECPC4

21 200 ₽
4

56530081000 SHIM WASHER 36X48X0,10

SHIM WASHER 36X48X0,10

350 ₽
4

56530081100 SHIM WASHER 36X48X0,15

SHIM WASHER 36X48X0,15

350 ₽
4

56530081200 SHIM WASHER 36X48X0,20 STEEL

SHIM WASHER 36X48X0,20 STEEL

350 ₽
4

56530081300 SHIM WASHER 36X48X0,30

SHIM WASHER 36X48X0,30

350 ₽
6

75032000102 PRIMARY GEAR 36T.

PRIMARY GEAR 36T.

42 500 ₽
7

75030029100 NUT FOR PRIMARY GEAR

NUT FOR PRIMARY GEAR

2 390 ₽
8

75030055100 DRIVE WHEEL BALANCING SHAFT

DRIVE WHEEL BALANCING SHAFT

13 060 ₽
9

0749080300 TENSION PIN ISO13337 8X30

TENSION PIN ISO13337 8X30

290 ₽
10

75036014100 TIMING PINION

TIMING PINION

5 020 ₽
11

0888030050 WOODRUFF KEY DIN6888-3X5X13

WOODRUFF KEY DIN6888-3X5X13

290 ₽
12

6946005 WOODRUFF KEY 5X6,5 HARDED

WOODRUFF KEY 5X6,5 HARDED

290 ₽
14

0471300151 CIRCLIP DIN0471-30X1,5 NIRO

CIRCLIP DIN0471-30X1,5 NIRO

2 020 ₽
15

58132072000 LOCK WASHER VSK 18

LOCK WASHER VSK 18

320 ₽
16

936181505 HEXAGON NUT DIN0936-M18X1,5 R.

HEXAGON NUT DIN0936-M18X1,5 R.

0 ₽
17

0760355070 SHAFT SEAL R.35X50X7B VITON

SHAFT SEAL R.35X50X7B VITON

2 600 ₽
18

75330015144 CON-ROD REPAIR KIT

CON-ROD REPAIR KIT

165 210 ₽
33

61230033000 PISTON PIN D=20

PISTON PIN D=20

12 850 ₽
34

77630074000 CIRCLIP

CIRCLIP

2 840 ₽
40

75330007100I PISTON I CPL. D=102

PISTON I CPL. D=102

105 810 ₽
40

75330007100II PISTON II CPL. D=102

PISTON II CPL. D=102

105 220 ₽
42

75330031144 PISTON RING KIT

PISTON RING KIT

20 150 ₽
98

00050000224 PISTON KIT GR. I

PISTON KIT GR. I

99 370 ₽
98

00050000225 PISTON KIT GR. II

PISTON KIT GR. II

99 370 ₽
99

00050002305 CRANKSHAFT REP. KIT

CRANKSHAFT REP. KIT

39 480 ₽
