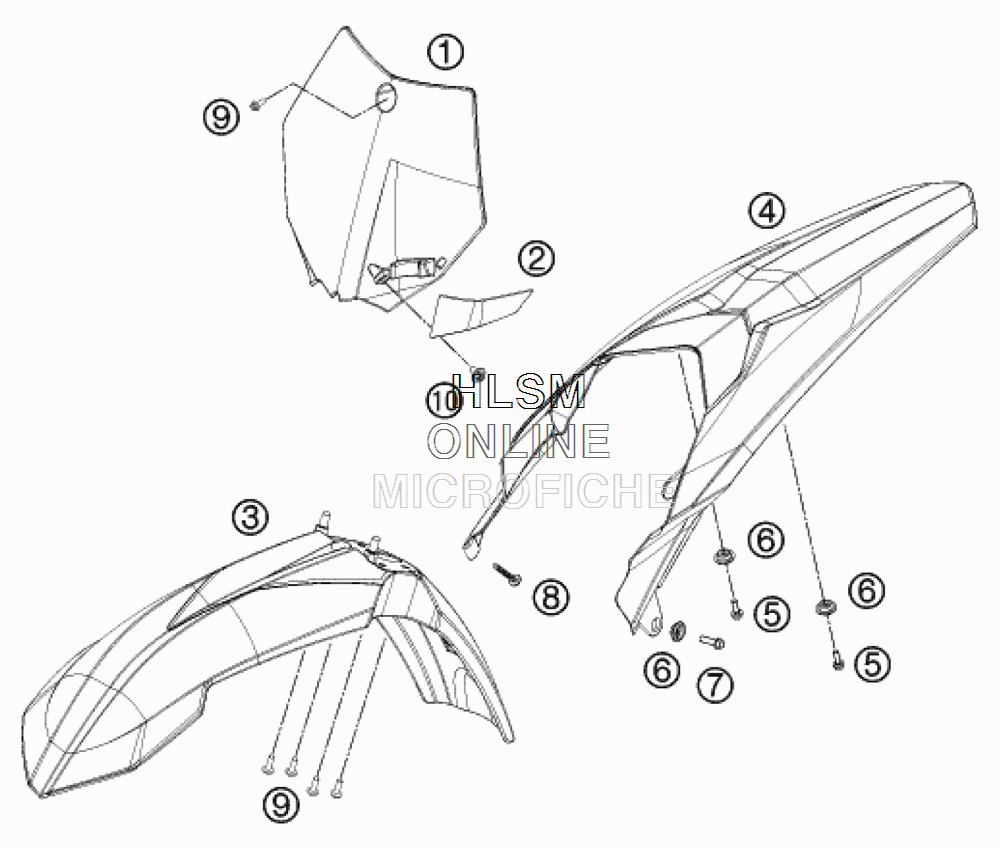

FRONT FENDER для Ktm 85 SX 17/14 - 2014 года выпуска
-
№АртикулНазвание
-
14710800700028 NUMBER PLATE WHITENUMBER PLATE WHITE
-
24620802200030 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
34710801000004 FRONT FENDER ORANGEFRONT FENDER ORANGE
-
44710801300004A REARPART 85 SX ORANGEREARPART 85 SX ORANGE
-
50025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
677308013010 COLLAR BUSH. F.REAR FENDER 07COLLAR BUSH. F.REAR FENDER 07
-
70025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
80017060405 SPECIAL SCREW T60 6X40 WS=6SPECIAL SCREW T60 6X40 WS=6
-
90024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
100024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
