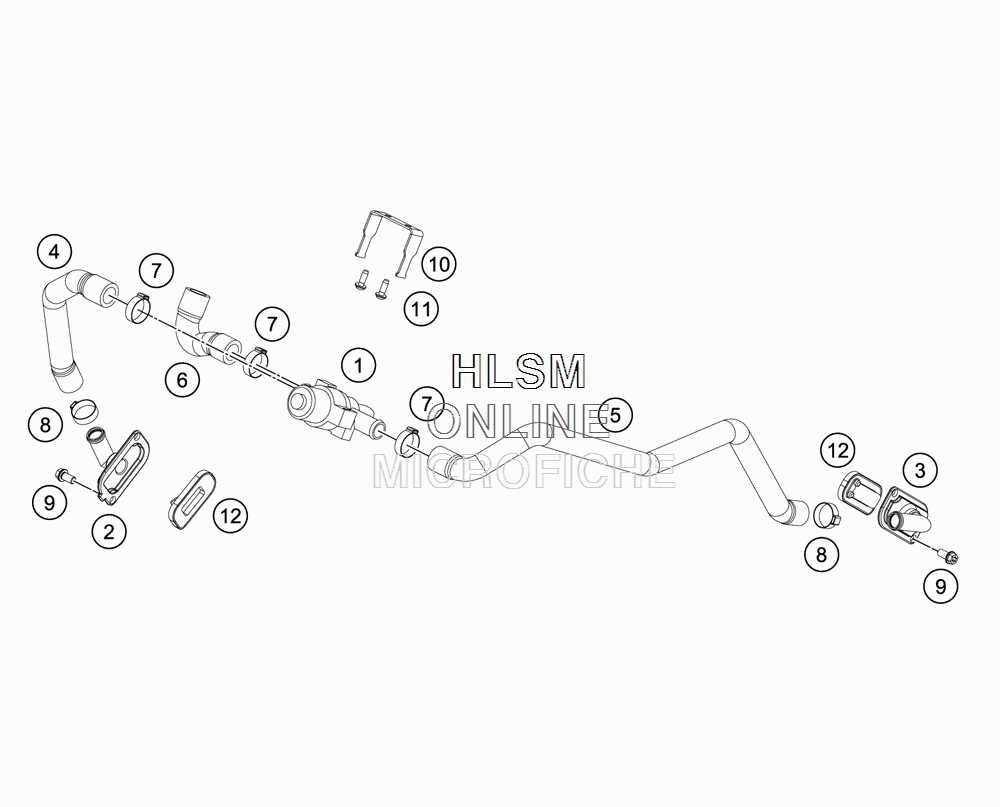

SECONDAR Y AIR SYSTEM SAS для Ktm 1190 ADVENTURE ABS ORANGE - 2015 года выпуска
-
№АртикулНазвание
-
161005026000 CONTROL VALVE SASCONTROL VALVE SAS
-
261205122000 SAS-FLANGESAS-FLANGE
-
361205032000 SAS-FLANGESAS-FLANGE
-
461305035021 SAS HOSE CYLINDER FRONTSAS HOSE CYLINDER FRONT
-
561305035022 SAS HOSE CYLINDER REARSAS HOSE CYLINDER REAR
-
661305035023 SAS HOSE - AIRBOXSAS HOSE - AIRBOX
-
700050226706 VARIABLE ONE-EAR CLAMP 22,6MMVARIABLE ONE-EAR CLAMP 22,6MM
-
800050220706 VARIABLE ONE-EAR CLAMP 22,0MMVARIABLE ONE-EAR CLAMP 22,0MM
-
90025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
1061305031000 RETAINING BRACKET SLSRETAINING BRACKET SLS
-
110081050161 EJOT PT SCREW K50X16 1451EJOT PT SCREW K50X16 1451
-
1260005026000 SLS-VALVESLS-VALVE
