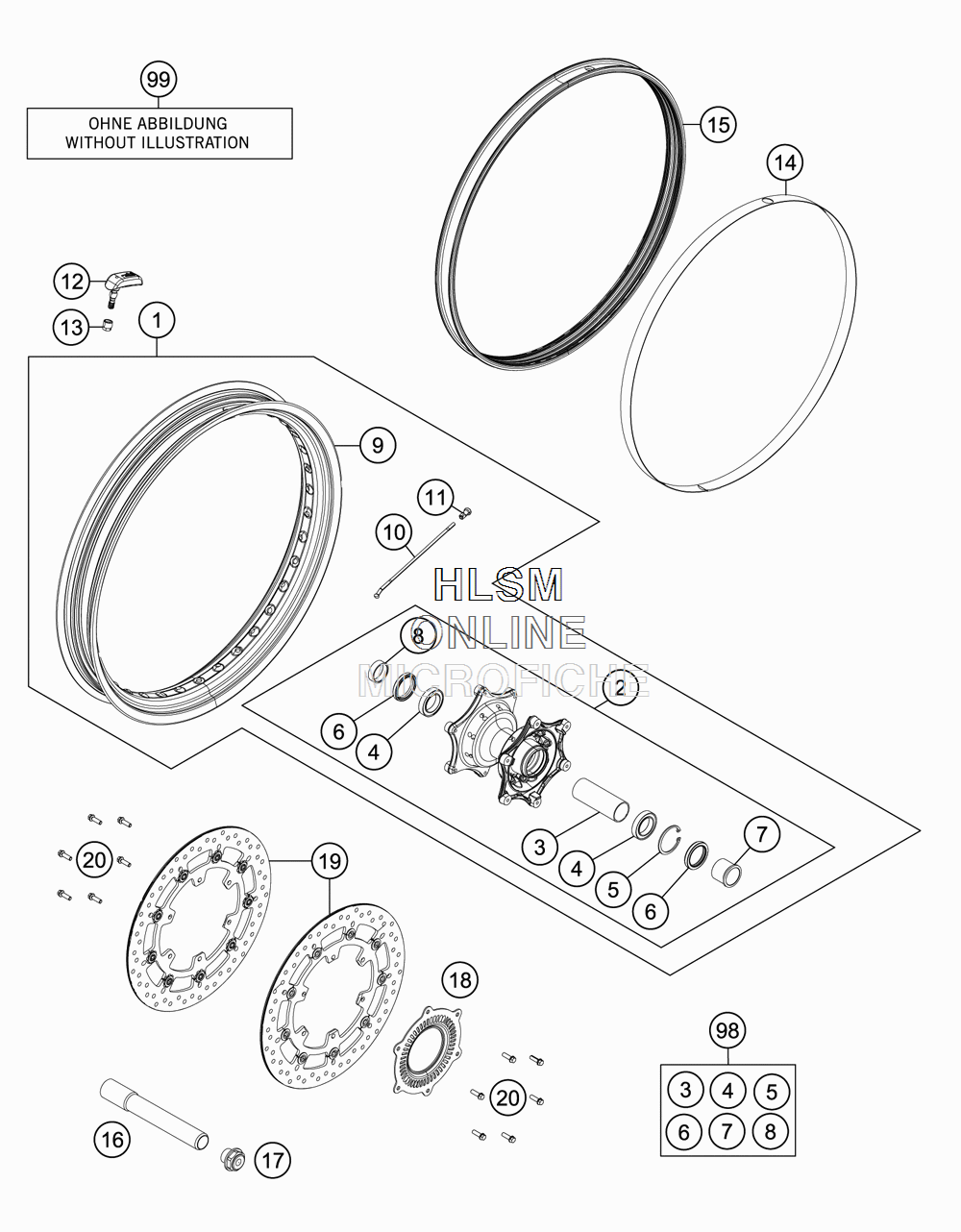

FRONT WHEEL для Ktm 1290 ADVENTURE - 2015 года выпуска
-
№АртикулНазвание
-
160409001044KBA FRONT WHEEL CPL. 3"X19" (BLACK)FRONT WHEEL CPL. 3"X19" (BLACK)
-
260309010044KBA FRONT WHEEL HUB CPL.FRONT WHEEL HUB CPL.
-
360309011000 BUSHING SPACER TUBE FRONTBUSHING SPACER TUBE FRONT
-
40625069068 GR.BALL BEAR.6906 DDU2CG23 S6NMGR.BALL BEAR.6906 DDU2CG23 S6NM
-
50472047175 CIRCLIP DIN0472-47X1 ,75CIRCLIP DIN0472-47X1 ,75
-
60760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
760309012000 SPACER BUSH. FRONT WHEEL LEFTSPACER BUSH. FRONT WHEEL LEFT
-
860009013000 SPACER BUSH. FR. WHEEL R/SSPACER BUSH. FR. WHEEL R/S
-
960409070000KBA FRONT WHEEL RIM 3"X19" TUBELESFRONT WHEEL RIM 3"X19" TUBELES
-
1060309171000 SPOKE 5/4.37/M5SPOKE 5/4.37/M5
-
1160310072100 SPOKE SIPPLE QUADRAX M5SPOKE SIPPLE QUADRAX M5
-
1260312033000 TIRE AIR PRESSURE SENSORTIRE AIR PRESSURE SENSOR
-
1360312033050 NUT AIR PRESSURE SENSORNUT AIR PRESSURE SENSOR
-
1460309173100 RIM BAND 19"RIM BAND 19"
-
1560309277100 GASKET RUBBER 3"X19"GASKET RUBBER 3"X19"
-
1660309081000 AXLE FRONTAXLE FRONT
-
176900103600001 STEERING HEAD SCREWSTEERING HEAD SCREW
-
1860342020000 SENSOR GEAR ABSSENSOR GEAR ABS
-
196030906000030 BRAKE DISC FRONT D=320X4,5BRAKE DISC FRONT D=320X4,5
-
2059009062019 SPECIAL SCREW M6X19 WS=8 10.9SPECIAL SCREW M6X19 WS=8 10.9
-
9860309015000 FRONT WHEEL REP. KITFRONT WHEEL REP. KIT
-
9960312034044 VALVE KIT AIR PRESSURE SENSORVALVE KIT AIR PRESSURE SENSOR
