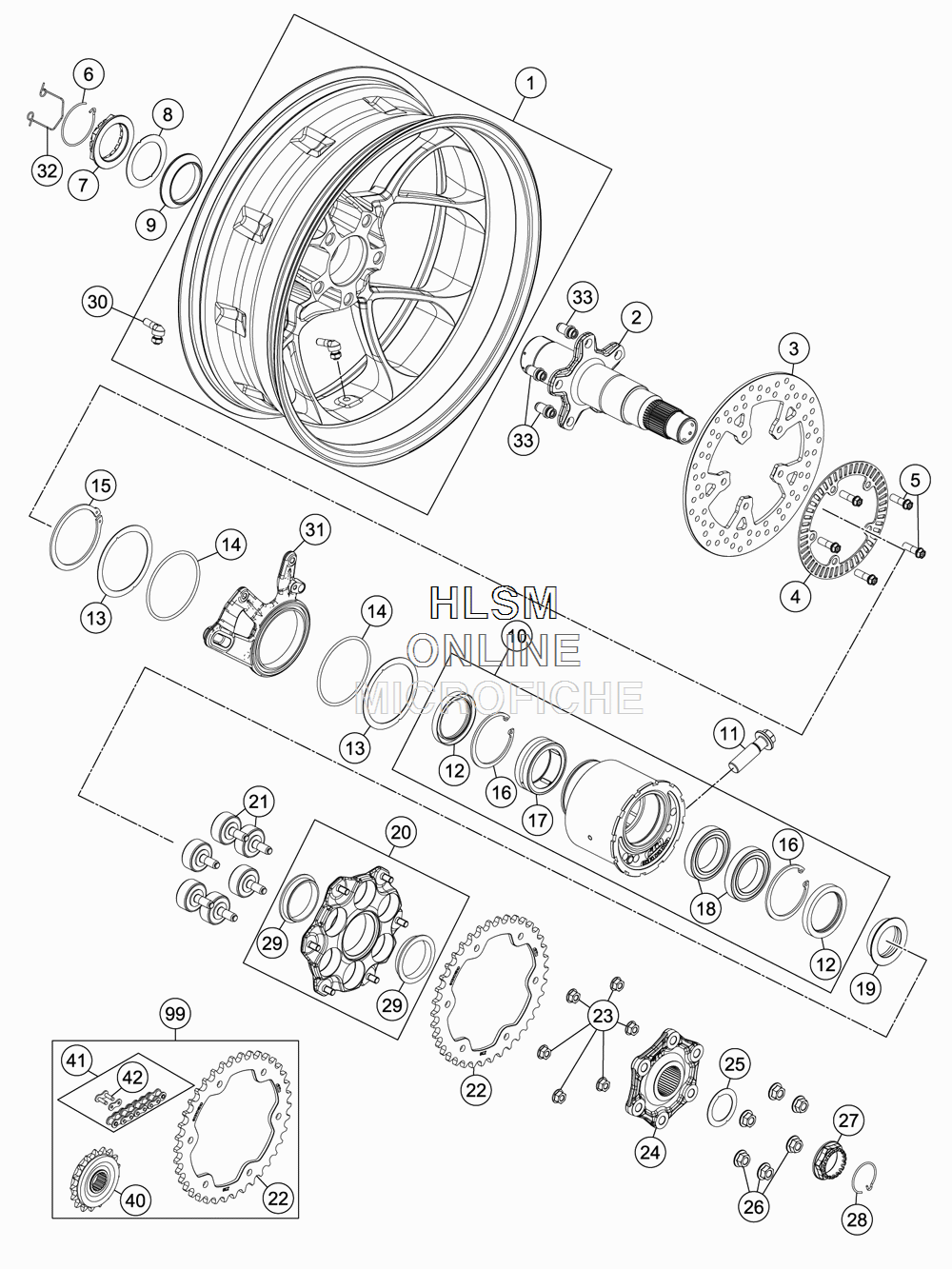

REAR WHEEL для Ktm 1290 SUPER DUKE R ABS ORANGE - 2015 года выпуска
-
№АртикулНазвание
-
16131010114430 REAR WHEEL 6X17" (BLACK)REAR WHEEL 6X17" (BLACK)
-
261310085100 AXLE REARAXLE REAR
-
376010160000 BRAKE DISC 240MMBRAKE DISC 240MM
-
476042121000 SENSOR GEAR REARSENSOR GEAR REAR
-
50025080256S HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
661310187000 SAFETY WIRE R/SSAFETY WIRE R/S
-
761310186000 AXLE NUT M50X1.5AXLE NUT M50X1.5
-
861310016000 WASHER 69X1WASHER 69X1
-
961310015000 CONE RINGCONE RING
-
1061310010044 CLUTCH HUB HOUSING CPL.CLUTCH HUB HOUSING CPL.
-
1161310021000 HH COLLAR SCREW M16X1,5X55HH COLLAR SCREW M16X1,5X55
-
120760526880 SHAFT SEAL RING 52X68X8SHAFT SEAL RING 52X68X8
-
1361310019000 WASHER 94X1WASHER 94X1
-
140770840035 O-RING 84,00X3.5 NBR70O-RING 84,00X3.5 NBR70
-
150471078250 CIRCLIP DIN471-78X2. 5CIRCLIP DIN471-78X2. 5
-
160472068250 CIRCLIP DIN472-68X2. 5CIRCLIP DIN472-68X2. 5
-
170617456822 NEEDLE BEARING RNA4909-2RSR-XLNEEDLE BEARING RNA4909-2RSR-XL
-
180625061909 DEEP GROOVE BALL BEARING 61909DEEP GROOVE BALL BEARING 61909
-
1961310014000 SPACER RINGSPACER RING
-
206131005404433S SPROCKET SUPPORT CPL.SPROCKET SUPPORT CPL.
-
2161310059000 JAR DAMPERJAR DAMPER
-
2261310151038 SPROCKET STEEL DUKE 1290 Z38SPROCKET STEEL DUKE 1290 Z38
-
2354310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
246131005000033S JAR DAMPER CARRIERJAR DAMPER CARRIER
-
2576010116000 SHIM 50X1SHIM 50X1
-
2606923100003 HEX. NUT DIN 6923 M10X1.25-10HEX. NUT DIN 6923 M10X1.25-10
-
2776010186000 AXLE NUT M35X1.5AXLE NUT M35X1.5
-
2876010187000 SAFETY WIRE L/SSAFETY WIRE L/S
-
2976010052000 IGUS BEARING D=50IGUS BEARING D=50
-
3061009076100 VALVE ANGLEDVALVE ANGLED
-
316131307500033S BRAKE CALIPER ADAPTER (BLACK)BRAKE CALIPER ADAPTER (BLACK)
-
3261310010011 SAFE ARMING WIRESAFE ARMING WIRE
-
3361310113000 DOWEL PIN M8DOWEL PIN M8
-
4060033129017 CHAIN SPROCKET 17-T DAMPEDCHAIN SPROCKET 17-T DAMPED
-
4161310165118 CHAIN DID525 V AZ & MASTER LINKCHAIN DID525 V AZ & MASTER LINK
-
4261310066000 MASTER LINK FOR CHAIN DID V AZMASTER LINK FOR CHAIN DID V AZ
-
9900050002029 DRIVE TRAIN KIT 1290 SD 17T/38TDRIVE TRAIN KIT 1290 SD 17T/38T
