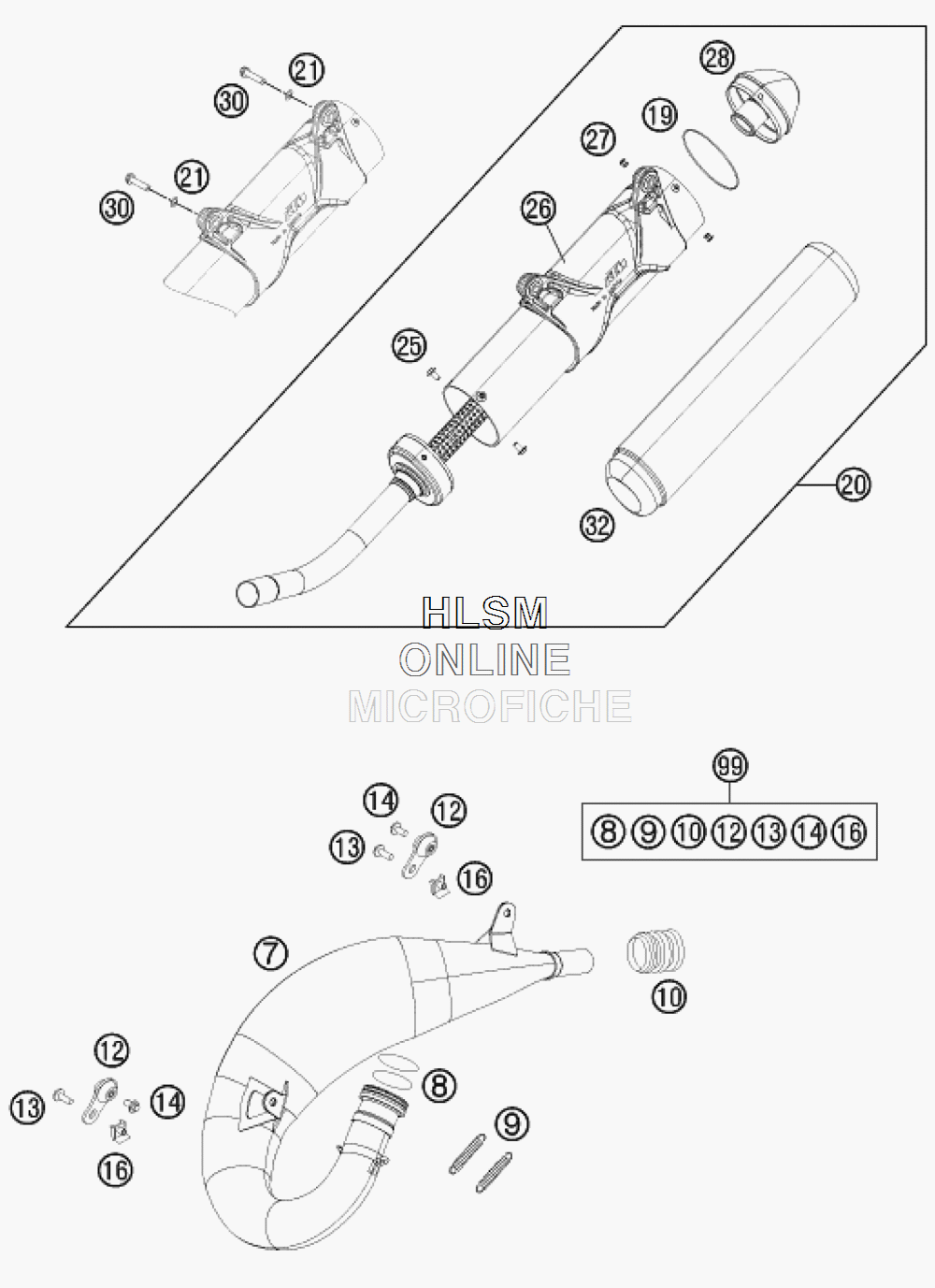

EXHAUST SYSTEM для Ktm 150 SX - 2015 года выпуска
-
№АртикулНазвание
-
750305107000 EXHAUST MANIFOLDEXHAUST MANIFOLD
-
80770440030 O-RING 44,00X3,00 VITONO-RING 44,00X3,00 VITON
-
950305016000 TEN.SPRIN G L=62MM EY .MOVEABLETEN.SPRIN G L=62MM EY .MOVEABLE
-
1054605057000 RUBBER SLEEVE D=21MM/23MMRUBBER SLEEVE D=21MM/23MM
-
1250305012000 SWING ELEMENT FOR EXHAUST PIPESWING ELEMENT FOR EXHAUST PIPE
-
130024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
140024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
1654603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
190770740015 O-RING 74,00X1,50 FKM 75SHO-RING 74,00X1,50 FKM 75SH
-
2050305079500 SILENCERSILENCER
-
210137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
2558605083010 SCREW TORX M5X10SCREW TORX M5X10
-
2650305179085 SILENCER CASING CPL.W. MOUNTINGSILENCER CASING CPL.W. MOUNTING
-
270011480800 DUMMY RIVET 4,8X 8 NIRODUMMY RIVET 4,8X 8 NIRO
-
2850305083260 END CAP CPL.END CAP CPL.
-
300025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
3250305078235 ROCK WOOL 235GROCK WOOL 235G
-
9900050000810 EXHAUST HARDWARE KITEXHAUST HARDWARE KIT
