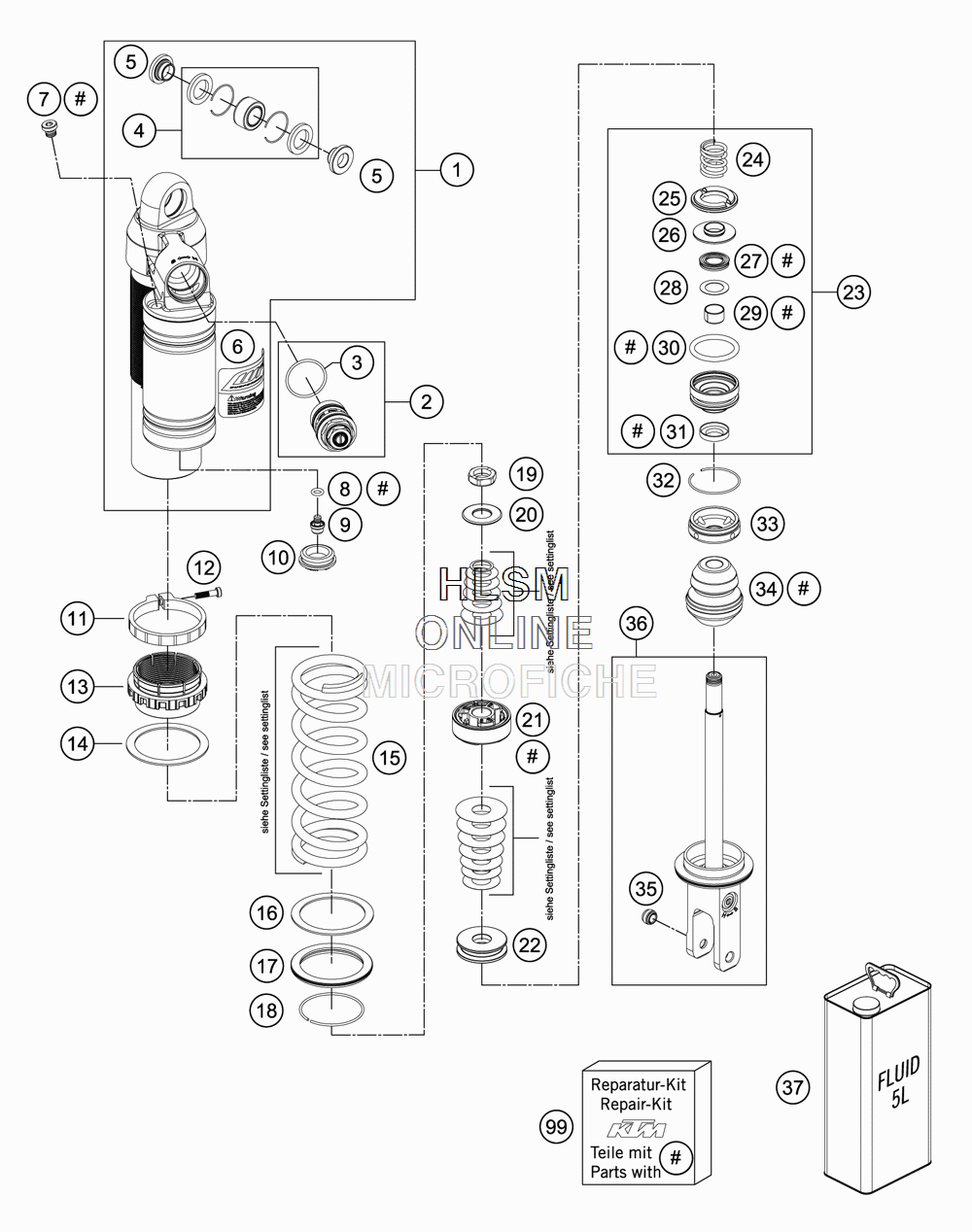

SHOCK ABSORBER DISASSEMBLED для Ktm 250 XC - 2015 года выпуска
-
№АртикулНазвание
-
150180944S1 MONOSHOCK UPPER PART CPL.MONOSHOCK UPPER PART CPL.
-
250180213S21 DCC COMPR. DAMP . CON. CPL.DCC COMPR. DAMP . CON. CPL.
-
350180218 O-RING 25X1,5 VITONO-RING 25X1,5 VITON
-
4R12012 REP . KIT BEAR./SEAL UP .REP . KIT BEAR./SEAL UP .
-
546180010 BUSH KGW 10X24BUSH KGW 10X24
-
652000087 STICKER WP MONOSHOCKSTICKER WP MONOSHOCK
-
750180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
846810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
936120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
1046811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
1150180937 TENSIONI NG RING D64 H10TENSIONI NG RING D64 H10
-
1214460042 %ALLEN HEAD SCREW M5 L=20 STAIN%ALLEN HEAD SCREW M5 L=20 STAIN
-
1350180938 ADJUSTING NUT PLASTICADJUSTING NUT PLASTIC
-
1450180114 SPACER RING FOR SPRINGSPACER RING FOR SPRING
-
1591210102S SPRING 260 51 N/MMSPRING 260 51 N/MM
-
1591210103S SPRING 260 54 N/MMSPRING 260 54 N/MM
-
1591210104S SPRING 260 57 N/MMSPRING 260 57 N/MM
-
1650180793 SPACER RING ADJUSTING NUTSPACER RING ADJUSTING NUT
-
1750180824 VALVE SPRING D80 CLOSEDVALVE SPRING D80 CLOSED
-
1850180273 CIRCLIP 58,2X2CIRCLIP 58,2X2
-
1950180141 PISTON ROD NUT M16X1PISTON ROD NUT M16X1
-
2050180836 REBOUND DISC 16X34 T2 H0REBOUND DISC 16X34 T2 H0
-
2150180786E PISTON D50PISTON D50
-
2250180801 REBOUND DISC D16X43 H8REBOUND DISC D16X43 H8
-
2350180603S3 ADAPTER D50 H28 CPL.ADAPTER D50 H28 CPL.
-
2450180780 REBOUND SPRINGREBOUND SPRING
-
2550180798 REBOUND RUBBERREBOUND RUBBER
-
2650180800 SPRING RINGSPRING RING
-
2750180605S SEAL D18X30X5SEAL D18X30X5
-
2850180604 SHIM D29,75 X D19 X T0,4SHIM D29,75 X D19 X T0,4
-
2950180974 DU-BUSH ING 18X20X12DU-BUSH ING 18X20X12
-
3050180103 O-RING 41X5O-RING 41X5
-
3150180606 DUST SEAL 1828DUST SEAL 1828
-
3250180126 CIRCLIP 53X1,75CIRCLIP 53X1,75
-
3350180626 RESERVOIR CAP D=50 H=10RESERVOIR CAP D=50 H=10
-
3450180775 BUMP RUBBERBUMP RUBBER
-
3546811205 ADAPTOR -BUSH M10X1,50, D=15ADAPTOR -BUSH M10X1,50, D=15
-
3650180773SA MONOSHOCK BOTTOM PART CPL.MONOSHOCK BOTTOM PART CPL.
-
3750180751S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
99R12020 REPAIR KITREPAIR KIT
