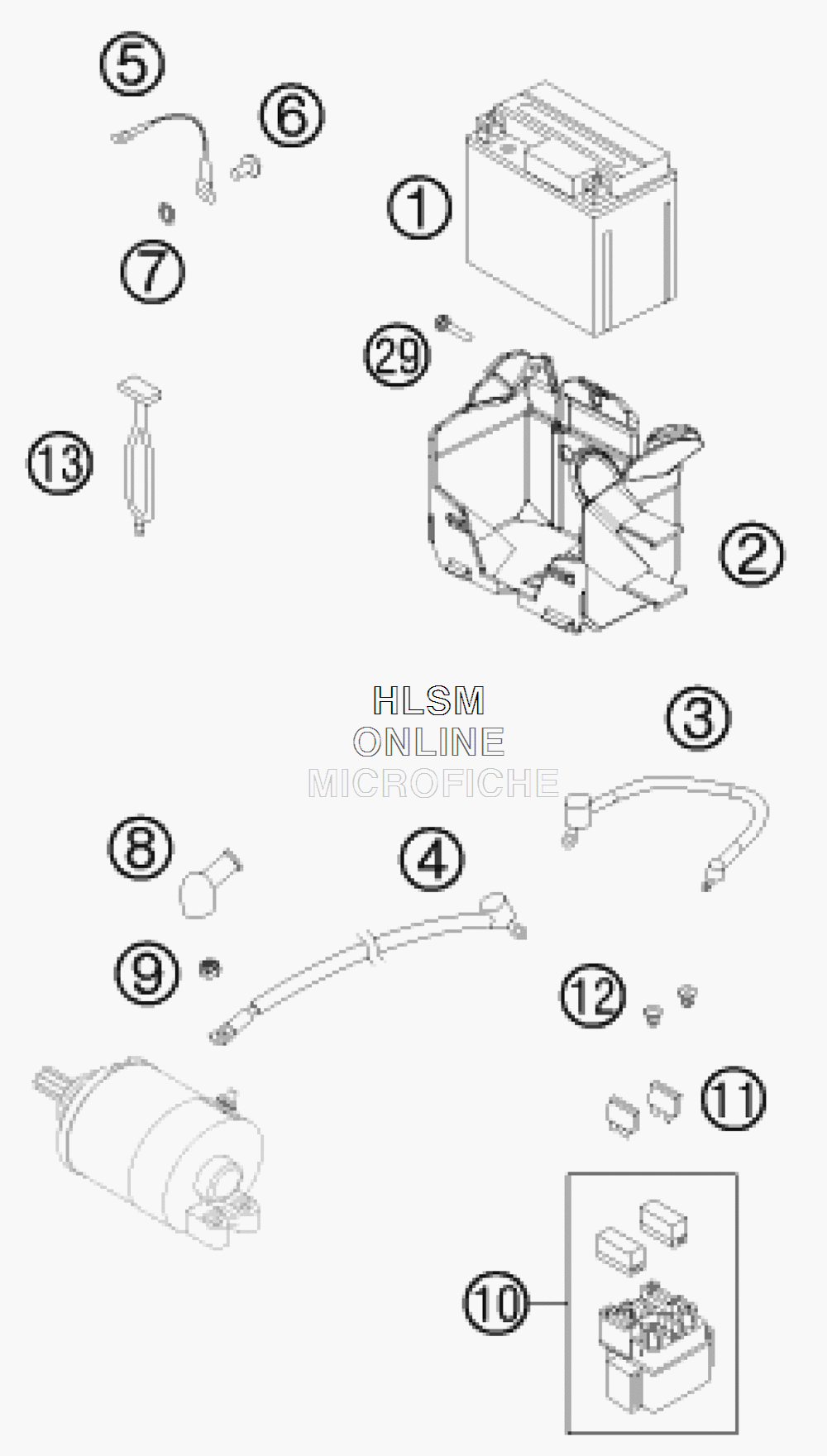

BATTERY для Ktm 250 XCF - 2015 года выпуска
-
№АртикулНазвание
-
158511053000 BATTERY 12V 4AH YTX5L-BSBATTERY 12V 4AH YTX5L-BS
-
278111055000 BATTERY CASEBATTERY CASE
-
358711086000 WIRING HARNESS BATTERYWIRING HARNESS BATTERY
-
458411059100 STARTER CABLE 700 MMSTARTER CABLE 700 MM
-
558411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
60009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
758411098100 CONTACT WASHER M6 VSV -K6CONTACT WASHER M6 VSV -K6
-
877240099000 PROTECTION CAP F. STARTER ENG.PROTECTION CAP F. STARTER ENG.
-
90985060003 SELF LOCK. NUT DIN0985-M6SELF LOCK. NUT DIN0985-M6
-
1058211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
1158011109110 FUSE 10 AFUSE 10 A
-
120902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
1350303018000 RUBBER L=145MMRUBBER L=145MM
-
290017060205 SCREW FOR PLASTIC K60X20 SW6SCREW FOR PLASTIC K60X20 SW6
