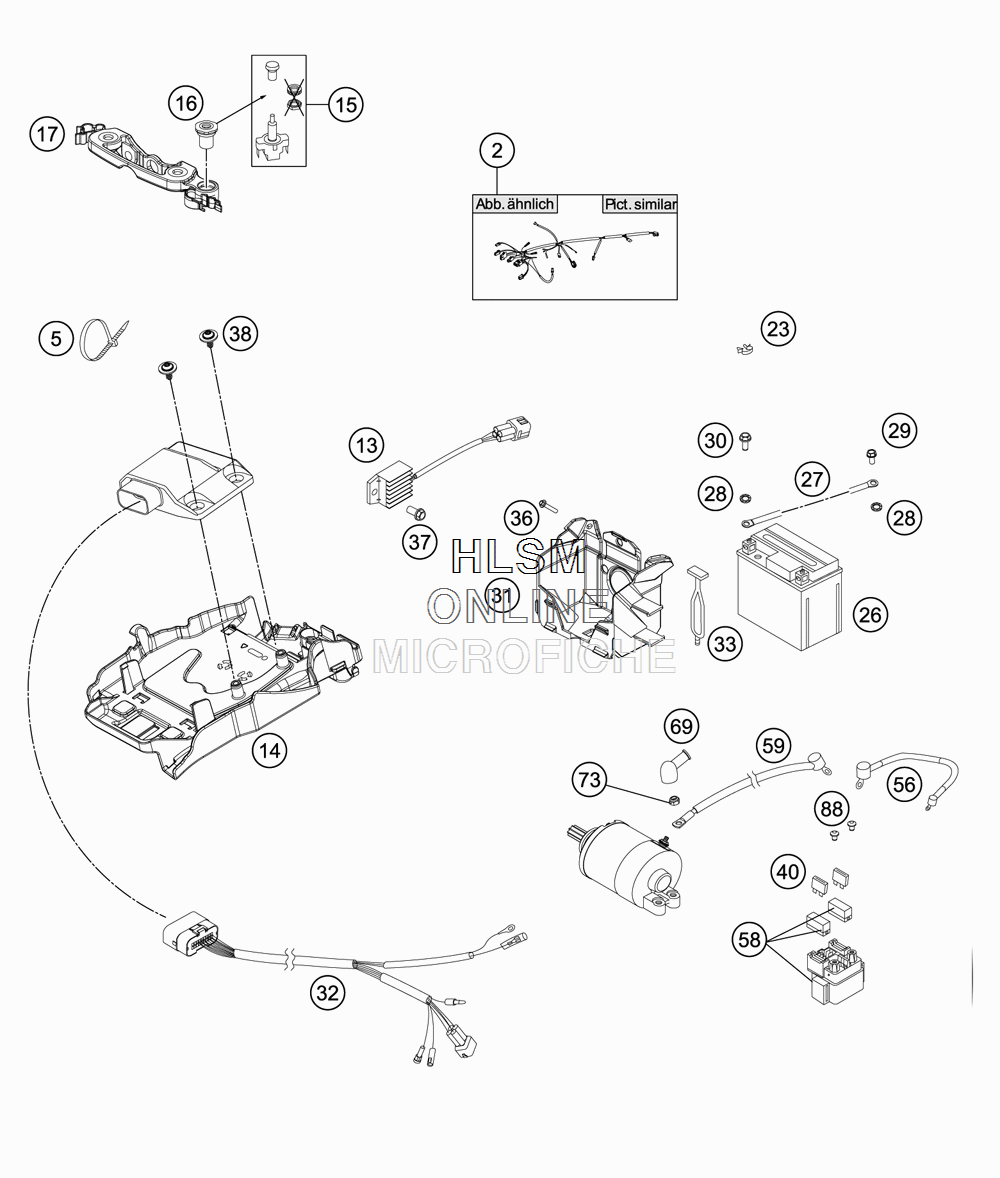

WIRING HARNESS для Ktm 300 XCW - 2015 года выпуска
-
№АртикулНазвание
-
254811075800 WIRING HARNESSWIRING HARNESS
-
544011076140 CABLE TIE 140/2,5MM (BLACK)CABLE TIE 140/2,5MM (BLACK)
-
544011076200 CABLE TIE 200/3,6MM (BLACK)CABLE TIE 200/3,6MM (BLACK)
-
544011076305 CABLE TIE 300/4,8MM (BLACK)CABLE TIE 300/4,8MM (BLACK)
-
1380011034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
1477711094000 ELECTRIC BOXELECTRIC BOX
-
1555011599000 PULL SWITCH LOOSEPULL SWITCH LOOSE
-
1654814060050 SPEC. NUT F . PULL SWITCH WS=17SPEC. NUT F . PULL SWITCH WS=17
-
1777714060000 SPEEDOMETER BRACKETSPEEDOMETER BRACKET
-
2357013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
2677311053000 BATTERY 12V 3AH YTX4L-BSBATTERY 12V 3AH YTX4L-BS
-
2758411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
2858411098100 CONTACT WASHER M6 VSV -K6CONTACT WASHER M6 VSV -K6
-
290009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
300025050126 HH COLLAR SCREW M5X12 TX30HH COLLAR SCREW M5X12 TX30
-
3177211055000 BATTERY BOXBATTERY BOX
-
3254839032200 WIRING HARNESS FOR CDI 2-STWIRING HARNESS FOR CDI 2-ST
-
3350303018000 RUBBER L=145MMRUBBER L=145MM
-
360025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
370026060136 COLLAR SCREW M6X13 ISA30COLLAR SCREW M6X13 ISA30
-
380081645121 EJOT DELTA PT SCREW 45X12-ZEJOT DELTA PT SCREW 45X12-Z
-
4058011109110 FUSE 10 AFUSE 10 A
-
5658711086000 WIRING HARNESS BATTERYWIRING HARNESS BATTERY
-
5858211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
5955111059000 STARTER CABLE 1100MMSTARTER CABLE 1100MM
-
6958440099000 PROTECTION CAP F . STARTER ENG.PROTECTION CAP F . STARTER ENG.
-
730985060003 SELF LOCK. NUT DIN0985-M6SELF LOCK. NUT DIN0985-M6
-
880902060083 AH OVAL SCREW ISO 7380M 6X8AH OVAL SCREW ISO 7380M 6X8
