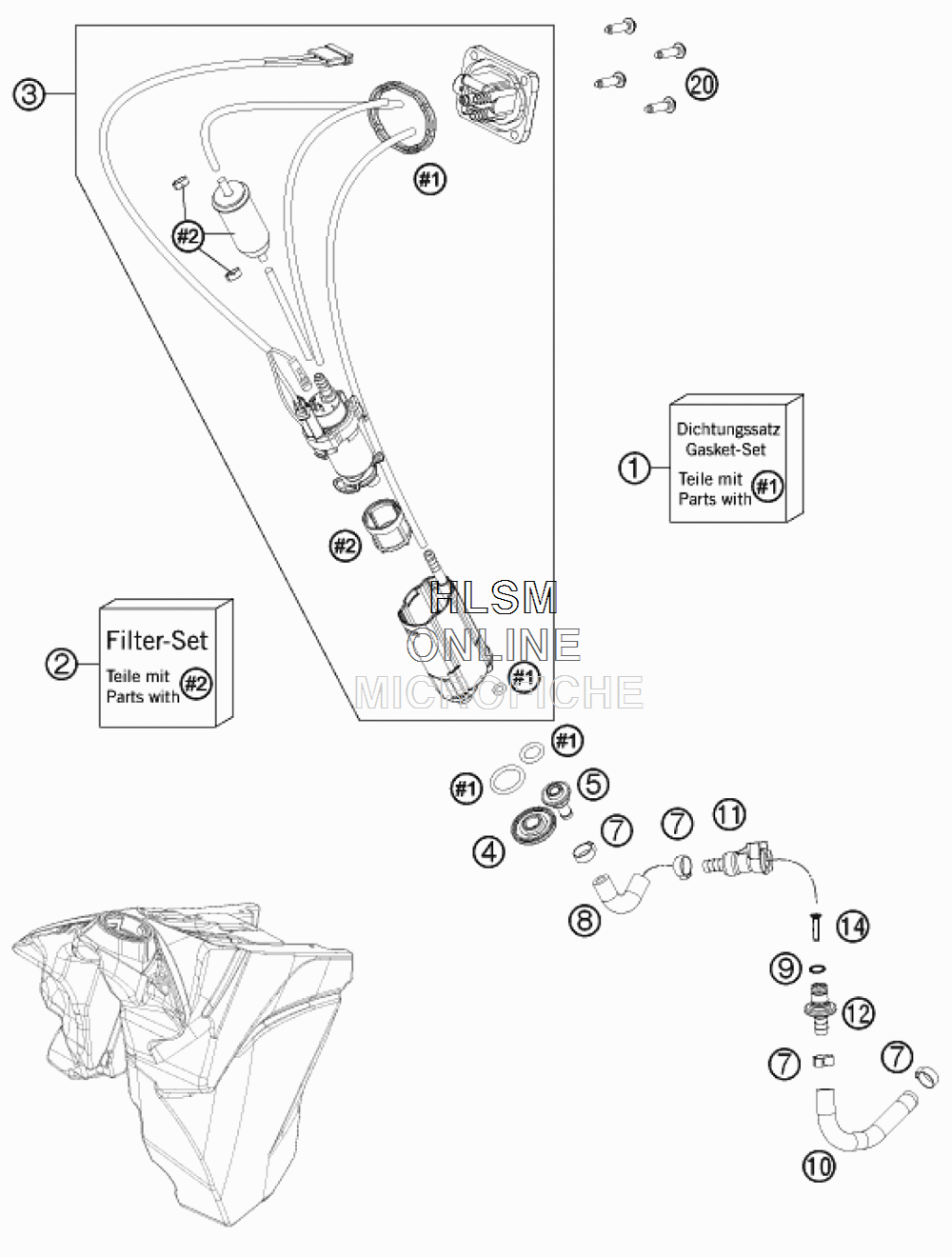

FUEL PUMP для Ktm 350 EXCF - 2015 года выпуска
-
№АртикулНазвание
-
178107089000 GASKET KITGASKET KIT
-
281207090000 FILTER KITFILTER KIT
-
378107088000 FUEL PUMP CPL.FUEL PUMP CPL.
-
478107088114 NUT FUEL PUMP M12NUT FUEL PUMP M12
-
578107088117 CONNECTOR FUEL PUMPCONNECTOR FUEL PUMP
-
700050157706 VARIABLE ONE-EAR CLAMP 15,7MMVARIABLE ONE-EAR CLAMP 15,7MM
-
878107116100 FUEL HOSE PREFORMED DKKFUEL HOSE PREFORMED DKK
-
958507012000 O-RING VITON F . PLUG CPCO-RING VITON F . PLUG CPC
-
1078107016100 FUEL HOSE PREFORMED DKKFUEL HOSE PREFORMED DKK
-
115850701050030 CLUTCH CPC (BLACK)CLUTCH CPC (BLACK)
-
1277707010000 CONNECT OR FUEL PUMPCONNECT OR FUEL PUMP
-
1478141013190 FUEL FILTERFUEL FILTER
-
200014050163 HH COLLAR SCREW M 5X16 WS=6HH COLLAR SCREW M 5X16 WS=6
