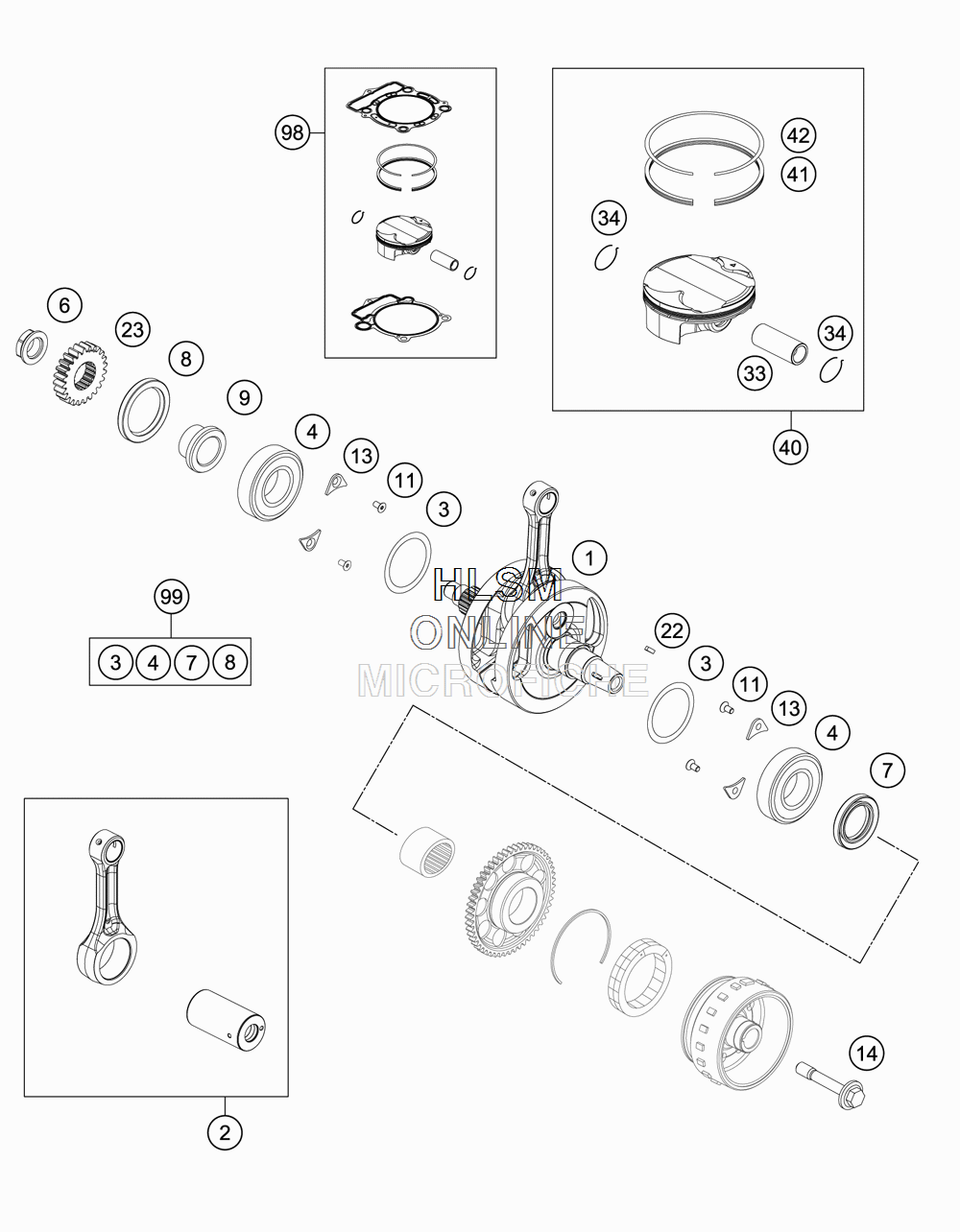

CRANKSHAFT для Ktm 350 SXF - 2015 года выпуска

№

Артикул

Название
1

77830018100 CRANKSHAFT CPL.

CRANKSHAFT CPL.

170 ₽
2

77830015144 CONNECTING ROD REPAIR SET

CONNECTING ROD REPAIR SET

143 130 ₽
3

0988324510 THRUST WASHER 988ST 32X0,1

THRUST WASHER 988ST 32X0,1

90 ₽
3

0988324515 THRUST WASHER 988ST 32X0,15

THRUST WASHER 988ST 32X0,15

90 ₽
3

0988324530 THRUST WASHER 988ST 32X0,30

THRUST WASHER 988ST 32X0,30

90 ₽
4

77330082200 BEARING NJ 206 ECP/HN3C4HV A624

BEARING NJ 206 ECP/HN3C4HV A624

25 350 ₽
6

77230029000 NUT PRIMARY WHEEL

NUT PRIMARY WHEEL

9 960 ₽
7

0760304772 SH.SEAL RING 30X47X7 BSL VITON

SH.SEAL RING 30X47X7 BSL VITON

5 490 ₽
8

0760405560 SHAFT SEAL RING A40X55X6 VITON

SHAFT SEAL RING A40X55X6 VITON

3 100 ₽
9

77232022000 SPACER BUSHING PRIMARY GEAR

SPACER BUSHING PRIMARY GEAR

5 960 ₽
11

0019050106S INT . TORX FLAT HEAD M5X10 10.9

INT . TORX FLAT HEAD M5X10 10.9

290 ₽
13

75030085000 RETAINING PLATE F . CS BEARING

RETAINING PLATE F . CS BEARING

1 140 ₽
14

77339010100 FL YWHEEL SCREW

FL YWHEEL SCREW

1 290 ₽
22

0888030037 WOODRUFF KEY DIN6888-3X3,7

WOODRUFF KEY DIN6888-3X3,7

290 ₽
23

77232023024 PRIMARY GEAR 24T .

PRIMARY GEAR 24T .

21 880 ₽
33

77230233200 PISTON PIN 350

PISTON PIN 350

17 110 ₽
34

77230274000 CIRCLIP

CIRCLIP

5 380 ₽
40

77230207100I PISTON CPL.

PISTON CPL.

140 700 ₽
40

77230207100II PISTON CPL.

PISTON CPL.

141 460 ₽
41

77230032100 SCRAPER RING

SCRAPER RING

23 390 ₽
42

77230030000 COMPRESSION RING

COMPRESSION RING

11 540 ₽
98

00050000220 PISTON KIT GR.I

PISTON KIT GR.I

128 980 ₽
98

00050000221 PISTON KIT GR.II

PISTON KIT GR.II

128 980 ₽
99

00050002311 CRANKSHAFT REP. KIT

CRANKSHAFT REP. KIT

44 350 ₽
