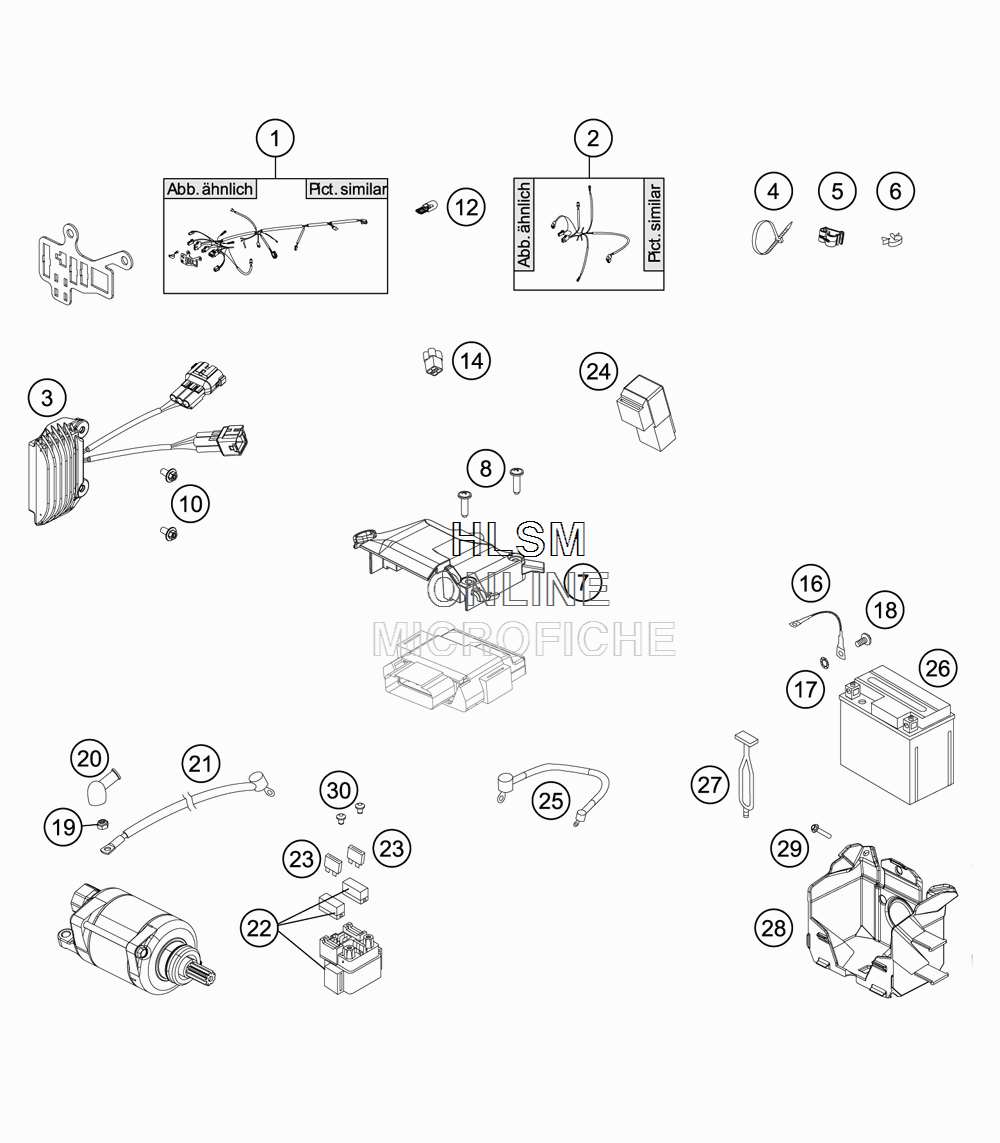

WIRING HARNESS для Ktm 350 XCF-W SIX DAYS - 2015 года выпуска
-
№АртикулНазвание
-
178111075133 WIRING HARN.EFI VMT . (EUROPE/AUS)WIRING HARN.EFI VMT . (EUROPE/AUS)
-
277711079100 WIRING HARNESS LIGHTWIRING HARNESS LIGHT
-
378111034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
444011076140 CABLE TIE 140/2,5MM (BLACK)CABLE TIE 140/2,5MM (BLACK)
-
444011076200 CABLE TIE 200/3,6MM (BLACK)CABLE TIE 200/3,6MM (BLACK)
-
444011076305 CABLE TIE 300/4,8MM (BLACK)CABLE TIE 300/4,8MM (BLACK)
-
583013026000 CABLE GUIDECABLE GUIDE
-
657013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
777711094050 ECU SPLASH PROTECT .ECU SPLASH PROTECT .
-
80081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
100023060123 COLLAR SCREW M6X12 TXCOLLAR SCREW M6X12 TX
-
1249111425200 BULB 12V 2,3W (W2X4,6D)BULB 12V 2,3W (W2X4,6D)
-
1481211096000 DUMMY PLUG AN 4-PINDUMMY PLUG AN 4-PIN
-
1658411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
1758411098100 CONTACT WASHER M6 VSV -K6CONTACT WASHER M6 VSV -K6
-
180009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
190985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
2058440099000 PROTECTION CAP F . STARTER ENG.PROTECTION CAP F . STARTER ENG.
-
2158411059100 STARTER CABLE 700 MMSTARTER CABLE 700 MM
-
2258211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
2358011109120 FUSE 20 AFUSE 20 A
-
2461111057000 RELAY CM1A-R-12V -H80RELAY CM1A-R-12V -H80
-
2558711086000 WIRING HARNESS BATTERYWIRING HARNESS BATTERY
-
2677311053000 BATTERY 12V 3AH YTX4L-BSBATTERY 12V 3AH YTX4L-BS
-
2750303018000 RUBBER L=145MMRUBBER L=145MM
-
2877211055000 BATTERY BOXBATTERY BOX
-
290017060205 SCREW FOR PLASTIC K60X20 SW6SCREW FOR PLASTIC K60X20 SW6
-
300902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
