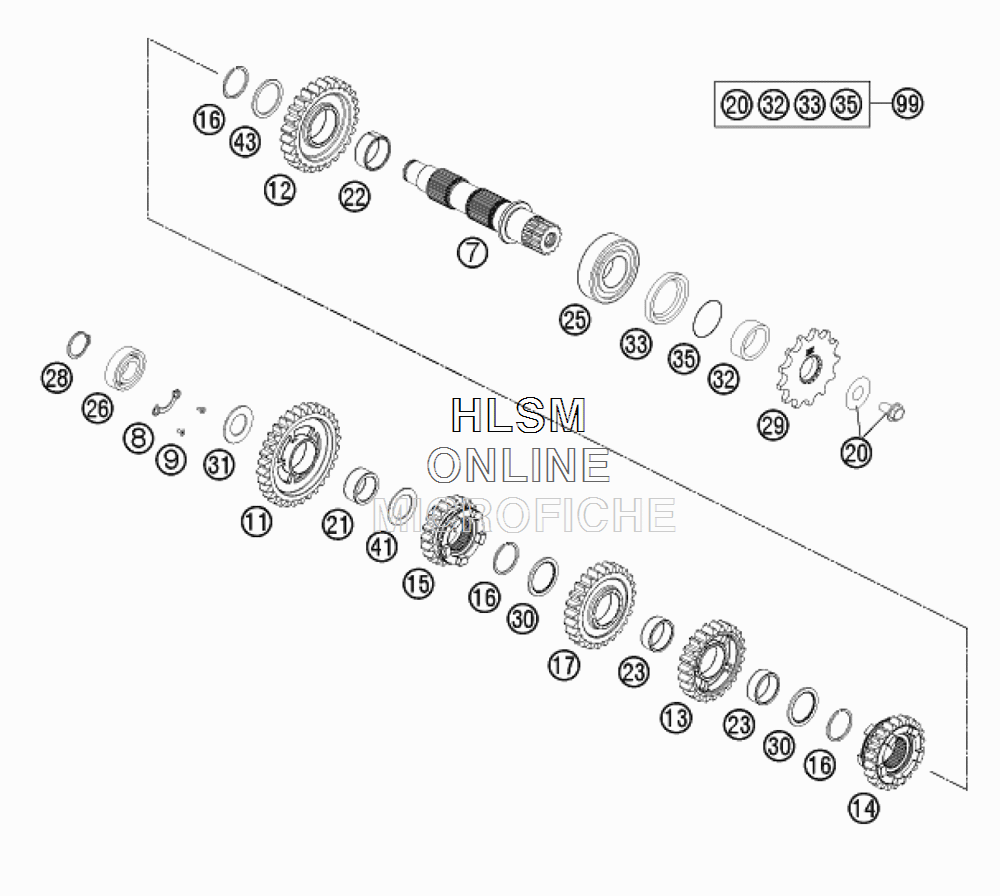

TRANSMISSION - COUNTERSHAFT для Ktm 350 XCF-W - 2015 года выпуска
-
№АртикулНазвание
-
777233110000 COUNTERSHAFTCOUNTERSHAFT
-
878033132000 TAB WASHER BEARING COUNT.SHAFTTAB WASHER BEARING COUNT.SHAFT
-
90019050106S INT. TORX FLAT HEAD M5X10 10.9INT. TORX FLAT HEAD M5X10 10.9
-
1154833211000 IDLER GEAR 1. G, Z=32IDLER GEAR 1. G, Z=32
-
1254833212000 IDLER GEAR 2. G., Z=26IDLER GEAR 2. G., Z=26
-
1354833214000 IDLER GEAR 4.G., Z=23IDLER GEAR 4.G., Z=23
-
1454833215000 SLIDING GEAR 5.G., Z=22SLIDING GEAR 5.G., Z=22
-
1554833216000 SLIDING GEAR 6.G., Z=20SLIDING GEAR 6.G., Z=20
-
160417024000 CIRCLIP WS24CIRCLIP WS24
-
1754833213000 IDLER GEAR 3.G., Z= 25IDLER GEAR 3.G., Z= 25
-
2059033034044 SCREW 10.9+SPRING WASHERSCREW 10.9+SPRING WASHER
-
210405202612 NEEDLE BEARING K 20X26X12NEEDLE BEARING K 20X26X12
-
220405242812 NEDDLE BEAR. K24X28X11,9 DIV .NEDDLE BEAR. K24X28X11,9 DIV .
-
230405222611 NEEDLE BEAR.K 22X26X10 DIVIDEDNEEDLE BEAR.K 22X26X10 DIVIDED
-
2549030023000 CYL.ROLL BEARING NJ205CYL.ROLL BEARING NJ205
-
260625062035 BALL BEARING 6203 JR2 C3BALL BEARING 6203 JR2 C3
-
280471170015 CIRCLIP DIN 0471-17X1, 5CIRCLIP DIN 0471-17X1, 5
-
2950033029013 FRONT SPROCKET 13-TFRONT SPROCKET 13-T
-
2950033029014 FRONT SPROCKET 14-TFRONT SPROCKET 14-T
-
3054833043000 STOP DISC 25X0,8X30X30X7 HSTOP DISC 25X0,8X30X30X7 H
-
3177233020000 STOP DISK 17,2X30X1,3STOP DISK 17,2X30X1,3
-
3254633014100 SPACER BUSHING 12MMSPACER BUSHING 12MM
-
330760324571 SHAFT SEAL RING 32X45X7 BSLNBRSHAFT SEAL RING 32X45X7 BSLNBR
-
350770020220 O-RING 25,12X1,78 NBR70O-RING 25,12X1,78 NBR70
-
4154833080000 STOP DISC 20,2X30X1STOP DISC 20,2X30X1
-
4354833044000 STOP DISC 25X31X1,5STOP DISC 25X31X1,5
-
9900050000941 COUNTERSHAFT REP .KIT 4 STROKECOUNTERSHAFT REP .KIT 4 STROKE
